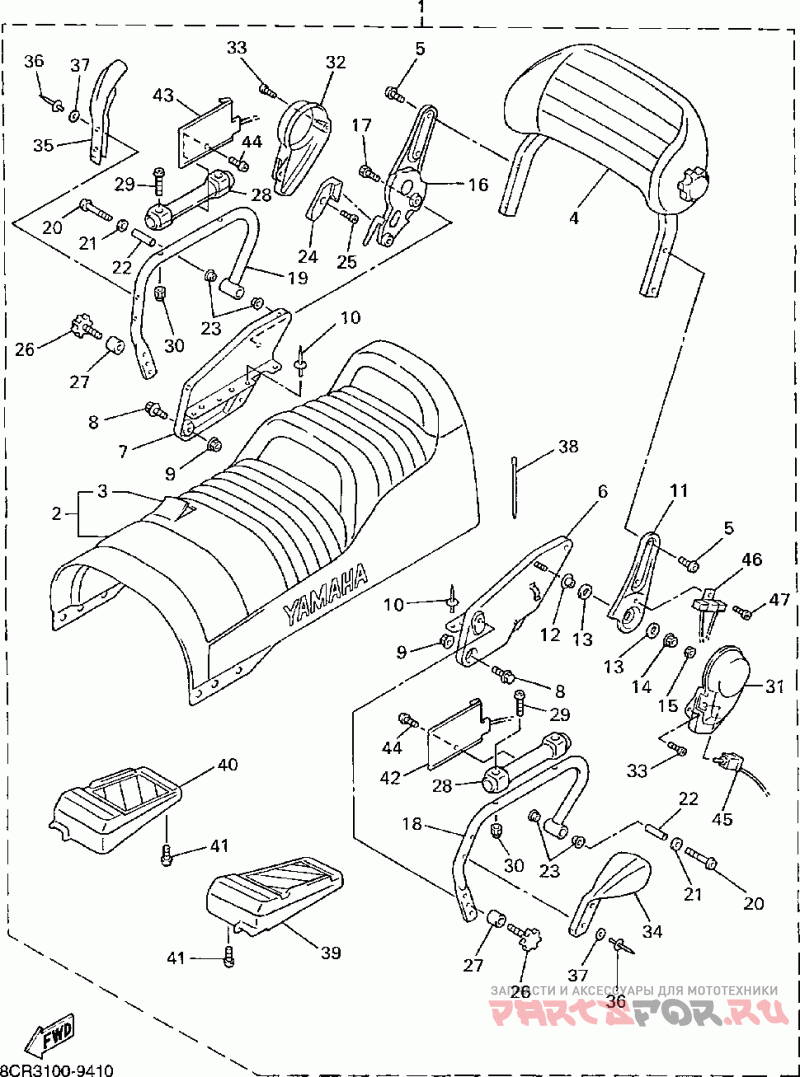

Alternate semi double seat vt

Yamaha V-MAX 500-VT500C/VX500ERC

Yamaha
#oem кодцена
1
8CR-W247R-10-00
Deluxe 2-up Seat Ass Vt500c Ap
2
8CW-24730-20-00
Double Seat Assy Vt500c
3
8CW-2470F-20-00
Cover, Seat Vt500c
4
8DM-24790-00-00
Seat Back Assy Vt500c
5
92017-10016-00
Bolt, Button Head Vt500c
6
8DM-2474F-00-00
Stay, Front 1 Vt500c
7
8DM-2474G-00-00
Stay, Front 2 Vt500c
8
95817-08014-00
Bolt, Flange Vt500c
9
95707-08500-00
Nut, Flange (jn5) Vt500c
10
90267-47187-00
Rivet, Blind Vt500c
11
8DM-2477R-00-00
Arm 2 Vt500c
12
90387-083Y8-00
Collar Vt500c
13
90202-12236-00
Washer, Plate Vt500c
15
95317-08700-00
Nut, Hex Small Vt500c
16
8DM-24760-00-00
Seat Lever Assy Vt500c
17
97027-10014-00
Bolt Vt500c
18
8DM-2474H-10-00
Bracket, Assist Gr Vt500c
19
8DM-2474J-10-00
Bracket, Assist Gr Vt500c
20
92017-10070-00
Bolt, Button Head Vt500c
21
90201-105R9-00
Washer, Plate Vt500c
22
90387-10090-00
Collar Vt500c
23
90387-145G7-00
Collar Vt500c
24
8DM-2477F-00-00
Lever, Seat Vt500c
25
97707-40008-00
Screw, Tapping Vt500c
26
8CW-2479H-00-00
Body, Seat Lock Vt500c
27
8CW-24737-00-00
Damper, Seat Vt500c
28
8DM-2474A-00-00
Assist, Grip Vt500c
29
98907-06035-00
Bolt, Socket Vt500c
30
90176-06065-00
Nut, Crown Vt500c
31
8DM-24796-00-00
Cover Vt500c
32
8DM-2475X-00-00
Cover, 2 Vt500c
33
97707-40012-00
Screw, Truss Vt500c
34
8DM-2476U-00-00
Protector, 1 Vt500c
35
8DM-2476V-00-00
Protector, 2 Vt500c
36
90267-48051-00
Rivet, Blind Vt500c
37
90201-051K1-00
Washer, Plain (3gd) Vt500c
38
90464-15195-00
Clamp Vt500c
39
8DM-27431-02-00
Footrest, Rear 1 Vt500c
40
8DM-27441-02-00
Footrest, Rear 2 Vt500c
41
90167-05078-00
Screw, Tapping Vt500c
42
8DM-2474B-00-00
Assist Grip Warmer Vt500c
43
8DM-2474C-00-00
Assist Grip Warmer Vt500c
44
97707-40016-00
Screw, Truss Vt500c
45
8DM-82917-01-00
Seat Switch Vt500c
46
8DM-85370-00-00
Resistor Assy Vt500c
47
98907-06012-00
Bolt, Socket Vt500c
