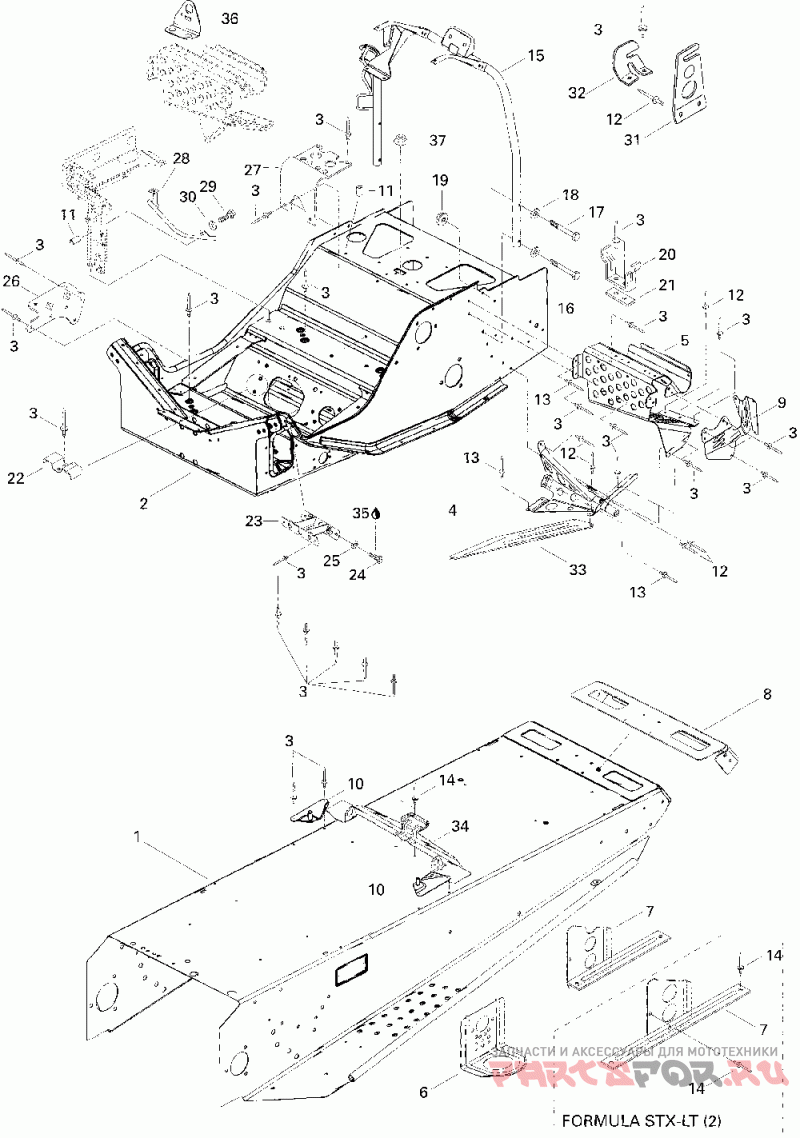

09- frame and components stx

Ski-Doo (Bombardier) Formula STX

Ski-Doo (Bombardier)
#oem кодцена
1
518313241
Tunnel *frame-forming
3
390402200
Заклепка 3/16
4
518320507
Support Gauche *lh.support
4
518320506
Support Droit *rh.support
5
518312906
Repose-pied Dr.*footrest-rh
5
518312907
Repose-pied Ga.*footrest-lh
6
518321495
Attache Avant *bracket-front
7
518312925
Att.arr.ga.sou.*brkt-rr Lh Weld
7
518312926
Att.arr.dr.sou.*brkt-rr Rh Weld
8
518321301
Capuchon Arr. *cap-rear
9
518312908
Plaque Lat. Ga.*plate-side Lh
9
518312909
Plaque Lat. Dr.*plate-side Rh
10
518304735
Att.reserv.dr.s*brkt-tank Rh Weld
10
518304736
Att.reserv.ga.s*brkt-tank Lh Weld
11
415080200
Шланг
12
390909200
Заклепка
13
390909100
Заклепка
14
390402400
Заклепка 3/16
15
518304743
Supp.guidon Sou*supp-hand.weld
16
207064044
Винт
17
207063544
Винт
18
234061410
Шайба
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518322635
Support Silenc.*support-muffler
27
518310400
Supp.silenc.adm*supp-air Intake
28
517274800
Guide Corde Sou*guide-rope Weld.
29
207161644
Винт
30
234161471
Шайба
31
517252000
Attache Ext. *bracket-outer
32
518310209
Attache Inter. *bracket-inner
33
518316709
Plaque Renf.dr.*plate-reinf.rh
33
518321959
Plaque Renf.ga.*plate-reinf.lh
34
518310208
Attache Siege *bracket-seat
35
293800005
Смазка Loctite 271
36
518310206
Attache Soup.ar*brkt.-valve
37
414859400
Крышка
