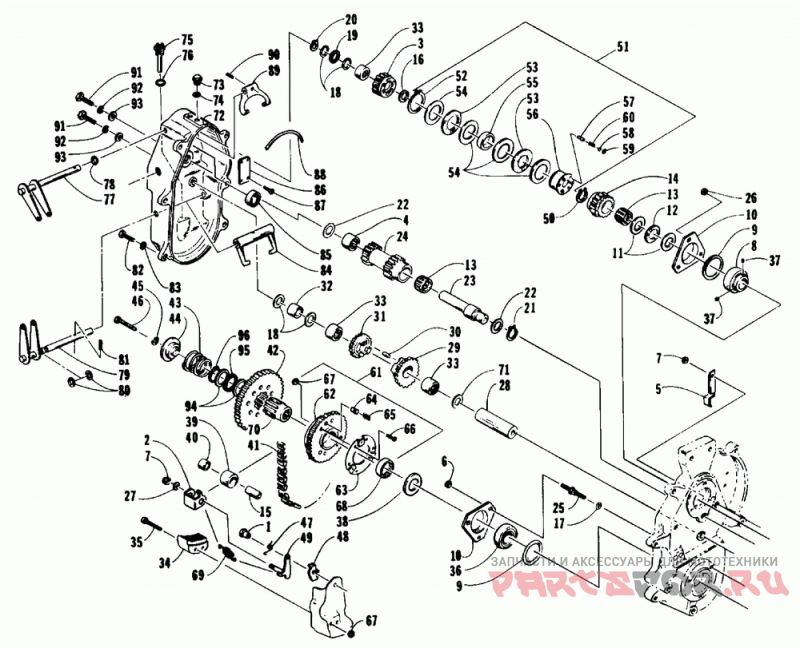

2 speed dropcase assembly

Arctic Cat CHEETAH 440 2-SPEED

Arctic Cat
#oem кодцена
1
0602-405
Bushing, Hex Head-tightener Arm
1
0602-405
Bushing, Hex Head-tightener Arm
2
0602-390
Bracket, Chain Roller
2
0602-390
Bracket, Chain Roller
3
0702-146
Gear 19t-primary Drive Assy
3
0702-146
Gear 19t-primary Drive Assy
4
0602-204
Bearing, Dc-.750 Id X .75
4
0602-204
Bearing, Dc-.750 Id X .75
5
0702-553
Bracket, Chain Backing-weldt(0602-466)
5
0702-553
Bracket, Chain Backing-weldt(0602-466)
6
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
7
0623-122
Nut , Flex Lock-thin 1/4-20 (5 Per Pack)
7
0623-122
Nut , Flex Lock-thin 1/4-20 (5 Per Pack)
8
0602-355
Bearing, .875 W/locking Hex Set Screws
8
0602-355
Bearing, .875 W/locking Hex Set Screws
9
0107-003
Seal, O Ring .093 (2 Per Pack)
9
0107-003
Seal, O Ring .093 (2 Per Pack)
10
0602-198
Пластина (треугольник)
10
0602-198
Пластина (треугольник)
11
0602-217
Washer, Thrust .875idx.060
11
0602-217
Washer, Thrust .875idx.060
13
0602-205
Bearing, Caged-.875 X 1.00
13
0602-205
Bearing, Caged-.875 X 1.00
14
0602-470
Sprocket, Drive-19t-3/8x.520/gear 23t
14
0602-470
Sprocket, Drive-19t-3/8x.520/gear 23t
15
0602-398
Ось
15
0602-398
Ось
16
0602-214
Washer, Thrust .625idx.060
16
0602-214
Washer, Thrust .625idx.060
17
0607-025
O-ring, Stud (5 Per Pack)
17
0607-025
O-ring, Stud (5 Per Pack)
18
0602-215
Шайба опорная .625 Id X.030 X 1.10
18
0602-215
Шайба опорная .625 Id X.030 X 1.10
19
0602-208
Bearing, Thrust .625 Id
19
0602-208
Bearing, Thrust .625 Id
20
0623-237
Snap Ring, Extl-5/8 Dia (3 Per Pack)
20
0623-237
Snap Ring, Extl-5/8 Dia (3 Per Pack)
21
0623-238
Snap Ring, Extl-3/4 Dia (3 Per Pack)
21
0623-238
Snap Ring, Extl-3/4 Dia (3 Per Pack)
22
0602-216
Washer, Thrust .750idx.030 (2 Per Pack)
22
0602-216
Washer, Thrust .750idx.030 (2 Per Pack)
23
0602-418
Shaft, Idler 16t/20t Gear Transfer
23
0602-418
Shaft, Idler 16t/20t Gear Transfer
24
0702-145
Gear, Assy-16t/20t Transfer
24
0702-145
Gear, Assy-16t/20t Transfer
25
0623-317
Stud, 5/16-18 Ribbed-dropcase (5 Per Pack)
25
0623-317
Stud, 5/16-18 Ribbed-dropcase (5 Per Pack)
26
8041-426
Nut, Hex Thin Lock-nyl 5/16-18 Z&y (10 Per Pack)
26
8041-426
Nut, Hex Thin Lock-nyl 5/16-18 Z&y (10 Per Pack)
27
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
27
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
28
0602-189
Shaft, Reverse Idler
28
0602-189
Shaft, Reverse Idler
29
0702-247
Sprocket 24t Idler-assy
29
0702-247
Sprocket 24t Idler-assy
30
0602-704
Pin, Aligning-idler Gear
30
0602-704
Pin, Aligning-idler Gear
31
1639-558
Kit, 19t Idler Gear Replace
31
1639-558
Kit, 19t Idler Gear Replace
32
0602-695
Spacer, Reverse-idler
32
0602-695
Spacer, Reverse-idler
33
0602-018
Подшипник
33
0602-018
Подшипник
34
0602-561
Block, Ratchet-chain Adjuster-machined
34
0602-561
Block, Ratchet-chain Adjuster-machined
35
8006-406
Screw, Cap-hsh 10-32x1.75 Z&y (5 Per Pack)
35
8006-406
Screw, Cap-hsh 10-32x1.75 Z&y (5 Per Pack)
36
1702-179
Подшипник
36
1702-179
Подшипник
37
0623-216
Screw, Set 1/4-28x.25 Type G (5 Per Pack)
37
0623-216
Screw, Set 1/4-28x.25 Type G (5 Per Pack)
38
0602-012
Шайба
38
0602-012
Шайба
39
0702-129
Roller Assy-chain Tightener
40
0602-383
Подшипник
40
0602-383
Подшипник
41
1602-041
Цепь 70 звеньев-13 пластин
41
1602-041
Цепь 70 звеньев-13 пластин
42
0702-048
Gear, 55t Reverse-assy
42
0702-048
Gear, 55t Reverse-assy
43
0602-028
Пружина
43
0602-028
Пружина
44
1602-047
Retainer, Extension Shaft
44
1602-047
Retainer, Extension Shaft
45
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
46
8002-231
Screw, Cap-hh 3/8-16 X3.00 G5 Z&y (5 Per Pack)
46
8002-231
Screw, Cap-hh 3/8-16 X3.00 G5 Z&y (5 Per Pack)
47
0602-403
Spring, Torsion-chain Tightener
47
0602-403
Spring, Torsion-chain Tightener
48
0602-404
Bracket, Spring-chain Roller
48
0602-404
Bracket, Spring-chain Roller
49
0702-220
Arm, Tightener-weld't
49
0702-220
Arm, Tightener-weld't
50
0623-272
Snap Ring, Extl(inverted)-7/8 Dia
50
0623-272
Snap Ring, Extl(inverted)-7/8 Dia
51
0702-143
Engagement Assy-top
52
0623-146
Snap Ring, Extl-2.125 Dia (3 Per Pack)
52
0623-146
Snap Ring, Extl-2.125 Dia (3 Per Pack)
53
0602-212
Bearing, Thrust 2.125 Id
53
0602-212
Bearing, Thrust 2.125 Id
54
0602-219
Washer, Thrust 2.125idx.060
54
0602-219
Washer, Thrust 2.125idx.060
55
0602-277
Spacer, Thrust Bearing
55
0602-277
Spacer, Thrust Bearing
56
0602-410
Housing, Engagement Pins
56
0602-410
Housing, Engagement Pins
57
0602-424
Pin, Slip - 2-speed (3 Per Pack)
57
0602-424
Pin, Slip - 2-speed (3 Per Pack)
58
0602-182
Plug, Retainer-pin Spring (6 Per Pack)
58
0602-182
Plug, Retainer-pin Spring (6 Per Pack)
59
0602-201
Snap Ring, Internal-.375 Dia. (3 Per Pack)
59
0602-201
Snap Ring, Internal-.375 Dia. (3 Per Pack)
60
0602-202
Spring, Compression (3 Per Pack)
60
0602-202
Spring, Compression (3 Per Pack)
61
0702-170
Sprocket, 39t-assy
61
0702-170
Sprocket, 39t-assy
63
0602-144
Держатель пружинок
63
0602-144
Держатель пружинок
64
0602-133
Палец пружины
64
0602-133
Палец пружины
65
0602-138
Пружина
65
0602-138
Пружина
66
0623-182
Screw, Cap-hsbh 10-32 X .875 (6 Per Pack)
66
0623-182
Screw, Cap-hsbh 10-32 X .875 (6 Per Pack)
67
0123-430
Nut, Flex, Lock 10-32 (5 Per Pack)
68
0602-016
Подшипник
68
0602-016
Подшипник
69
0602-397
Spring, Chain Tightener-extension
69
0602-397
Spring, Chain Tightener-extension
70
1602-048
Вал
71
0123-439
Wshr, Flat 21/32x1-1/8x.048 Z&y (10 Per Pack)
71
0123-439
Wshr, Flat 21/32x1-1/8x.048 Z&y (10 Per Pack)
72
0702-192
Cover, Dropcase-rev/2spd- W/bearing
72
0702-192
Cover, Dropcase-rev/2spd- W/bearing
73
0623-293
Штепсель, Дренажный
73
0623-293
Штепсель, Дренажный
74
0123-641
Washer, Fiber-1/2x13/16x.030 (10 Per Pack)
74
0123-641
Washer, Fiber-1/2x13/16x.030 (10 Per Pack)
75
0602-463
Stick, Check-oil Level
75
0602-463
Stick, Check-oil Level
76
0670-183
Уплотнительное кольцо 5/8х13/16
76
0670-183
Уплотнительное кольцо 5/8х13/16
77
0702-242
Shaft, Shift Fork 2 Spd Weld, T
77
0702-242
Shaft, Shift Fork 2 Spd Weld, T
78
0670-025
Tank, Oil 87jag
78
0670-025
Tank, Oil 87jag
79
0702-243
Shaft, Shift Fork Rev Weld.t
79
0702-243
Shaft, Shift Fork Rev Weld.t
80
0602-021
Уплотнительное кольцо
80
0602-021
Уплотнительное кольцо
81
0623-542
Pin, Spring-3/16 X 7/8 Coiled Blk (5 Per Pack)
81
0623-542
Pin, Spring-3/16 X 7/8 Coiled Blk (5 Per Pack)
82
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
82
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
83
8053-242
Шайба (10 шт в упаковке)
83
8053-242
Шайба (10 шт в упаковке)
84
0602-085
Вилка
84
0602-085
Вилка
85
0602-206
Bearing, Ball .625 Id
85
0602-206
Bearing, Ball .625 Id
86
0602-221
Cover, Oil Vent-dropcase Cover
86
0602-221
Cover, Oil Vent-dropcase Cover
87
0623-081
Screw, Self Tap-phpnh 8-32x.31 F Z&y (6 Per Pack)
87
0623-081
Screw, Self Tap-phpnh 8-32x.31 F Z&y (6 Per Pack)
88
0602-437
O-ring, Dropcase Cover (2 Per Pack)
88
0602-437
O-ring, Dropcase Cover (2 Per Pack)
89
0602-184
Fork, Shift-mach-2 Speed
89
0602-184
Fork, Shift-mach-2 Speed
90
8070-309
Pin, Spring-3/16 X 11/16 Slotted P&o (5 Per Pack)
90
8070-309
Pin, Spring-3/16 X 11/16 Slotted P&o (5 Per Pack)
91
8002-134
Screw, Cap-hh 5/16-18 X1.25 G5 Z&y (5 Per Pack)
91
8002-134
Screw, Cap-hh 5/16-18 X1.25 G5 Z&y (5 Per Pack)
92
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
92
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
93
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
93
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
94
0602-023
Шайба опорная 2,25
94
0602-023
Шайба опорная 2,25
95
0602-022
Подшипник опорный
95
0602-022
Подшипник опорный
96
0602-024
Стопорное кольцо
96
0602-024
Стопорное кольцо
