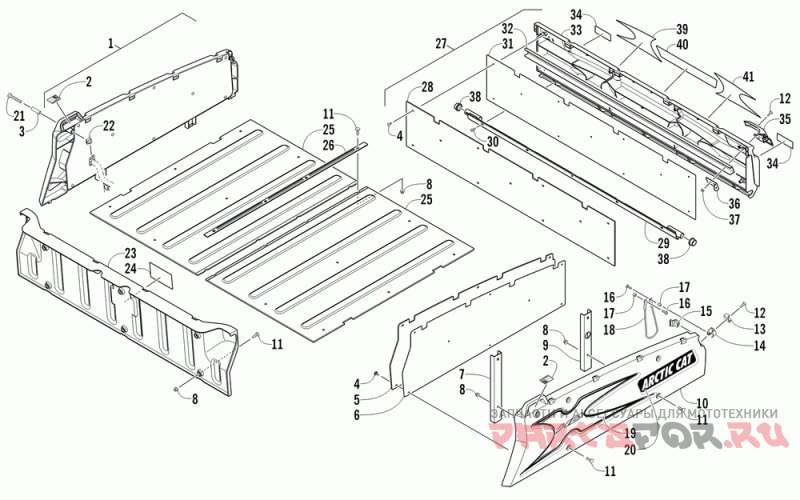

Cargo box and tailgate assembly

Arctic Cat Prowler HDX

Arctic Cat
#oem кодцена
1
4506-522
Деталь Cargo Box, Rh Side-assy (inc. 2-15)
1
4506-523
Деталь Cargo Box, Lh Side-assy (inc. 2-15)
2
2411-294
Деталь Decal, Warning-box
3
2416-368
Деталь Tube, Spacer (2 Per Pack)
4
1423-011
Деталь Screw, Tstrh Self Tap#10 X 3/4 4037a Rie (8 Per Pack)
5
4506-524
Деталь Panel, Inner-cargo Box-ptd
6
2416-647
Деталь Pad, Foam-side Panel
7
4506-154
Деталь Bracket, Side Mount-rear-weldment
8
8427-802
Гайка M8x1.25
9
4506-153
Деталь Bracket, Side Mount-front-weldment
10
2416-392
Деталь Panel, Side-rh
10
2416-393
Деталь Panel, Side-lh
11
0423-623
Деталь Bolt, Crg-m8-1.25x30-blk Rie (4 Per Pack)
12
1423-038
Деталь Screw, Mach-tstrh M6x1.0x20 4037a Rie (5 Per Pack)
13
2516-710
Деталь Bracket, Latch - Ptd Black
14
2416-379
Деталь Bracket, Latch
15
2416-390
Деталь Pad, Tailgate-rh (4 Per Pack)
15
2416-391
Деталь Pad, Tailgate-lh (4 Per Pack)
16
8470-520
Деталь Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
17
1423-009
Деталь Spacer, Tailgate Cable (4 Per Pack)
18
0487-080
Деталь Cable, Tailgate-hdx
19
2411-812
Деталь Decal, Box-side-egm-rh (hdx) (1pusn/1posn)
19
2411-813
Деталь Decal, Box-side-egm-lh (hdx) (1pusn/1posn)
19
2411-814
Деталь Decal, Box-side-tm-rh (hdx) (1puss/1poss)
19
2411-815
Деталь Decal, Box-side-tm-lh (hdx) (1puss/1poss)
19
2411-822
Деталь Decal, Box-side-camo-rh (hdx) (1push/1posh)
19
2411-823
Деталь Decal, Box-side-camo-lh (hdx) (1push/1posh)
20
2411-208
Деталь Decal, Side-rr-rh (arctic Cat) (1pusn/1posn/1puss/1poss)
20
2411-209
Деталь Decal, Side-rr-lh (arctic Cat) (1pusn/1posn/1puss/1poss)
20
2411-244
Деталь Decal, Side-rr-rh (camo) (arctic Cat) (1push/1posh)
20
2411-245
Деталь Decal, Side-rr-lh (camo) (arctic Cat) (1push/1posh)
21
1423-010
Деталь Screw, Tspnh M10x1.25x70 4037a Rie (2 Per Pack)
22
2416-378
Деталь Clip, Side Panel Mounting (2 Per Pack)
23
2416-394
Панель передняя
24
2411-229
Деталь Decal, Warning-cargo Box (1000#)
25
2416-396
Деталь Panel, Cargo Box-bed
26
2516-871
Деталь Strip, Box Bot Center-ptd Black
27
4506-589
Деталь Tailgate-assembly (inc. 28-37)
28
4506-526
Деталь Panel, Inner-tailgate-ptd
29
4506-626
Деталь Pivot, Tailgate-ptd Black
30
1423-083
Деталь Screw, Tsph 1/4-10 X 1-1/4 Plastite 4037 (5 Per Pack)
31
2416-648
Деталь Pad, Foam-tailgate
32
2416-652
Деталь Support, Tailgate
33
2416-395
Деталь Panel, Tailgate
34
2411-182
Деталь Reflector, Rear-hdx (2 Per Pack)
35
2516-729
Деталь Latch, Tailgate - Ptd Black
36
2416-370
Деталь Bracket, Latch Support (2 Per Pack)
37
8424-602
Гайка (отпускается по 4 шт)
38
2416-363
Деталь Bushing, Tailgate Pivot (2 Per Pack)
39
2411-834
Деталь Decal, Tailgate-egm-rh (1pusn/1posn)
39
2411-832
Деталь Decal, Tailgate-tm-rh (1puss/1poss)
39
2411-836
Деталь Decal, Tailgate-camo-rh (1push/1posh)
40
2411-212
Деталь Decal, Tailgate-center (arctic Cat) (1pusn/1posn/1puss/1poss)
40
2411-237
Деталь Decal, Tailgate-ctr (camo) (arctic Cat) (1push/1posh)
41
2411-835
Деталь Decal, Tailgate-egm-lh (1pusn/1posn)
41
2411-833
Деталь Decal, Tailgate-tm-lh (1puss/1poss)
41
2411-837
Деталь Decal, Tailgate-camo-lh (1push/1posh)
