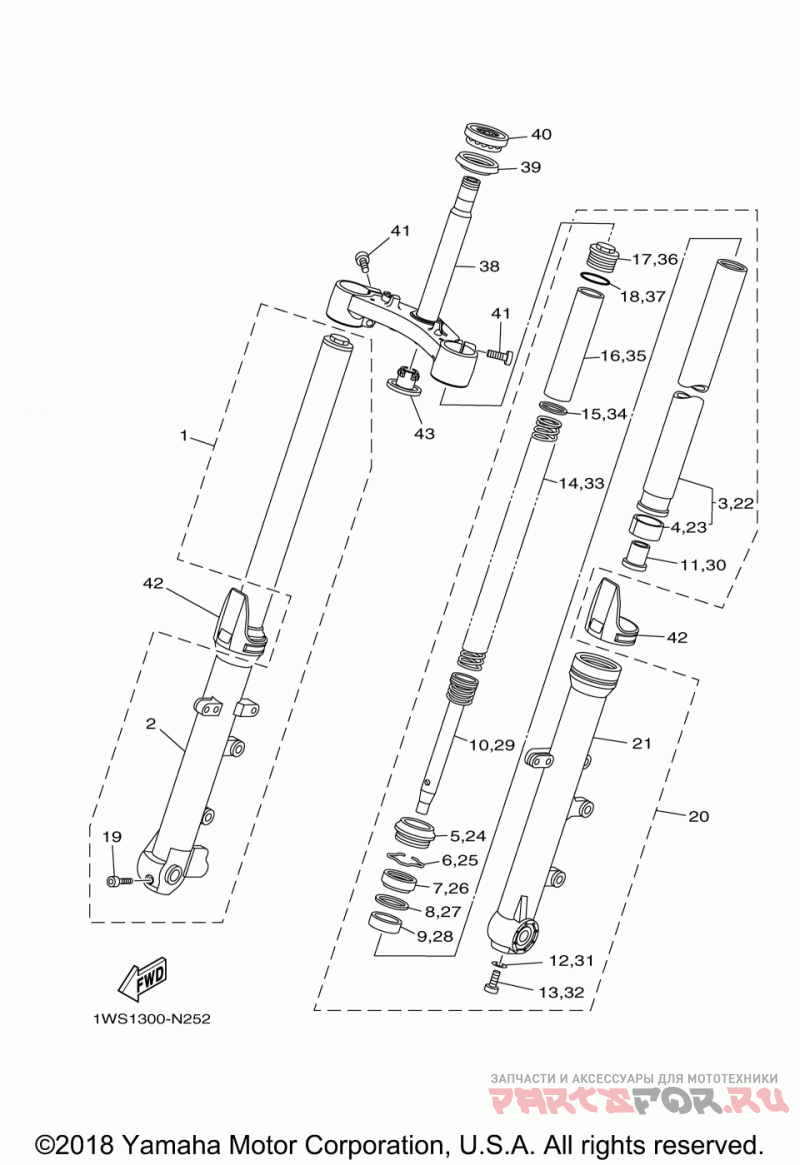

Передняя вилка

Yamaha (Америка) FZ07 ABS (FZ07AHR/FZ07AHCR)

Yamaha (Америка)
#oem кодцена
1
1XB-23103-01-00
FRONT FORK ASSY (R.H)
2
1XB-23136-01-00
. .TUBE, OUTER 2
3
1WS-23110-00-00
. INNER TUBE COMP. 1
4
5BN-23171-00-00
. . ..PISTON, FRONT FORK
5
4EB-23144-00-00
. SEAL, DUST
6
26H-23156-00-00
. .RING, SNAP
7
4EB-23145-01-00
. OIL SEAL
8
36Y-23146-10-00
. .WASHER, OIL SEAL
9
4FM-23125-40-00
. .METAL, SLIDE 1
10
1WS-23170-00-00
. .CYLINDER COMP., FRONT FORK
11
4YR-23173-00-00
. .SPINDLE, TAPER
12
509-23158-L0-00
. .GASKET
13
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
14
1WS-23141-00-00
. .SPRING, FRONT FORK
15
3EN-23149-50-00
. .WASHER, SPRING UPPER
16
3FW-23118-00-00
. .SPACER
17
1D0-23111-00-00
. .BOLT, CAP
18
43F-23188-10-00
. .O-RING
19
91314-08040-00
. .BOLT, HEXAGON SOCKET HEAD
20
1WS-23102-01-00
FRONT FORK ASSY (L.H)
21
1WS-23126-01-00
. .TUBE, OUTER (L.H)
22
1WS-23110-00-00
. INNER TUBE COMP. 1
23
5BN-23171-00-00
. . ..PISTON, FRONT FORK
24
4EB-23144-00-00
. SEAL, DUST
25
26H-23156-00-00
. .RING, SNAP
26
4EB-23145-01-00
. OIL SEAL
27
36Y-23146-10-00
. .WASHER, OIL SEAL
28
4FM-23125-40-00
. .METAL, SLIDE 1
29
1WS-23170-00-00
. .CYLINDER COMP., FRONT FORK
30
4YR-23173-00-00
. .SPINDLE, TAPER
31
509-23158-L0-00
. .GASKET
32
3D8-23181-00-00
. .BOLT, HEXAGON SOCKET HEAD
33
1WS-23141-00-00
. .SPRING, FRONT FORK
34
3EN-23149-50-00
. .WASHER, SPRING UPPER
35
3FW-23118-00-00
. .SPACER
36
1D0-23111-00-00
. .BOLT, CAP
37
43F-23188-10-00
. .O-RING
38
1WS-23340-00-00
Нижний кронштейн
39
3FV-23462-00-00
Изолирующая деталь
40
93399-99932-00
Подшипник
41
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
42
1WS-2331G-00-00
Крышка
43
4KM-23123-01-00
COVER, UNDER 1
44
4EB-W003B-00-00
FORK SEAL KIT
