Frame comp для мотоциклов Suzuki SV1000 (2006)

Москва и регионы России

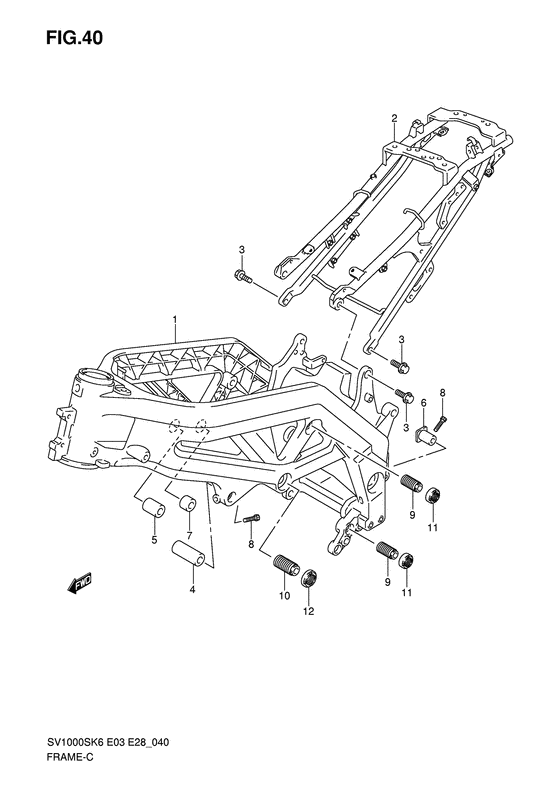

Frame comp

Suzuki SV1000

Frame comp

Frame comp

1

1

2

3

3

3

4

5

6

7

8

8

9

9

10

11

11

12

#

oem код

название

цена

1

41100-16G20-YAP

FRAME(BLACK)

FRAME(BLACK)

Frame (black); Sv1000s

1

41100-16G11-YAP

FRAME(BLACK)

FRAME(BLACK)

Frame (black); Sv1000k6 e33

2

41200-16G31-YAP

RAIL,SEAT(BLACK)

RAIL,SEAT(BLACK)

Rail, seat (black);

3

41233-18G20-000

BOLT,SEAT RAIL

BOLT,SEAT RAIL

замена

41233-18G00-000

Bolt, seat rail

Bolt, seat rail

Bolt, seat rail lower rh;

4

41198-02F00-000

SPACER,ENG HEAD MTG FR,L

SPACER,ENG HEAD MTG FR,L

Spacer, head front lh Spacer, engine head front lh;

5

41941-02F00-000

SPACER,ENG HEAD MTG RR,R

SPACER,ENG HEAD MTG RR,R

Spacer, engine head rear rh

6

41941-19F01-000

SPACER,MOUNTING RR UPR,R

SPACER,MOUNTING RR UPR,R

Spacer, adjuster upper Spacer, crankcase upper;

7

41942-16G00-000

Spacer, head center rh

Spacer, head center rh

8

09106-08170-000

Болт

Болт

Bolt, spacer;

9

41921-16G00-000

BOLT,CASE LWR & RR HEAD ADJ

BOLT,CASE LWR & RR HEAD ADJ

Bolt, adjuster lower Bolt, rear head adjust;

10

41923-16G00-000

BOLT,CRANK CASE ADJUST CTR

BOLT,CRANK CASE ADJUST CTR

Bolt, adjuster center Bolt, crankcase adjust;

11

41922-33E00-000

NUT,CRANK CASE ADJUST BOLT

NUT,CRANK CASE ADJUST BOLT

Nut, adjuster lower Nut, rear head adjust;

12

41922-19F20-000

NUT,CRANK CASE ADJUST CTR

NUT,CRANK CASE ADJUST CTR

замена

41922-19F00-000

Nut, crankcase adjust

Nut, crankcase adjust

Nut, adjuster center Nut, crankcase adjust;
