Secondary drive gear для мотоциклов Suzuki (Америка) VL1500,C90 (2019)

Москва и регионы России

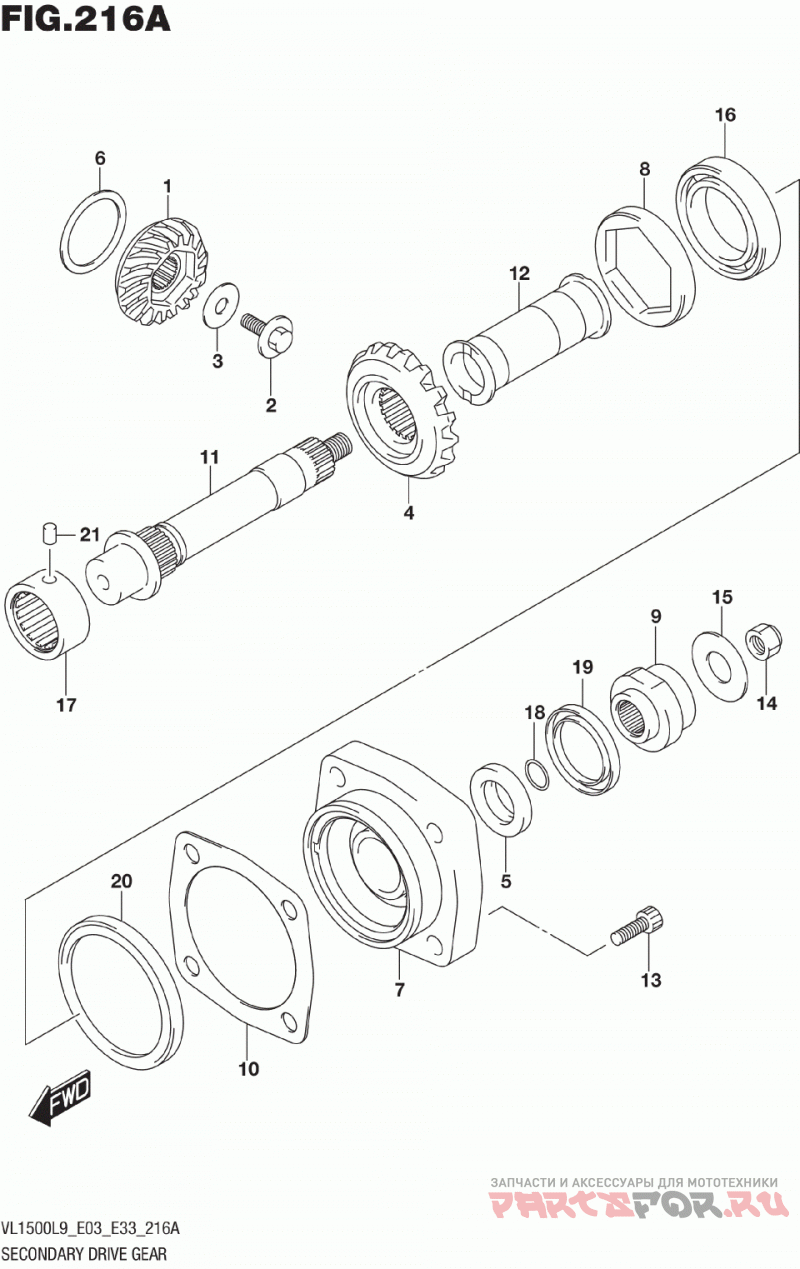

Secondary drive gear

Suzuki (Америка) VL1500,C90

Secondary drive gear

#

oem код

название

цена

1

GEAR, SECONDARY DRIVE (NT:17)

GEAR, SECONDARY DRIVE (NT:17)

2

BOLT, SECONDARY DRIVE GEAR

BOLT, SECONDARY DRIVE GEAR

4

GEAR, SECONDARY DRIVEN (NT:20

GEAR, SECONDARY DRIVEN (NT:20

5

SPACER, SECONDARY SHAFT

SPACER, SECONDARY SHAFT

6

SHIM SET, SECONDARY DRIVE (T:0.80/0.85/0.90/0.95/1.00/ 1.05/1.10/1.15/1.20)

SHIM SET, SECONDARY DRIVE (T:0.80/0.85/0.90/0.95/1.00/ 1.05/1.10/1.15/1.20)

7

HOUSING, SEC DRIVEN BEARING

HOUSING, SEC DRIVEN BEARING

8

STOPPER, SEC DRIVEN BEARING

STOPPER, SEC DRIVEN BEARING

9

COUPLING, SEC DRIVEN BEVEL

COUPLING, SEC DRIVEN BEVEL

10

SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)

SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)

11

SHAFT, SECONDARY DRIVEN BEVEL

SHAFT, SECONDARY DRIVEN BEVEL

12

SPACER, SECONDARY DRIVEN BEVE

SPACER, SECONDARY DRIVEN BEVE

13

Болт (10x30)

Болт (10x30)

14

Гайка

Гайка

15

WASHER (16.5X36X4)

WASHER (16.5X36X4)

16

BEARING (28X68X18) (REAR)

BEARING (28X68X18) (REAR)

17

BEARING (32X50X22) (FRONT)

BEARING (32X50X22) (FRONT)

18

O RING (D:2.4,ID:24.7)

O RING (D:2.4,ID:24.7)

19

OIL SEAL (38X54X6)

OIL SEAL (38X54X6)

20

OIL SEAL (76X84X7)

OIL SEAL (76X84X7)

21

PIN (7X12)

PIN (7X12)
