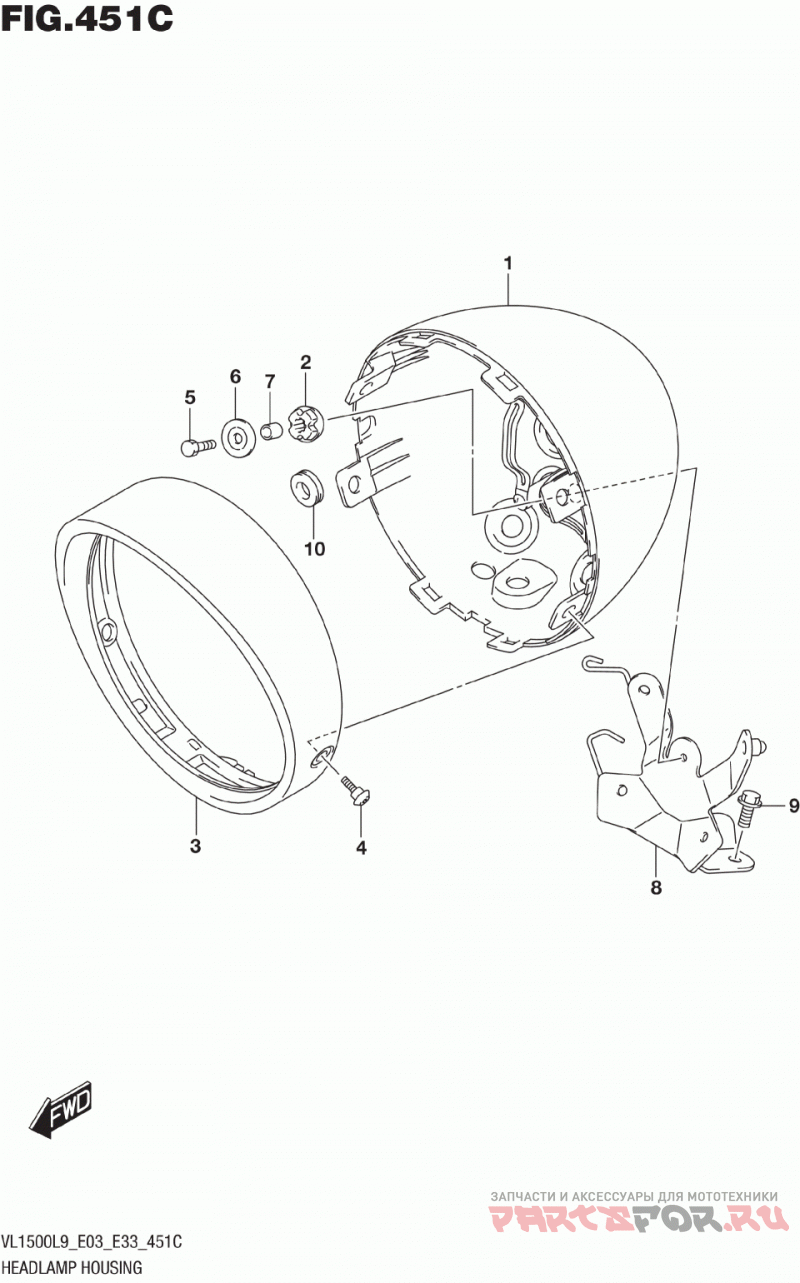

Headlamp housing (vl1500tl9 e03)
Suzuki (Америка) VL1500,C90
| # | oem код | название | цена |
|---|---|---|---|
1 | 51811-06J00 HOUSING, HEADLAMP | HOUSING, HEADLAMP | |
2 | 09320-09010 Подушка | Подушка | |
3 | 51821-06J00 COVER, HEADLAMP HOUSING | COVER, HEADLAMP HOUSING | |
4 | 09139-05077 SCREW (5X16) | SCREW (5X16) | |
5 | 01500-0625B Болт | Болт | |
6 | 09160-06152 WASHER (6.5X20X1.2) | WASHER (6.5X20X1.2) | |
7 | 09180-06307 SPACER (6.5X9X10) | SPACER (6.5X9X10) | |
8 | 51850-06J00 BRACKET, HOUSING | BRACKET, HOUSING | |
9 | 01550-0820B Болт | Болт | |
10 | 09320-08028 Подушка | Подушка |
