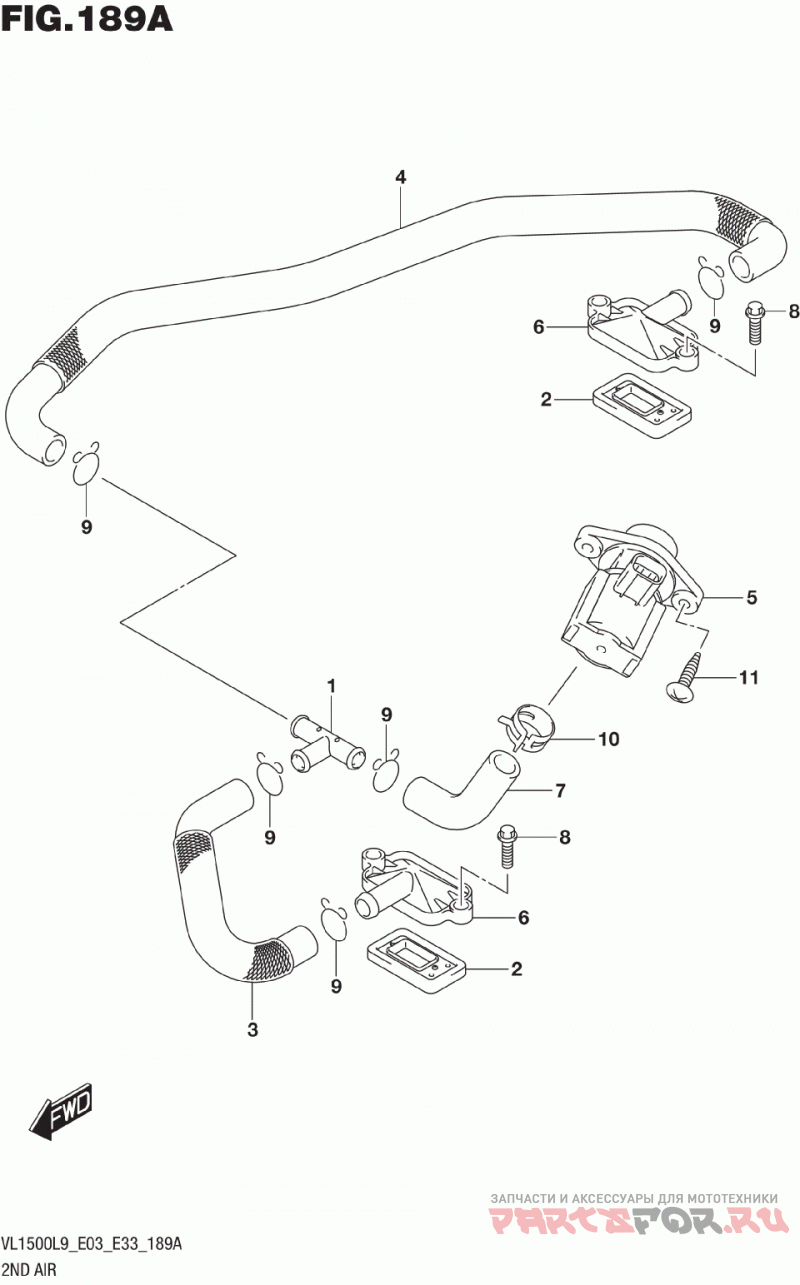

2nd air
Suzuki (Америка) VL1500,C90
| # | oem код | название | цена |
|---|---|---|---|
1 | 13855-18A03 UNION, 2ND AIR HOSE | UNION, 2ND AIR HOSE | |
2 | 18450-06G00 VALVE ASSY, 2ND AIR REED | VALVE ASSY, 2ND AIR REED | |
3 | 18461-40H00 HOSE, 2ND AIR VALVE FRONT | HOSE, 2ND AIR VALVE FRONT | |
4 | 18471-40H00 HOSE, 2ND AIR VALVE REAR | HOSE, 2ND AIR VALVE REAR | |
5 | 18510-27G01 VALVE ASSY, AIR CUT | VALVE ASSY, AIR CUT | |
6 | 18531-49F00 Крышка | Крышка | |
7 | 18711-40H00 HOSE, 2ND AIR VALVE | HOSE, 2ND AIR VALVE | |
8 | 09103-06201 Болт (6X20) | Болт (6X20) | |
9 | 09401-15101 Зажим | Зажим | |
10 | 09401-17401 Зажим | Зажим | |
11 | 03541-0520A Винт | Винт |
