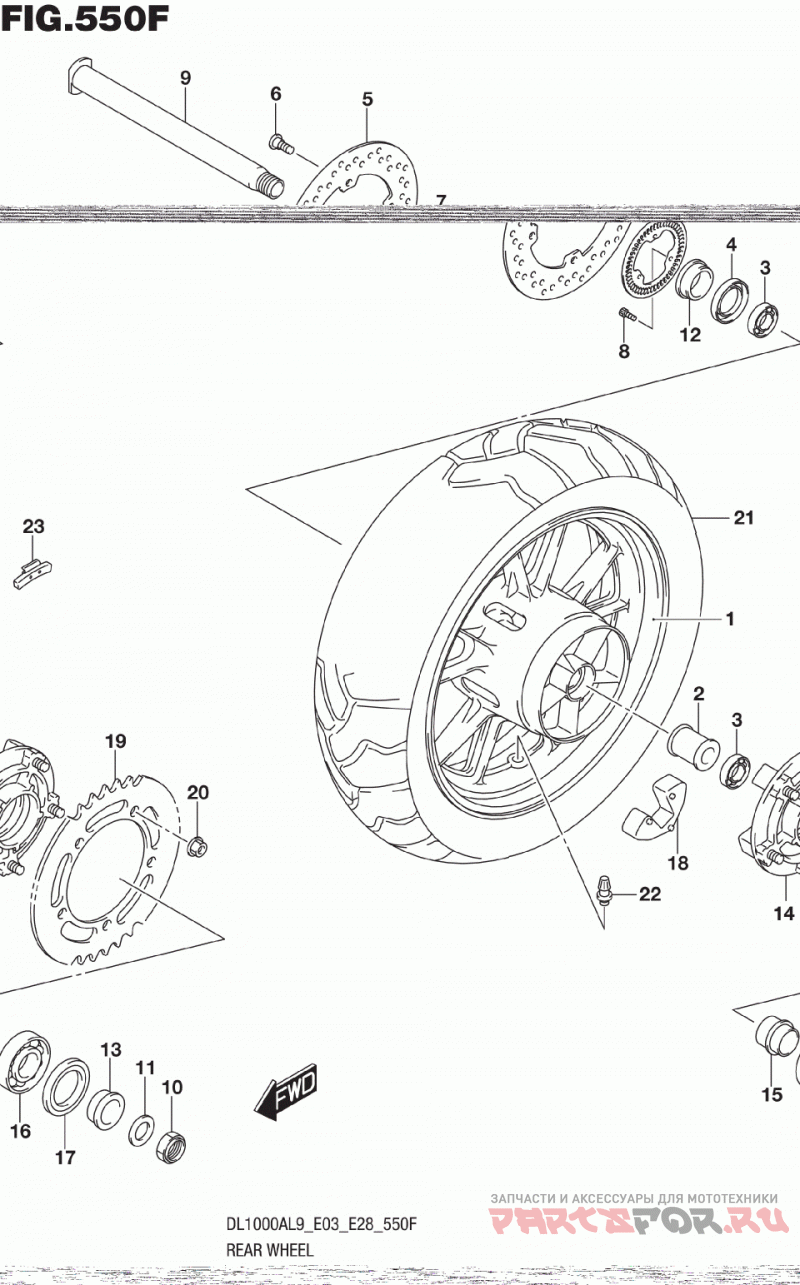

Rear wheel (dl1000al9 e33)

Suzuki (Америка) DL1000A,XA

Suzuki (Америка)
#oem кодцена
1
64111-31J00-019
WHEEL, REAR (17M/CXMT4.00) (BLACK)
2
64731-49G00
SPACER, REAR WHEEL BEARING
3
09262-28052
BEARING (28X52X12)
4
09284-37001
OIL SEAL (37X52X8)
5
69211-06G00
DISC, REAR BRAKE
6
09106-08160
BOLT (8X21)
7
64162-17G00
RING, SPEED SENSOR REAR
8
07130-0512A
Болт
9
64711-31J00
Ось задняя
10
64721-17K00
Гайка
11
09160-25070
WASHER (25.2X42X3.2)
12
64741-35F10
SPACER, REAR AXLE RH
14
64610-35F40
DRUM, REAR SPROCKET
15
64733-35F00
RETAINER, REAR SPROCKET DRUM
16
09262-32022
BEARING (32X65X17)
17
09285-39001
OIL SEAL (39X65X7)
18
64651-35F30
ABSORBER, REAR HUB SHOCK
19
64511-35F20
SPROCKET, REAR (NT:41)
20
08319-3110A
Гайка
21
65110-31J00
TIRE, REAR (150/70R17M/C 69V) (BW-502 RADIAL J BRIDGESTONE)
22
43130-24A00
VALVE ASSY, WHEEL RIM (TR412)
23-1
55411-22H00
BALANCER, WHEEL NO.1 (10G)
23-2
55412-22H00
BALANCER, WHEEL NO.2 (20G)
23-3
55413-22H00
BALANCER, WHEEL NO.3 (30G)
