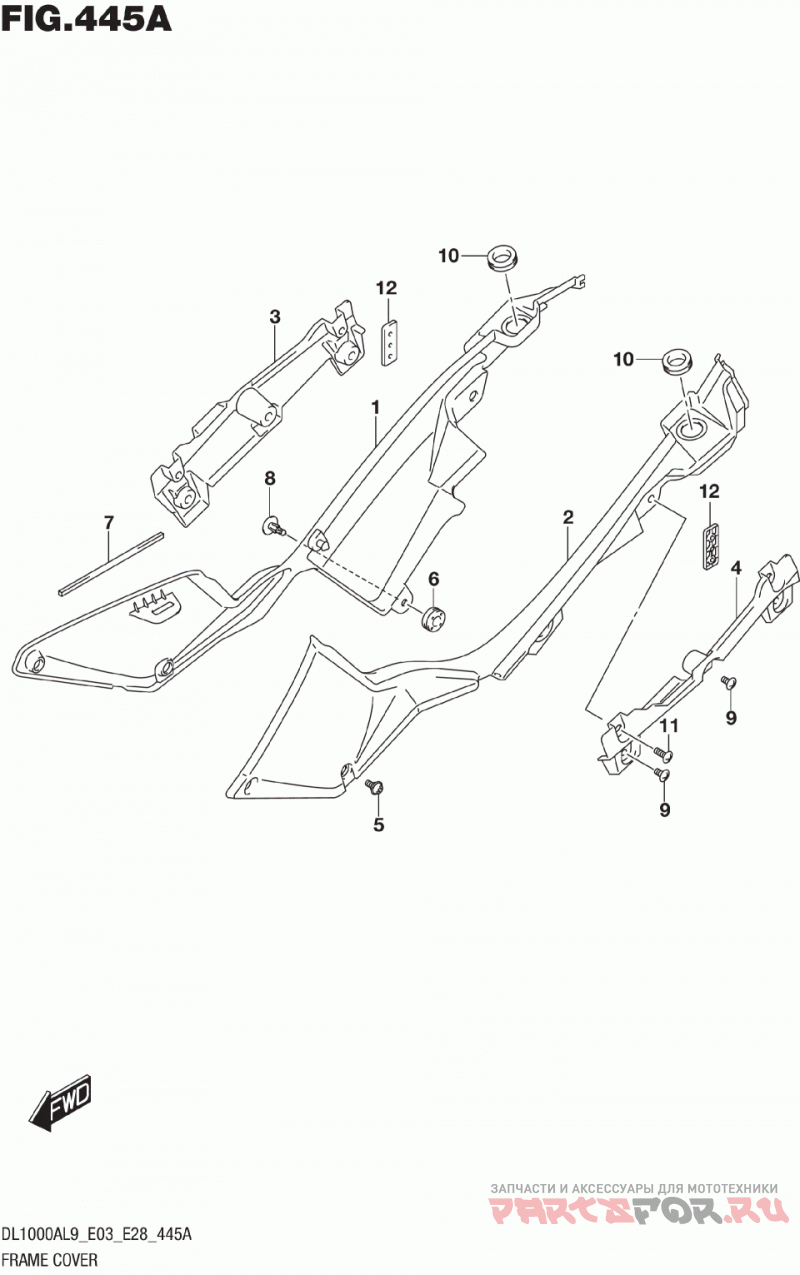

Обтекатель рамы
Suzuki (Америка) DL1000A,XA
| # | oem код | название | цена |
|---|---|---|---|
1 | 47111-31J10 COVER, FRAME RH | COVER, FRAME RH | |
2 | 47211-31J10 COVER, FRAME LH | COVER, FRAME LH | |
3 | 47411-31J00 COVER, FRAME REAR RH | COVER, FRAME REAR RH | |
4 | 47511-31J00 COVER, FRAME REAR LH | COVER, FRAME REAR LH | |
5 | 09139-05074 BOLT (5X13) | BOLT (5X13) | |
6 | 09320-08028 Подушка | Подушка | |
7 | 47121-31J00 CUSHION, FRAME COVER | CUSHION, FRAME COVER | |
8 | 94479-35F00 Зажим | Зажим | |
9 | 47913-31J00 Винт | Винт | |
10 | 09320-20010 Подушка | Подушка | |
11 | 09139-06120 Винт (6x16) | Винт (6x16) | |
12 | 47510-28K00 SPACER,FRAME COVER | SPACER,FRAME COVER |
