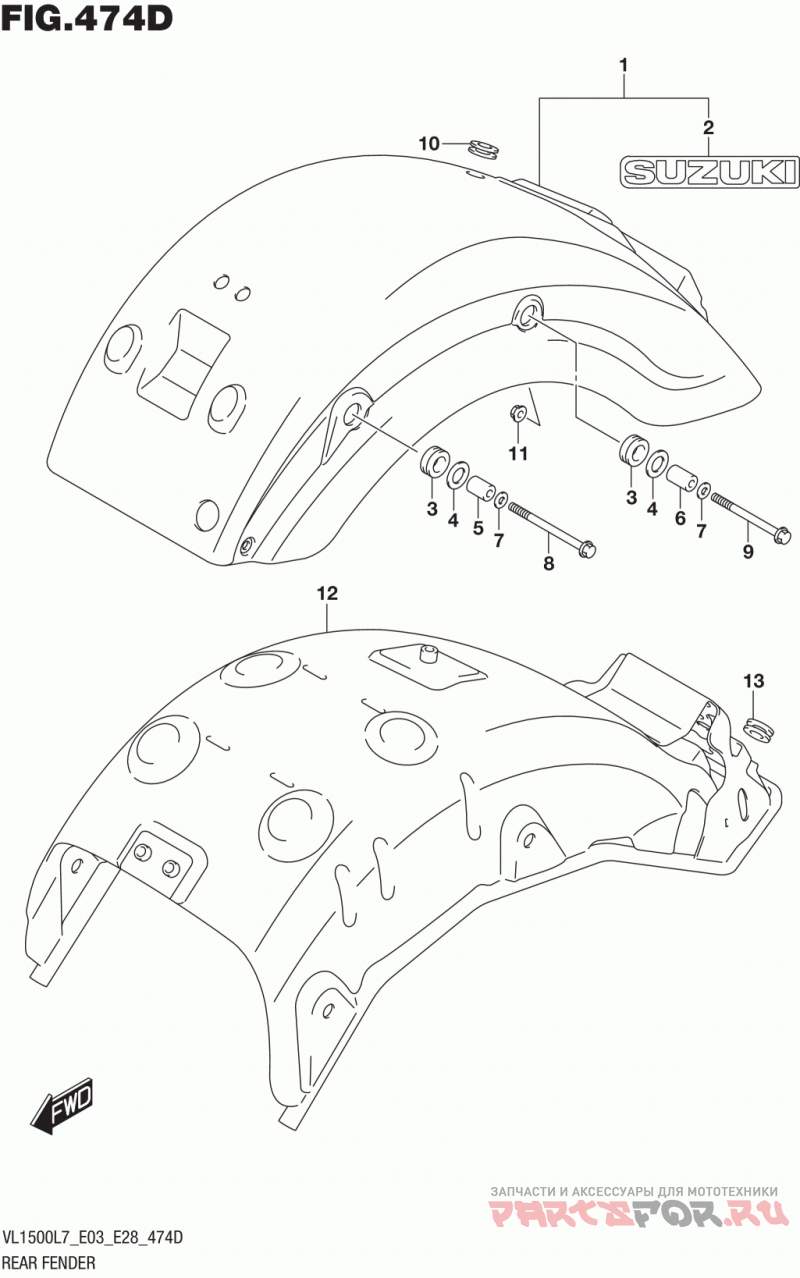

Rear fender (vl1500btl7 e28)
Suzuki (Америка) VL1500
| # | oem код | название | цена |
|---|---|---|---|
10 | 09320-15008 Подушка | Подушка | |
11 | 08316-1008A Гайка | Гайка | |
12 | 63130-06J01 REINFORCE, REAR FENDER | REINFORCE, REAR FENDER | |
13 | 09308-10017 Уплотнитель резиновый | Уплотнитель резиновый | |
1 | 63110-06J00-6UX FENDER, REAR (BLACK) | FENDER, REAR (BLACK) | |
2 | 68271-34A00-YJH .EMBLEM, | .EMBLEM, | |
3 | 47191-24F00 Подушка | Подушка | |
4 | 09160-15002 WASHER (15.5X26X2.3) | WASHER (15.5X26X2.3) | |
5 | 95428-06J00 SPACER, FRONT | SPACER, FRONT | |
6 | 95429-06J00 SPACER, REAR | SPACER, REAR | |
7 | 09180-08047 SPACER (8.2X12X6) | SPACER (8.2X12X6) | |
8 | 01550-0895A BOLT (FRONT) | BOLT (FRONT) | |
9 | 01550-0885A BOLT (REAR) | BOLT (REAR) |
