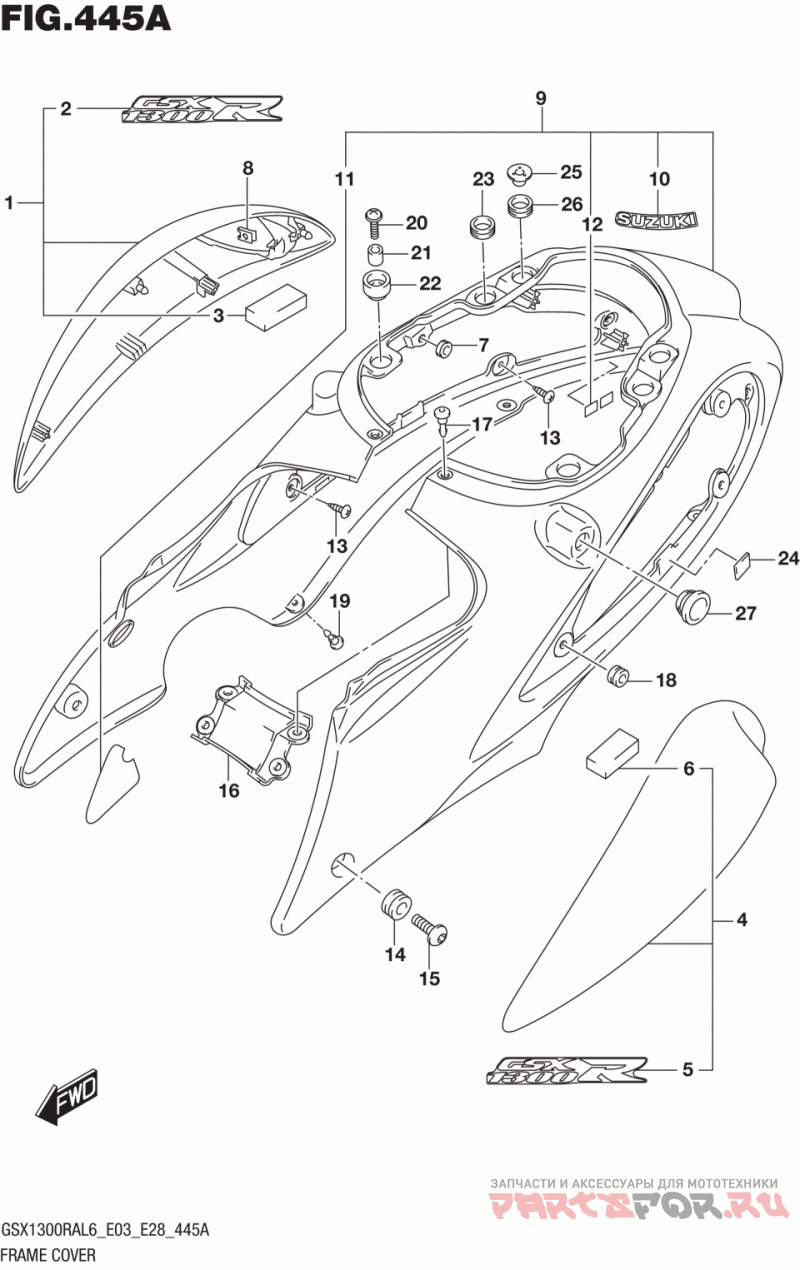

Обтекатель рамы

Suzuki (Америка) GSX1300R A

Suzuki (Америка)
#oem кодцена
10
68641-19F00-17U
.EMBLEM (GRAY)
11
47312-15H00
.TAPE, CENTER
12
45516-01H00
.CUSHION
13
09136-05062
SCREW (5X15)
14
09320-09016
Подушка
15
09139-06190
Болт (6X20)
16-1
47411-15H00-YVB
LID, CENTER (BLACK)
16-3
47411-15H00-YYG
LID, CENTER (RED)
17
09409-06314-5PK
Клипса (черн.)
18
09320-09016
Подушка
19
09409-06329
Зажим
20
09136-06105
Винт(6X20)
21
09180-06288
SPACER (6.5X10X11)
22
47115-16G00
CUSHION, UPPER FRONT
23
47191-24F00
CUSHION, UPPER CENTER
24
33651-37000
CUSHION, LOWER
25
47190-24F21
WASHER, UPPER REAR
26
47191-24F30
CUSHION, UPPER REAR
27
47191-24F20
SPACER, SIDE CENTER
1-1
47110-15H30-6UX
COVER, FRAME RH (BLACK)
1-3
47110-15H30-YYG
COVER, FRAME RH (RED)
2-1
68131-15H10-A98
.EMBLEM, FRAME COVER (GRAY/RED
2-2
68131-15H10-CRT
.EMBLEM, FRAME COVER (GRAY)
3
47511-15H00
.CUSHION
4-1
47210-15H30-6UX
COVER, FRAME LH (BLACK)
4-3
47210-15H30-YYG
COVER, FRAME LH (RED)
5-1
68131-15H10-A98
.EMBLEM, FRAME COVER (GRAY/RED
5-2
68131-15H10-CRT
.EMBLEM, FRAME COVER (GRAY)
6
47511-15H00
.CUSHION
7
09320-06016
Подушка
8
09148-04015
Гайка
9-1
47310-15H20-YVB
COVER, FRAME CENTER (BLACK)
9-3
47310-15H20-YYG
COVER, FRAME CENTER (RED)
