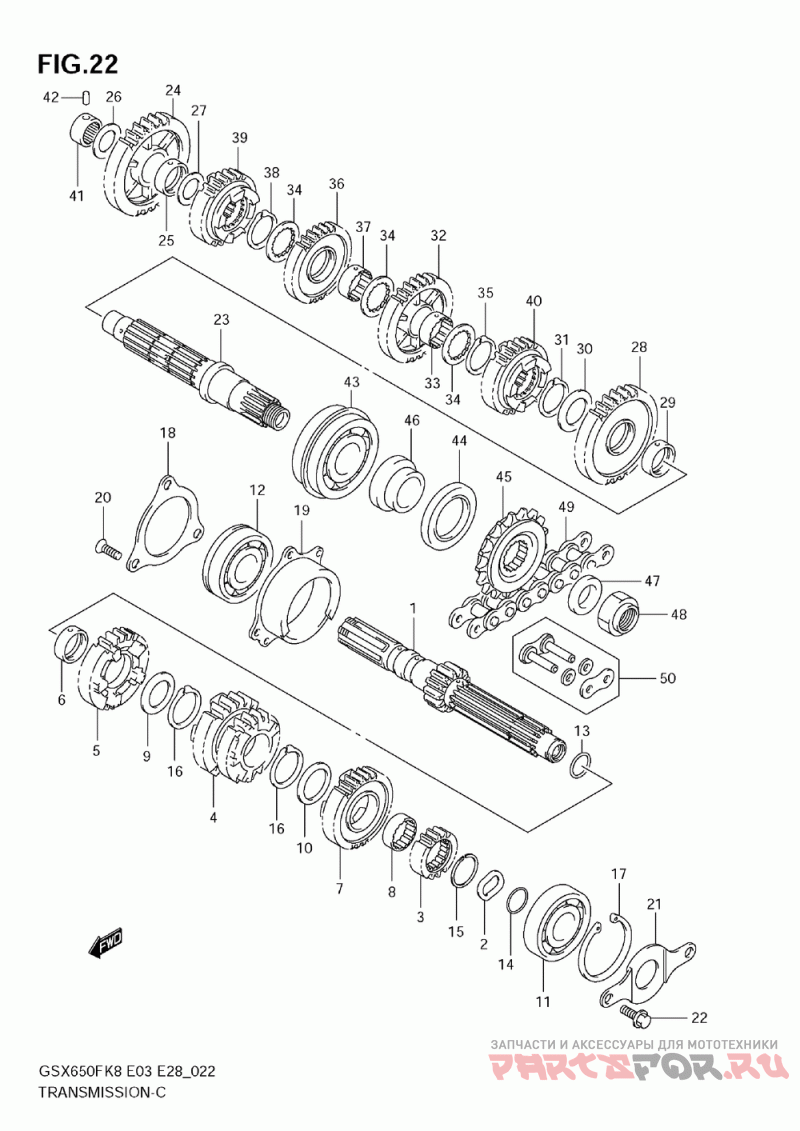

Трансмиссия

Suzuki (Америка) GSX650F

Suzuki (Америка)
#oem кодцена
1
24120-17H00
Shaft, Cntr
2
24127-18H00
Washer, Counter
3
24221-18H00
Gear, 2nd Drive,
4
24231-17H00
Gear, 3rd & 4th (nt:20/22)
5
24251-17H00
Gear, 5th Drive
6
24252-35F00
Bush, 5th Drive Gear
7
24261-18H00
Gear, 6th Drive
8
24262-35F00
Bush, 6th Drive
9
09160-27008
Washer, 2nd Driven Gear (27x36x1.0)
10
09167-27001
Washer, 6th Drive
11
09262-20080
Bearing, Cntr, L (20x52x15)
12
09262-25073
Bearing (25x62x17) (25x62x17)
13
09280-17004
O Ring, Center Shaft (d:1.9,id:16.6)
14
09280-20001
O Ring, Cntr Shaft (d:1.0,id:19.5)
15
09380-27004
Circlip, 2nd Drive
16
09380-27006
Circlip, 5th & 6th Drive
17
08331-4152A
Пружинное стопорное кольцо
18
24751-18H00
Retainer, Cntr S
19
24771-18H00
Housing, Cntr Sh
20
09139-06159
Screw, Housing (6x20)
21
24741-18H00
Retainer, Cl Pus
22
09103-06236
Screw, Push (6x12)
24
24311-18H00
Gear, 1st Driven
25
24312-02F00
Bush, 1st Driven
26
09181-20251
Shim (t:1.0) (20x34x1.0)
27
09181-22223
Washer, 1st Driven Lh (22x34x1.0)
28
24321-18H00
Gear, 2nd Driven
29
24322-02F01
Bush, 2nd Driven
32
24331-17H00
Gear, 3rd Driven
33
24262-17E01
Bush, 4th Driven Gear
34
24333-02F00
Washer, 3rd Driven Gear
36
24341-18H00
Gear, 4th Driven
39
24351-18H00
Gear, 5th Driven
40
24361-17H00
Gear, 6th Driven
41
09263-20087
Bearing, Drive Shaft, R (20x34x3.5)
42
09261-06003
Pin, Drive Shaft, R
43
09267-30011
Bearing, Drive Shaft Lh (30x62x23.8)
44
09283-42018
Seal, Drive Shaf
45
27510-20F00
Sprocket, Engine (nt:15)
46
27531-17H00
Spacer, Engine S
47
27532-17H00
Spacer, Engine S
48
09159-20004
Nut, Engine Sprocket
49
27600-06G00-118
Chain Assy, Driv
50
27620-06G00
Joint Set, Chain (opt)
3
24221-18H10
Gear, 2nd Drive
30
09160-27008
Washer (27x36x1.0)
31
09380-27006
Пружинное стопорное кольцо
35
09380-27006
Пружинное стопорное кольцо
37
24262-17E01
Bush, 3rd Driven
38
09380-27006
Пружинное стопорное кольцо
