Side leg shield (model k7) для мотоциклов Suzuki (Америка) AN650,A (2009)

Москва и регионы России

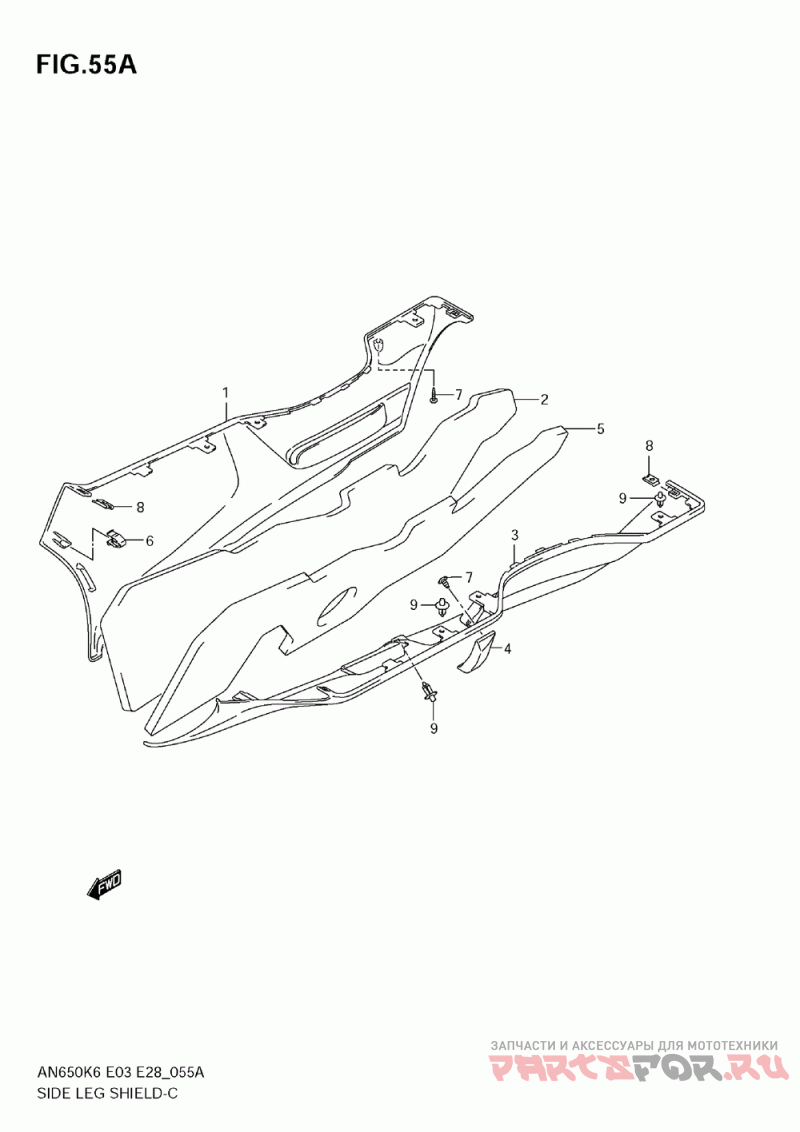

Side leg shield (model k7)

Suzuki (Америка) AN650,A

Side leg shield (model k7)

#

oem код

название

цена

1-1

48171-10G00-YC3

Деталь Shield, Leg Side Rh (white) (an650)

Деталь Shield, Leg Side Rh (white) (an650)

1-2

48171-10G00-YHF

Деталь Shield, Leg Side

Деталь Shield, Leg Side

1-3

48171-10G00-YHG

Деталь Shield, Leg Side Rh (gray) (e28)

Деталь Shield, Leg Side Rh (gray) (e28)

1-4

48171-10G00-YHL

Деталь Shield, Leg Side Rh (red) (an650a)

Деталь Shield, Leg Side Rh (red) (an650a)

2

Деталь Cushion, Rh

Деталь Cushion, Rh

3-1

48181-10G20-YC3

Деталь Shield, Leg Side Lh (white) (an650)

Деталь Shield, Leg Side Lh (white) (an650)

3-2

48181-10G20-YHF

Деталь Shield, Leg Side Lh (gray)

Деталь Shield, Leg Side Lh (gray)

3-3

48181-10G20-YHG

Деталь Shield, Leg Side Lh (gray) (e28)

Деталь Shield, Leg Side Lh (gray) (e28)

3-4

48181-10G20-YHL

Деталь Shield, Leg Side Lh (red) (an650a)

Деталь Shield, Leg Side Lh (red) (an650a)

4

Крышка левая

Крышка левая

5

Деталь Cushion, Lh

Деталь Cushion, Lh

6

Зажим

Зажим

7

Деталь Screw, Cover

Деталь Screw, Cover

8

Гайка

Гайка

9

09409-08308-5ES

Деталь Clip (black) ( Refer To Fig.55c(h-12) For Model K9 )

Деталь Clip (black) ( Refer To Fig.55c(h-12) For Model K9 )
