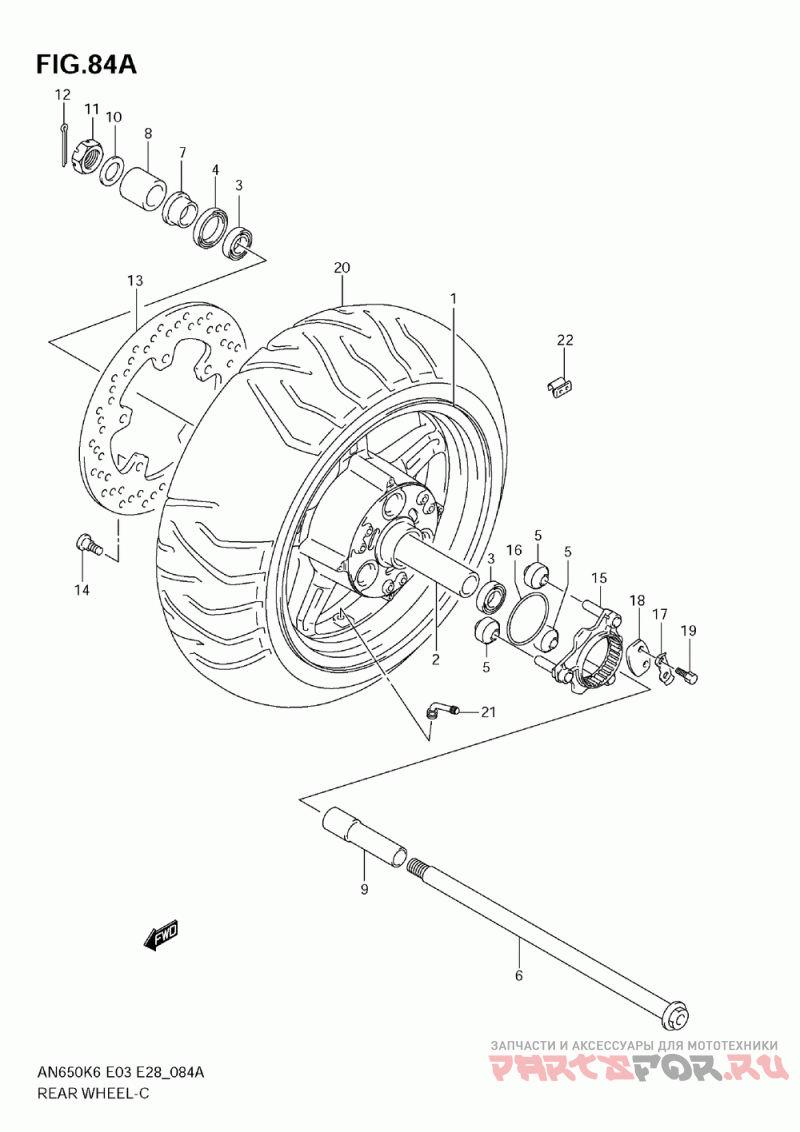

Rear wheel (an650k7)

Suzuki (Америка) AN650,A

Suzuki (Америка)
#oem кодцена
1
64111-10G10-YD8
Wheel, Rear (14m/cxmt4.50) ( (silver) )
2
64731-10G00
Spacer, Rear Hub Bearing
3
08123-62047
Bearing, Rear Hub
4
09285-28001
Seal, Rear Wheel Bearing Rh
5
09319-12062
Bush, Rear Hub
6
64711-10G10
Ось задняя
7
64741-10F00
Spacer, Rear Axle Rh No.2
8
64751-10G10
Spacer, Rear Axle Rh No.1
9
64772-10G00
Spacer, Rear Axle Lh
10
08322-0118B
Шайба
11
08314-40187
Гайка
12
04111-4035A
Шплинт
13
69211-10G10
Disc, Rear Brake
14
09106-08160
Bolt, Disc
15
64680-10G20
Joint Assy, Rear Hub Driven
16
09280-65003
O Ring, Driven Joint
17
09169-06030
Washer, Joint
18
64677-10G00
Шайба
19
09119-06049
Bolt, Driven Joint Washer
20
65110-10G00
Tire, Rear, 160/60r14m/c 65h (th01 R Radial (bridgestone) )
21
43130-10G00
Valve Assy, Wheel Rim (tr412)
22-1
43222-73H10
Balancer, Wheel (10g)
22-2
43224-73H10
Balancer, Wheel (20g)
22-3
43226-73H10
Balancer, Wheel (30g) ( Refer To Fig.85b(k-11) For An650ak8/ak9 )
