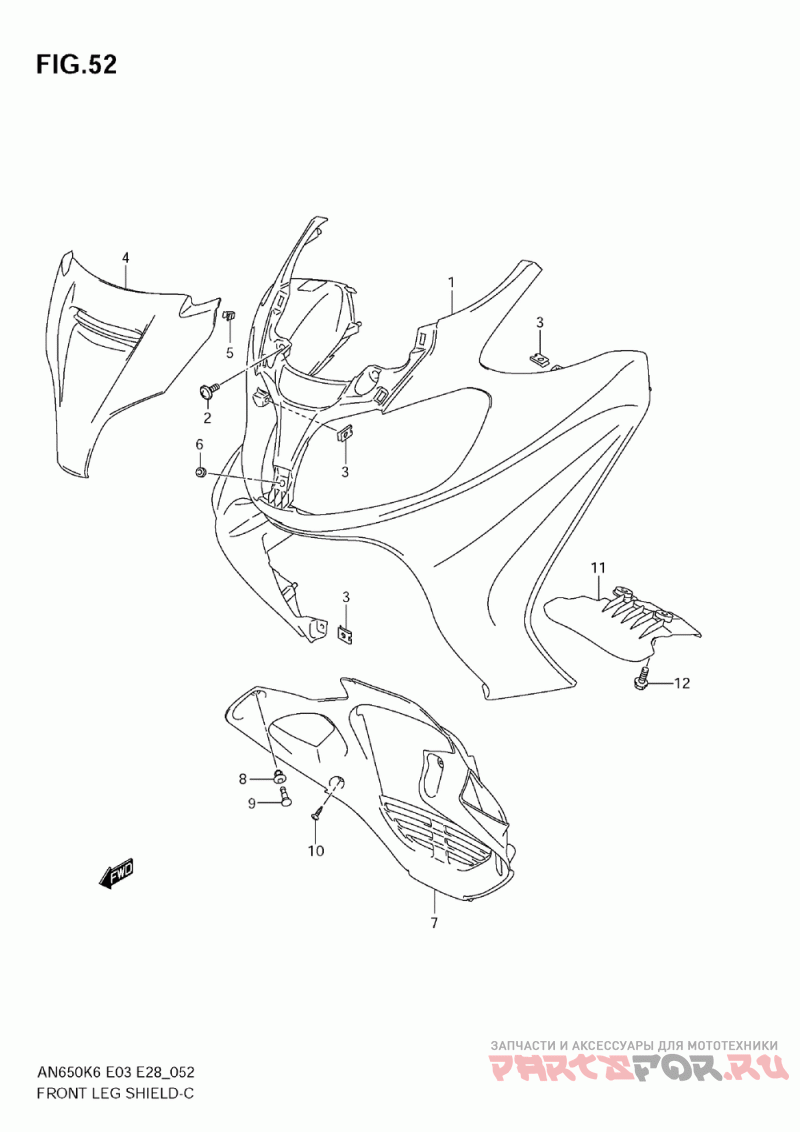

Front leg shield (an650ak6/ak7) для мотоциклов Suzuki (Америка) AN650,A (2009)

Front leg shield (an650ak6/ak7)

Suzuki (Америка) AN650,A

oem код

название

цена

1-1

48111-10G00-YHF

Shield, Leg Front (gray) (e28)

1-2

48111-10G00-YHG

Shield, Leg Front (gray) (model K6)

1-3

48111-10G00-YKZ

Shield, Leg Front (blue) (e28)

1-4

48111-10G00-YHL

Shield, Leg Front (red) (model K7)

2-1

09136-06061

Screw (model K6)

2-2

09136-06157

Screw (model K7)

3-1

09148-05038

Nut (model K6)

3-2

09148-05047

Nut (model K7)

4-2

48130-10GA0-YHG

Cover, Front Leg (gray) (model K6)

4-4

48130-10GA0-YHL

Cover, Front Leg (red) (model K7)

09409-08326

Зажим

09320-06016

Подушка

48137-10G01-Y0J

Shield, Leg Lower (gray)

Уплотнитель

Плунжер

Screw, Cover

Cover, Lower Bracket

Bolt ( Refer To Fig.52b(h- 6) For Model K9 )
