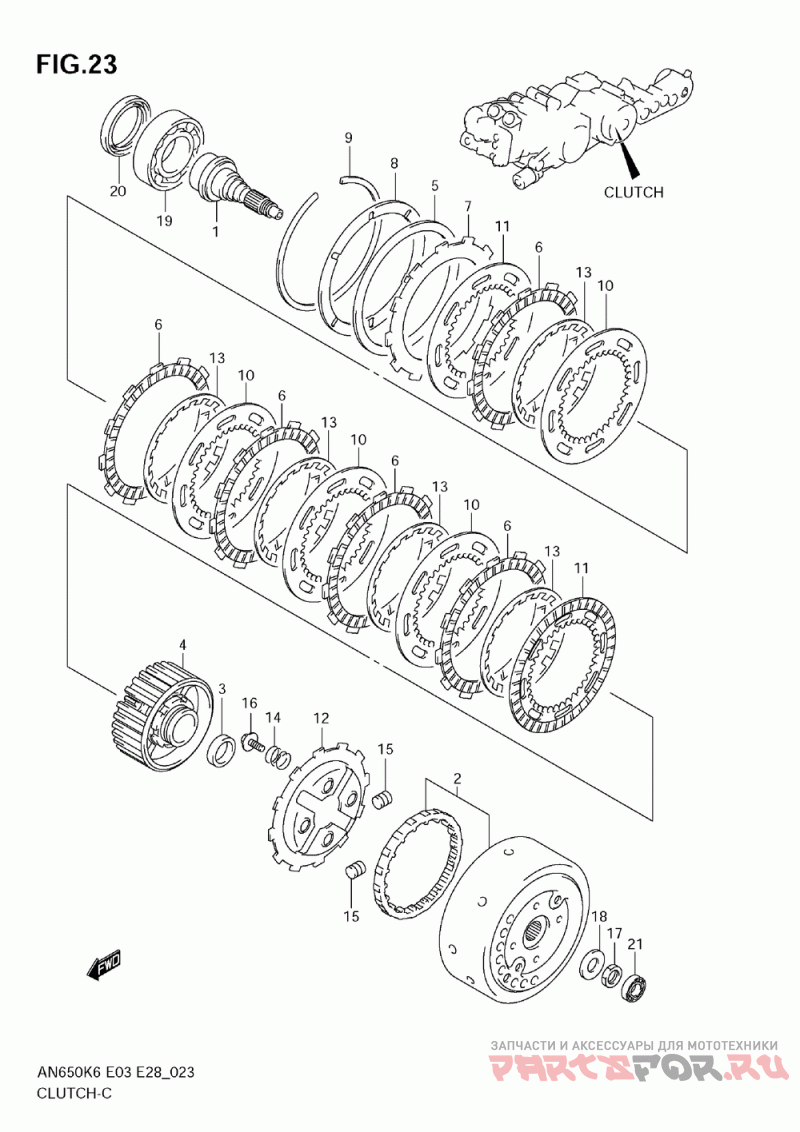

Сцепление

Suzuki (Америка) AN650,A

Suzuki (Америка)
#oem кодцена
1
21421-10G00
Shaft, Clutch (nt:42)
2
21221-10830
Housing Set, Clutch
3
21222-10G00
Spacer, Clutch Housing
4-1
21321-10811
Gear Set, Hub Clutch (model K6)
4-2
21321-10821
Gear Set, Hub Clutch (model K7/k8/k9)
5
21412-10G00
Washer, Clutch Spring Wave
6
21441-24F00
Plate, Clutch Drive
7
21443-10G00
Plate, Clutch Drive Outer
8
21446-10G00
Seat, Clutch Spring
9
21447-10G00
Circlip, Clutch Outer
10
21451-10G10
Plate, Clutch Driven
11
21452-10G10
Plate, Clutch Driven
12
21465-10G00
Plate, Clutch Inner
13
21472-10G10
Washer, Clutch Plate
14
21512-10G00
Spring, Clutch Reaction
15
21650-10G00
Roller, Clutch
16
09116-05020
Bolt, Clutch Reaction (5x16)
17
09140-18016
Nut, Clutch Housing
18
09160-18033
Washer, Clutch Housing (18x30x2.5)
19
09262-50003
Bearing, Clutch Shaft Rh (50x72x12)
20
09283-50009
Seal, Clutch Shaft (50x64x7)
21
08123-63017
Bearing, Lh
