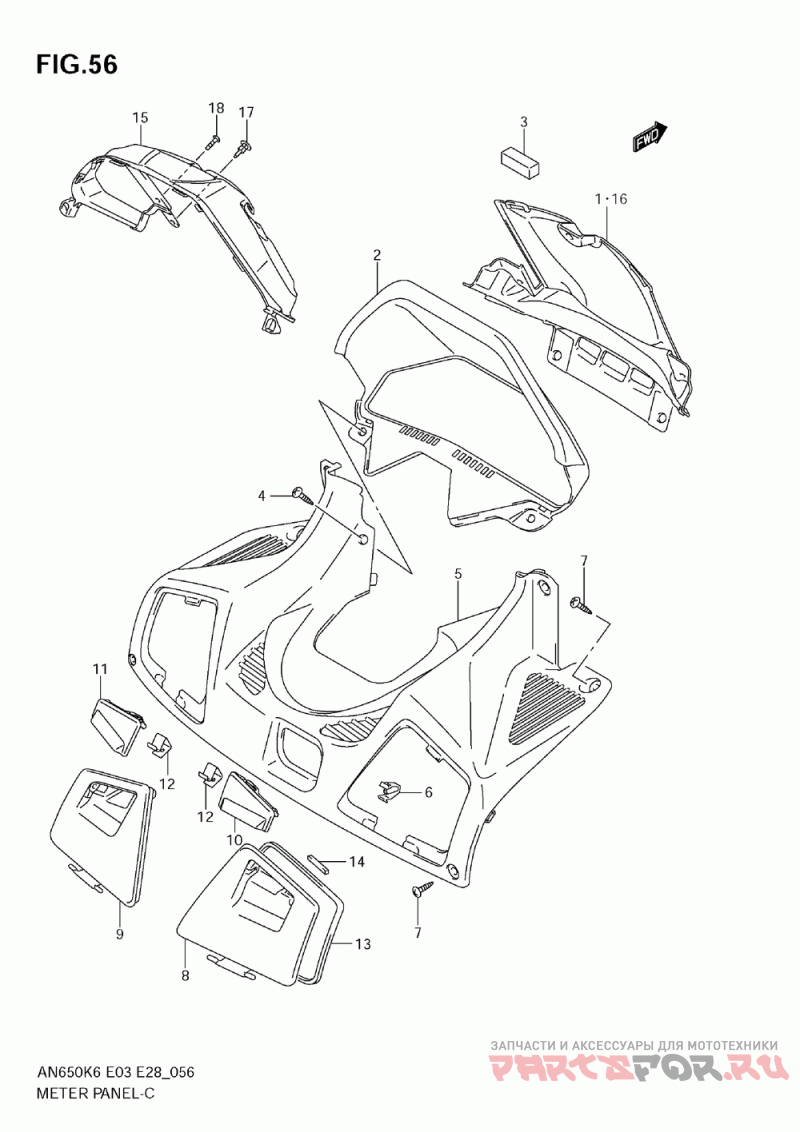

Приборная панель

Suzuki (Америка) AN650,A

Suzuki (Америка)
#oem кодцена
1
94421-10G01-Y0J
Panel, Meter Front (gray) (an650)
2
94420-10G00-Y0J
Panel, Meter Rear (gray)
3
94423-10G00
.cushion
4
09122-66006
Screw, Rear Panel
5-1
94671-10G00-Y0J
Panel, Front Lower (gray)
6
09409-08326
Зажим
7
09132-05053
Screw, Cover
8
92140-10G10-Y0J
Lid, Front Panel Rh (gray)
9
92150-10G10-Y0J
Lid, Front Panel Lh (gray)
10
92143-10G10-Y0J
.lock, Panel Rh (gray)
11
92153-10G10-Y0J
.lock, Panel Lh (gray)
12
92144-10G10
.spring, Lid
13
92145-10G00
.cushion
15
94421-10GA0-Y0J
Panel, Meter Front Upper (an650a)
16
94424-10GA0-Y0J
Panel, Meter Front Lower (an650a)
17
09409-08308-5ES
Clip (black) (an650a)
18
02142-0512B
Screw (an650a)
14
92145-10G00
Cushion, Fr Pane
