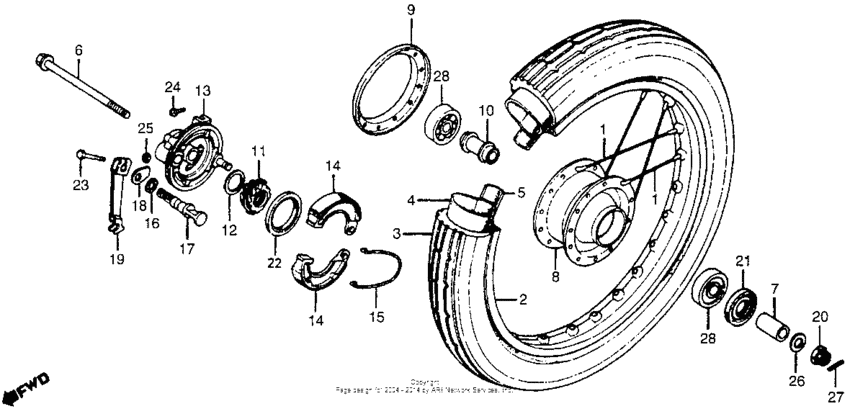

Front wheel + front brake panel

Honda NC50

Front wheel + front brake panel

Front wheel + front brake panel

1

1

2

3

4

5

5

6

7

8

9

10

11

12

13

13

14

14

14

14

15

16

17

18

19

20

20

21

21

22

23

24

25

26

27

28

28

#

oem код

название

цена

NI

Колодки

Колодки

1

Spoke,b,12x143.5

Spoke,b,12x143.5

2

Rim,wheel

Rim,wheel

3

Tire

Tire

4

Tube, tire (2.25-14)

Tube, tire (2.25-14)

5

Flap, tire (14)

Flap, tire (14)

5

Flap, rr. tube (14)

Flap, rr. tube (14)

6

Axle,front wheel

Axle,front wheel

7

Втулка

Втулка

8

Hub,front wheel

Hub,front wheel

9

Cover, fr. hub

Cover, fr. hub

10

Collar, fr. distance

Collar, fr. distance

11

Gear,speedometer

Gear,speedometer

12

Washer,gear box

Washer,gear box

13

45010-191-000ZA

Panel sub *nh35m*

Panel sub *nh35m*

13

Panel sub-assy., fr.

Panel sub-assy., fr.

14

Shoe comp., brake (ask)

Shoe comp., brake (ask)

14

Колодки

Колодки

15

Скоба

Скоба

16

Кольцо

Кольцо

17

Кулак

Кулак

18

Указатель

Указатель

19

Arm,fr brake

Arm,fr brake

20

Nut, axle, 10mm

Nut, axle, 10mm

Use from Frame SN BS416938

20

Nut,rear axle

Nut,rear axle

Use up to Frame SN BS416937

21

Oil seal (19x30.5x7)

Oil seal (19x30.5x7)

21

O/seal 19x30.5x7

O/seal 19x30.5x7

22

Oil seal (34x47x5)

Oil seal (34x47x5)

23

Bolt, hex., 5x20

Bolt, hex., 5x20

24

93500-040-060-A

Болт

Болт

PAN, 4X6

25

94001-050-000-S

Гайка

Гайка

HEX., 5MM

26

Washer, plain, 10mm

Washer, plain, 10mm

27

Pin, split, 2.5x30

Pin, split, 2.5x30

28

Bearing (6200u)

Bearing (6200u)
