Rear wheel complete assy для мотоциклов Honda FES150 S-Wing (2009)

Москва и регионы России

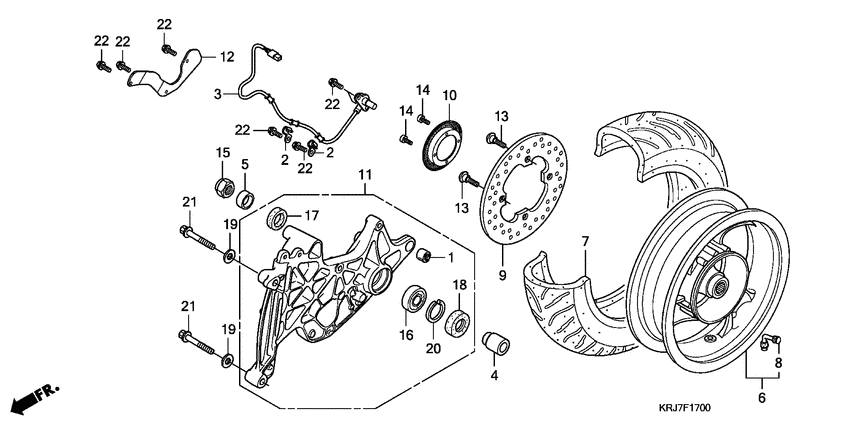

Rear wheel complete assy

Honda FES150 S-Wing

Rear wheel complete assy

Rear wheel complete assy

1

4

5

6

7

7

8

9

11

13

13

13

13

15

16

17

18

19

19

20

21

21

#

oem код

название

цена

1

Bush, rr. (lower)

Bush, rr. (lower)

4

Кольцо

Кольцо

RR. AXLE

5

Collar b, rr. axle

Collar b, rr. axle

6

42650-KRJ-790ZA

Wheel sub assy.

Wheel sub assy.

RR. *NH365M*

7

Tire,rear(irc)

Tire,rear(irc)

7

Tire,rear(bs)

Tire,rear(bs)

8

Valve rim rr

Valve rim rr

9

Disk

Disk

RR. BRAKE

11

Swingarm assy.

Swingarm assy.

13

Bolt, fr. (8x24)

Bolt, fr. (8x24)

13

Болт (8x24)

Болт (8x24)

15

Гайка М16

Гайка М16

16

Bearing (6303)

Bearing (6303)

17

Dust seal, 37x25x6

Dust seal, 37x25x6

18

Валик

Валик

19

Washer, plain, 10mm

Washer, plain, 10mm

20

Circlip, internal, 47mm

Circlip, internal, 47mm

21

Bolt, flange, 10x60

Bolt, flange, 10x60
