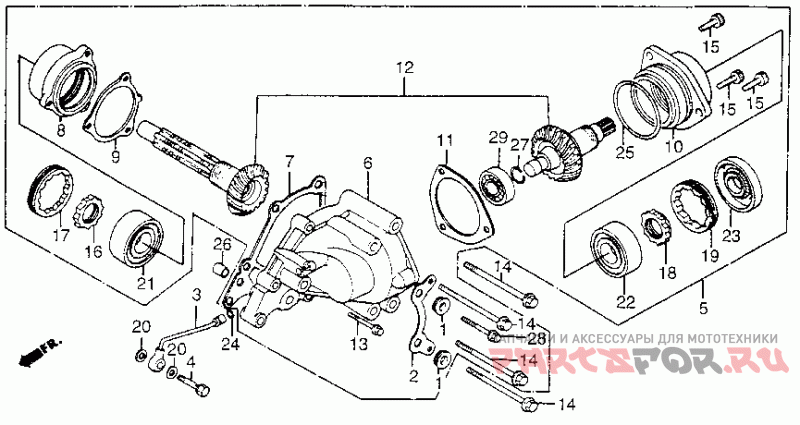

Side gear case

Honda (Америка) CB650SC

Honda (Америка)
#oem кодцена
01
11345-MB0-000
Grommet B, Rr. Cover
02
11363-ME5-000
Stay, L. Side Cover
03
15560-ME5-000
Pipe, Trans Oil
04
15566-ME5-000
Bolt (8x41)
05
21100-ME5-010
Case, Side Gear
06
21200-ME5-000
Case, Side Gear
07
21291-ME5-306
Gskt, Side Gear Case
08
21301-ME5-000
Держатель
09
21321-ME5-000
Shim (0.4)
09
21322-ME5-000
Shim (0.45)
09
21323-ME5-000
Shim (0.5)
09
21324-ME5-000
Shim (0.55)
09
21325-ME5-000
Shim (0.6)
10
21371-ME5-010
Держатель
11
21381-ME5-000
Shim (0.2)
11
21382-ME5-000
Shim (0.25)
11
21385-ME5-000
Shim (0.4)
11
21386-ME5-000
Shim (0.45)
11
21387-ME5-000
Shim (0.50)
12
23200-ME5-000
Shaft Set, Cross
13
90045-ME5-000
Bolt, Ubs (8x55)
14
90046-ME5-000
Bolt, Ubs (8x87)
15
90061-MB0-000
Болт (8x22)
16
90241-MB0-000
Nut, Lock (30mm)
17
90242-MB0-000
Nut, Lock (64mm)
18
90243-ME5-000
Nut, Lock (28mm)
19
90244-HA0-000
Nut, Lock (60mm)
20
90475-703-000
Washer C (8mm)
21
91012-MG7-003
Bearing (5206)
22
91006-KBA-901
Bearing (62/28)
23
91205-ME5-003
Oil Seal (25x61x8.5)
23
91205-ME5-005
Oil Seal (25x61x8.5)
24
91304-ME5-003
O-ring (5.1x2.2)
25
91362-461-000
O-ring (70x3.0)
26
94301-10160
Палец (10x16)
27
94601-13000
Колечко (13mm)
28
95701-06032-00
Болт (6х32)
29
96100-63020-00
Bearing (6302)
11
21383-ME5-000
Shim (0.3)
11
21384-ME5-000
Shim (0.35)
