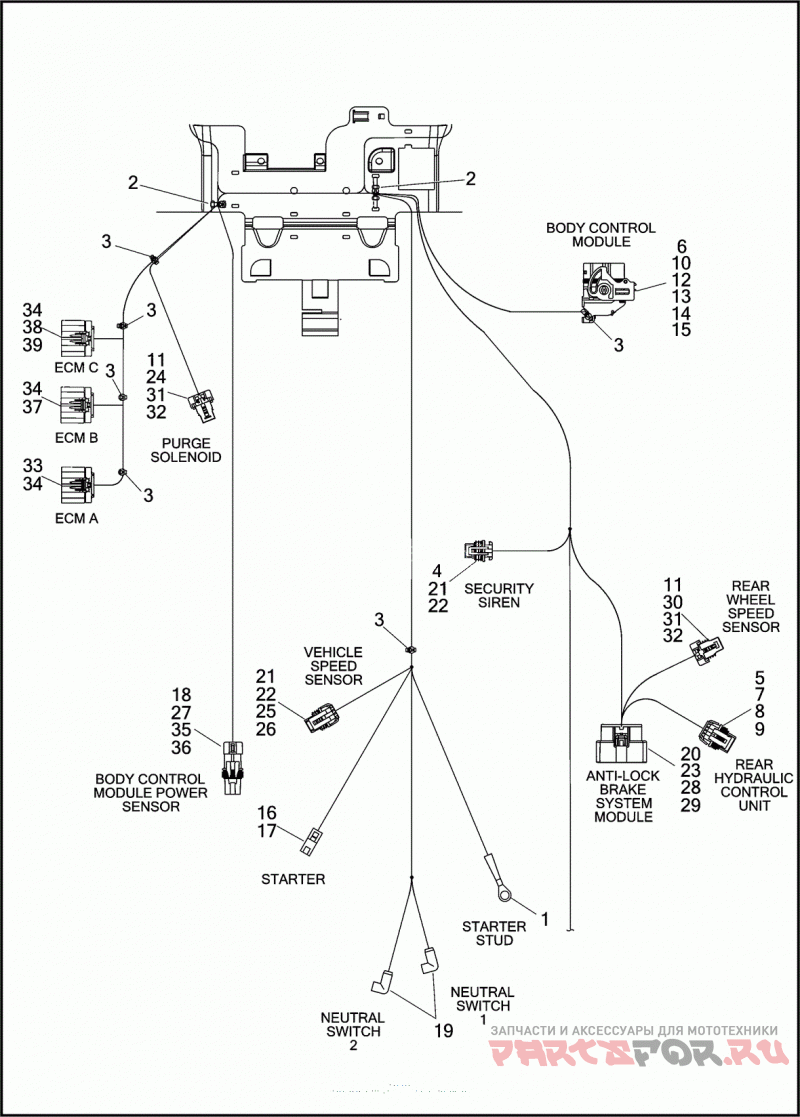

WIRING HARNESS, MAIN, ABS - FXSB (4 OF 5)

Harley Davidson FXSB 1BFV BREAKOUT (2017)

Harley Davidson
#oem кодцена
69201082
WIRING HARNESS, MAIN
1
9842
TERMINAL RING .31 10-12 AWG
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
72064-06
HOUSING THREE-WAY SOCKET
5
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
6
72081-11
HOUSING 48-WAY SOCKET
7
72094-06
TERMINAL SOCKET, SOCKET 18 AWG
8
72096-06
WIRE SEAL 18 AWG (YELLOW)
9
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
10
72209-11
COVER WIRE
11
72213-94
TERMINAL SOCKET, 16-20 AWG
12
72222-11
TERMINAL SOCKET 18-20 AWG
13
72226-11
TERMINAL SOCKET 14-16 AWG
14
72227-11
TERMINAL SOCKET, 18-20 AWG
15
72256-11
SEAL PIN .6MM, PLUG
16
72291-94
TERMINAL 14-16 AWG
17
72295-94
HOUSING STARTER CONNECTION
18
72350-11
HOUSING ONE-WAY
19
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
20
72473-07
SEAL PIN
21
72484-08
TERMINAL SOCKET, 20 AWG
22
72486-08
WIRE SEAL 20 AWG (GREEN)
23
72500-07ABK
HOUSING 20-WAY SOCKET (BLACK)
24
72518-01
HOUSING SOCKET, TWO-WAY (RED)
25
72543-07BK
HOUSING THREE-WAY SOCKET (BLACK)
26
72544-07
SECONDARY LOCK THREE-WAY SOCKET
27
72575-11
SECONDARY LOCK
28
72581-11
TERMINAL SOCKET, 18-20 AWG (GOLD)
29
72593-11
TERMINAL SOCKET, 14-16 AWG (GOLD)
30
72606-08
HOUSING TWO-WAY SOCKET
31
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
32
72610-08
SEAL CABLE, 18-20 AWG (WHITE)
33
72664-12A
HOUSING 18-WAY, SOCKET, KEY A (BLACK)
34
72666-12
TERMINAL SOCKET, 18-20 AWG (SILVER)
35
73304-04
TERMINAL .31 SOCKET, 10 AWG
36
73305-04
SEAL WIRE 10 AWG (BLUE)
37
69200267A
HOUSING 18-WAY, SOCKET, KEY B (GRAY)
38
69200268A
HOUSING 18-WAY, SOCKET, KEY C (BROWN)
39
69201168
TERMINAL SOCKET, 22 AWG (SILVER)
