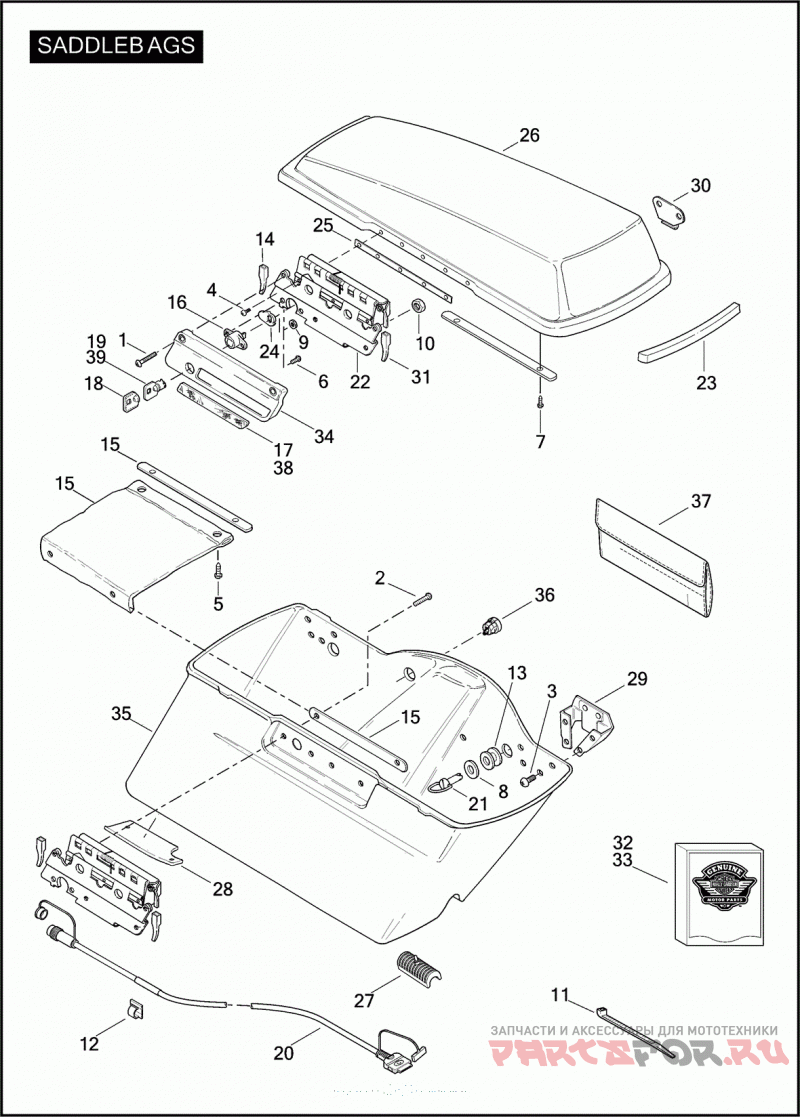

Кофры боковые

Harley Davidson FLTRXSE 1TC8 CVO ROAD GLIDE (2012)

Harley Davidson
#oem кодцена
1
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
2
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
3
3593
SCREW NO. 8-32 X 5/16 TORX TRUSS HD.
4
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
5
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
6
3656
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)
7
5233
SCREW #10-16 X 1/2 HI-LO, TORX HD T-25
8
6229W
WASHER 5/16 X 1-1/16 X 3/64
9
7586
JAMNUT 9/32-28 X 1/4
10
7608
NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)
11
10065
CABLE STRAP
11
10102
CLIP ADHESIVE BACKED (NOT ILLUSTRATED)
12
10120
CLIP RIGHT
13
11468
Уплотнитель резиновый
14
53482-93
RUB BAR LEFT, REAR (PLASTIC)
14
53483-93
RUB BAR RIGHT, REAR (PLASTIC)
15
53567-93
CHECK STRAP LEFT
15
90200002
CHECK STRAP RIGHT, I-POD (NOT SHOWN)
16
53710-93
LOCKSET W/ 7586, 90682-93 & KEYS (SPECIFY KEY CODE) (SET OF 2)
17
59287-92
REFLECTOR RIGHT (RED) (DOMESTIC, CANADA)
17
59288-92
REFLECTOR LEFT (RED) (DOMESTIC, CANADA)
18
61081-92
COVER KEY
19
90115-04
PROTECTOR SADDLEBAG (NOT ILLUSTRATED)
20
72651-11
HARNESS I-POD, RIGHT
21
90400-00A
BAIL HEAD STUD (BAIL MUST BE REMOVED FOR ALL HDI MODELS EXCEPT JAPAN)
22
90664-93
LATCH ASSEMBLY LEFT, W/ 53482-93 & SPRING, ALSO ORDER 90981-09
22
90665-93
LATCH ASSEMBLY RIGHT, W/ 53483-93 & SPRING, ALSO ORDER 90980-09
23
90675-93A
GASKET COVER
24
90682-93
CAM HOOK
25
90700-93
BACKING PLATE
26
90757-93
COVER SADDLEBAG, LEFT (PRIME)
26
90200398BKO
COVER ASSEMBLY SADDLEBAG, LEFT (CANDY COBALT)
26
90200398DGM
COVER ASSEMBLY SADDLEBAG, LEFT (MAPLE METALLIC)
26
90200398CGS
COVER ASSEMBLY SADDLEBAG, LEFT (WHITE GOLD PEARL)
26
90756-93
COVER SADDLEBAG, RIGHT (PRIME)
26
90200399BKO
COVER ASSEMBLY SADDLEBAG, RIGHT (CANDY COBALT)
26
90200399DGM
COVER ASSEMBLY SADDLEBAG, RIGHT (MAPLE METALLIC)
26
90200399CGS
COVER ASSEMBLY SADDLEBAG, RIGHT (WHITE GOLD PEARL)
27
90764-93
CUSHION FRONT
28
88335-09
PROTECTOR LEFT HAND
28
88336-09
PROTECTOR RIGHT HAND
29
90958-93
MOUNTING BRACKET
30
90962-93
WEARPLATE COVER
31
90980-09
RUB BAR RIGHT, FRONT (PLASTIC)
31
90981-09
RUB BAR LEFT, FRONT (PLASTIC)
32
91636-09
COVER INDOOR STORAGE
33
91885-97A
LINER REMOVABLE
34
53000155BKO
LATCH COVER SADDLEBAG, RIGHT (CANDY COBALT)
34
53000155DGM
LATCH COVER SADDLEBAG, RIGHT (MAPLE METALLIC)
34
53000155CGS
LATCH COVER SADDLEBAG, RIGHT (WHITE GOLD PEARL)
34
53000156BKO
LATCH COVER SADDLEBAG, LEFT (CANDY COBALT)
34
53000156DGM
LATCH COVER SADDLEBAG, LEFT (MAPLE METALLIC)
34
53000156CGS
LATCH COVER SADDLEBAG, LEFT (WHITE GOLD PEARL)
35
90200580DLA
BOTTOM ASSEMBLY SADDLEBAG, LEFT (CANDY COBALT/TWILIGHT BLUE)
35
90200580DLH
BOTTOM ASSEMBLY SADDLEBAG, LEFT (MAPLE METALLIC/VIVID BLACK)
35
90200580DLN
BOTTOM ASSEMBLY SADDLEBAG, LEFT (WHITE GOLD PEARL/STARFIRE BLACK)
35
90200581DLA
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (CANDY COBALT/TWILIGHT BLUE)
35
90200581DLH
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (MAPLE METALLIC/VIVID BLACK)
35
90200581DLN
BOTTOM ASSEMBLY SADDLEBAG, RIGHT (WHITE GOLD PEARL/STARFIRE BLACK)
36
12100001
GROMMET RIGHT SADDLEBAG
37
14900001
Комплект инструментов
38
59289-92
REFLECTOR RIGHT (AMBER) (HDI, ENGLAND, JAPAN)
38
59290-92
REFLECTOR LEFT (AMBER) (HDI, ENGLAND, JAPAN)
