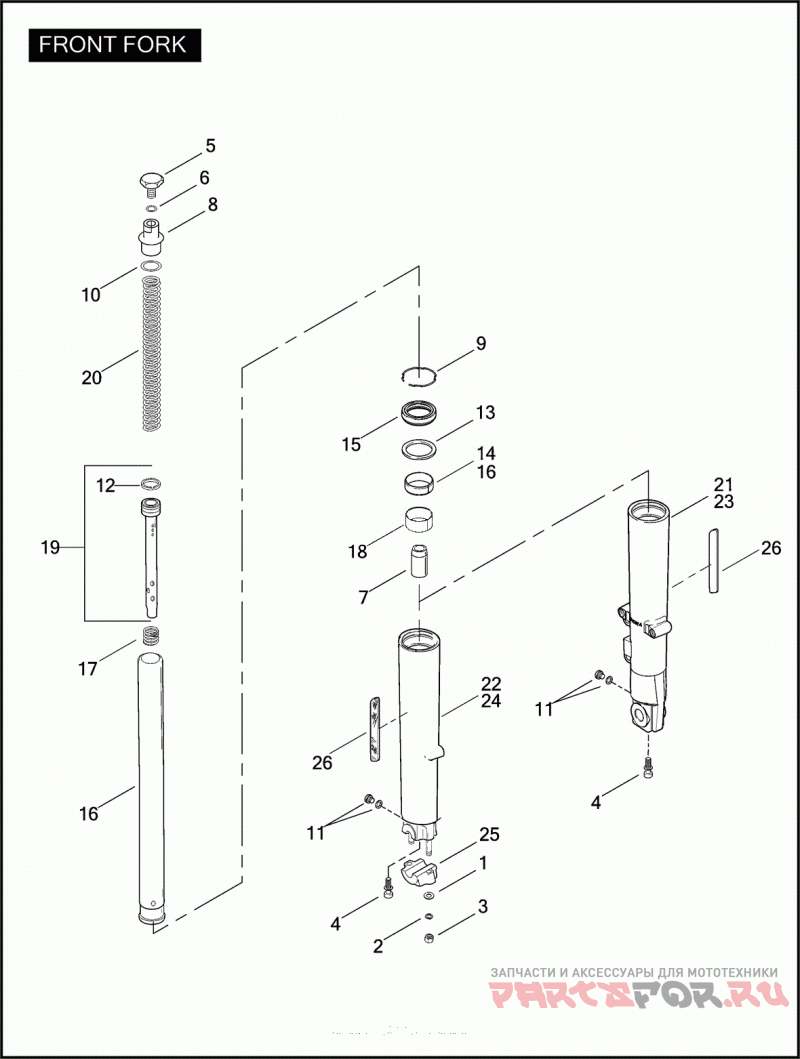

Передняя вилка

Harley Davidson FLHRSE4 1PG8 CVO ROAD KING (2008)

Harley Davidson
#oem кодцена
1
6702
WASHER 5/16 X 11/16 X 1/16
2
7041
LOCKWASHER 5/16
3
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
4
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
5
45419-80
BOLT FORK
6
45733-48
SEAL OIL, BOLT
7
45803-97
STOP LOWER
8
45838-77
BOLT FRONT FORK
9
45842-77A
RING RETAINING, OIL-SEAL
10
45845-77
Уплотнительное кольцо
11
45858-77
SCREW DRAIN, W/ COPPER WASHER
12
45859-77A
RING PISTON DAMPER TUBE
13
45865-84
SPACER SEAL
14
45866-84
BUSHING SLIDER
15
45875-84A
SEAL OIL
16
45890-97
TUBE ASSEMBLY STANCHION, W/ 45866-84
17
45933-86
SPRING REBOUND
18
45940-84
BUSHING GUIDE
19
45891-97
DAMPER TUBE W/ 45859-77A
20
45892-02
SPRING FORK
21
46240-02A
FORK ASSEMBLY LEFT
22
46241-02A
FORK ASSEMBLY RIGHT
23
45500169
SLIDER,LH/FRT FORK,CHRM
25
46658-07
HOLDER RIGHT AXLE
26
59481-00
REFLECTOR RIGHT
26
59482-00
REFLECTOR LEFT
