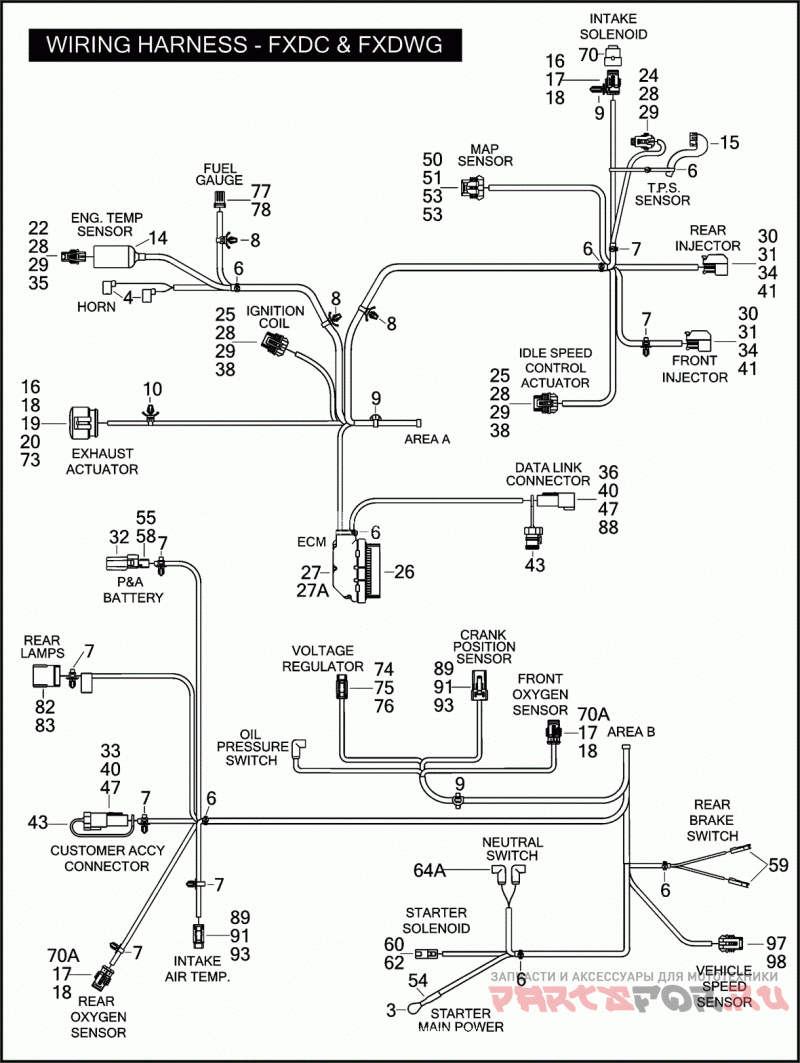

WIRING HARNESS - FXDC & FXDWG (2 of 2)

Harley Davidson FXDC 1GV4 DYNA SUPER GLIDE CUSTOM (2007)

Harley Davidson
#oem кодцена
69603-07
MAIN WIRING HARNESS (CONTINUED)
51
72214-94
CABLE SEAL
52
72230-98
HOUSING SEALED, 3-WAY SOCKET
53
72231-98
SECONDARY LOCK 3-WAY SOCKET
54
72249-94
SHRINK TUBE (BLACK)
55
72260-04
HOUSING 1-WAY SOCKET (GRAY)
56
72263-95
HOUSING 4-WAY SOCKET (BLACK)
57
72272-07
TERMINAL SOCKET, #14-16 AWG
58
72289-04
TERMINAL SOCKET, #10-12 AWG
59
72290-94
TERMINAL INSULATED
60
72291-94
TERMINAL #14-16 AWG, 56 SERIES
61
72292-94
TERMINAL #12 AWG, 56 SERIES
62
72295-94
HOUSING STARTER CONNECTION
63
72327-03A
CONNECTOR 3-way
64
72330-95
FUSE 15 AMP (BLUE)
64A
72405-98BK
PUSH ON 90 CONNECTOR
65
72414-07BK
HOUSING 6-WAY SOCKET (BLACK)
66
72427-00
TERMINAL .187, #22-16 AWG
67
72430-00
FUSE BLOCK
68
72432-00
FUSE BLOCK
69
72434-00
TERMINAL POWER-TIMER, #16-14 AWG
70
72469-07GY
HOUSING 8-WAY SOCKET (GRAY)
71
72516-01
DUST CAP SIREN CONNECTOR
72
72533-06
DUST CAP 2-PIN CONNECTOR
73
72553-07
DUST CAP 5-PIN CONNECTOR
73A
72611-07
TERMINAL SOCKET #16-20AWG (GOLD)
74
72612-06BK
HOUSING 2-WAY SOCKET (BLACK)
75
72652-06
SECONDARY LOCK 2-WAY SOCKET
76
72694-06
TERMINAL SOCKET, #10 AWG
77
72914-01BK
HOUSING 4-WAY SOCKET (BLACK)
78
72991-01
TERMINAL SOCKET, #18-22 AWG
79
73103-96BK
HOUSING 3-PLACE PIN (BLACK)
80
73103-96WE
HOUSING 3-WAY PIN (WHITE)
81
73104-96BK
HOUSING 4-PLACE PIN (BLACK)
82
73108-96BK
HOUSING 8-PLACE PIN (BLACK)
83
73190-96
TERMINAL PIN, #16-20 AWG
84
73301-04
HOUSING 2-WAY PIN
85
73303-04
SECONDARY LOCK 2-WAY SOCKET
86
73304-04
TERMINAL #10 AWG
87
73305-04
WIRE SEAL #10 AWG (BLUE)
88
74108-98BK
HOUSING 8-WAY PIN (BLACK)
89
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
90
74148-98
SECONDARY LOCK 8-WAY PIN
91
74152-98
SECONDARY LOCK 2-WAY SOCKET
92
74190-98
TERMINAL PIN, #16-20 AWG
93
74191-98
TERMINAL SOCKET
94
74195-98
SEAL PIN
95
74196-04
TERMINAL SOCKET, #20 AWG
96
74197-04
SECONDARY LOCK 12-WAY SOCKET
97
72033-93
SOCKET TERMINAL
98
72312-04
HOUSING 3-WAY, FEMALE
