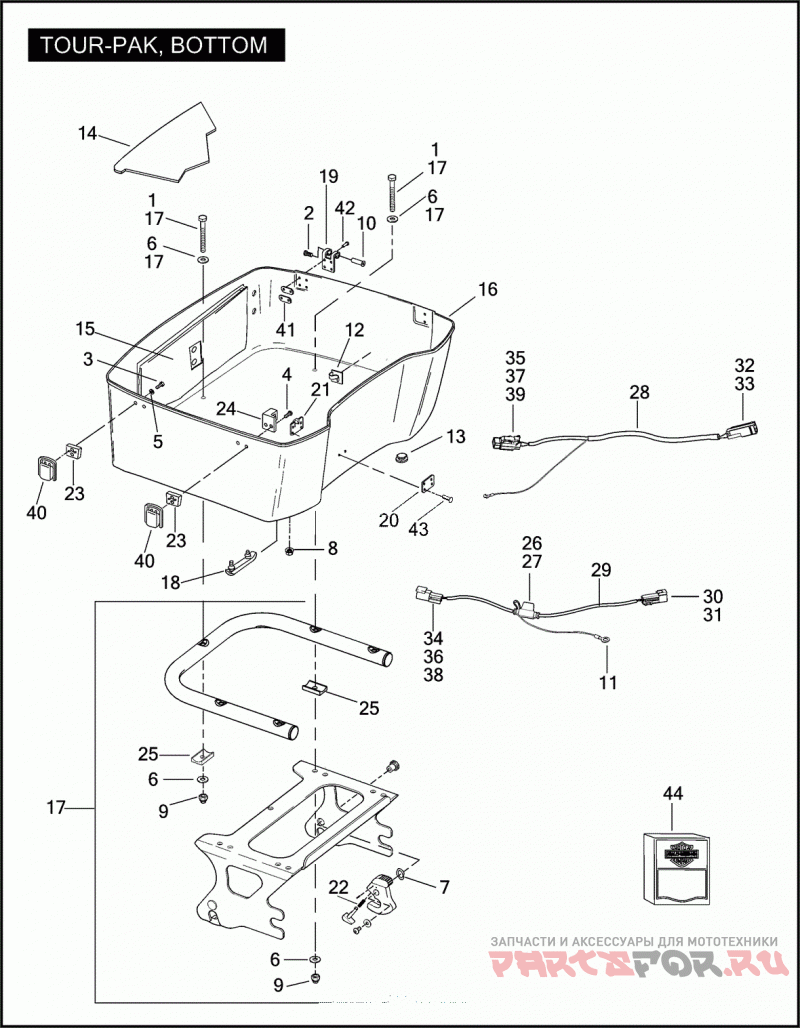

TOUR-PAK, BOTTOM

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
2821
SCREW 1/4-20 X 2-1/4 HEX HD. (GRADE 5)
2
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
3
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
4
3598
SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
5
6029
WASHER 5/32 X 3/8 X 1/32
6
6703
WASHER 1/4 X 5/8 X 1/16
7
6828
Пружинная шайба
8
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
7887
LOCKNUT 1/4-20 NYLON
10
8500A
HINGE PIN KIT W/ 3595
11
9825
TERMINAL RING
12
10102
Зажим
13
11507
Уплотнитель резиновый
14
53109-96
MAT TOUR PACK
15
53165-89A
POUCH TOUR PACK
16
53263-05BSC
BOTTOM ASSEMBLY SHORT TOUR-PACK (LIGHT CANDY CHERRY)
16
53263-05BSF
BOTTOM ASSEMBLY SHORT TOUR-PACK (SUNRISE YELLOW PEARL)
16
53263-05BSK
BOTTOM ASSEMBLY SHORT TOUR-PACK (DARK CANDY TEAL)
17
53276-04A
T-PAK MOUNTING RACK,DETACH
18
53429-93
Амортизатор ударов
19
53447-87
HINGE BOTTOM
20
53478-80
BACKING PLATE
21
53563-82
BACKET MOUNTING CABLE
22
53602-95
SPRING COMPRESSION
23
53615-85A
Проставка
24
53616-85
CATCH
25
53799-99
Проставка
26
54305-98
MINI FUSE 2AMP
27
70306-02
FUSE HOLDER
28
70934-05
WIRING HARNESS DETACH TOUR PACK ACCESSORY (INSIDE LIGHT)
29
72020-05
WIRING HARNESS DETACH TOUR PACK ACCESSORY
30
72100-04
HOUSING 1-WAY (GRAY)
31
72101-04
TERMINAL MALE
32
73102-96BK
HOUSING 2-WAY (BLACK)
33
73190-96
TERMINAL MALE
34
74102-98BK
HOUSING 2-WAY (BLACK)
35
74112-98BK
HOUSING 2-WAY (BLACK)
36
74142-98
SECONDARY LOCK
37
74152-98
SECONDARY LOCK 2-WAY
38
74190-98
TERMINAL MALE
39
74191-98
TERMINAL FEMALE
40
90649-95
Защёлка
41
90964-63
BACKING PLATE
42
90965-63
заклёпка
43
90967-64
заклёпка
44
91783-96
LINER TOUR PACK
