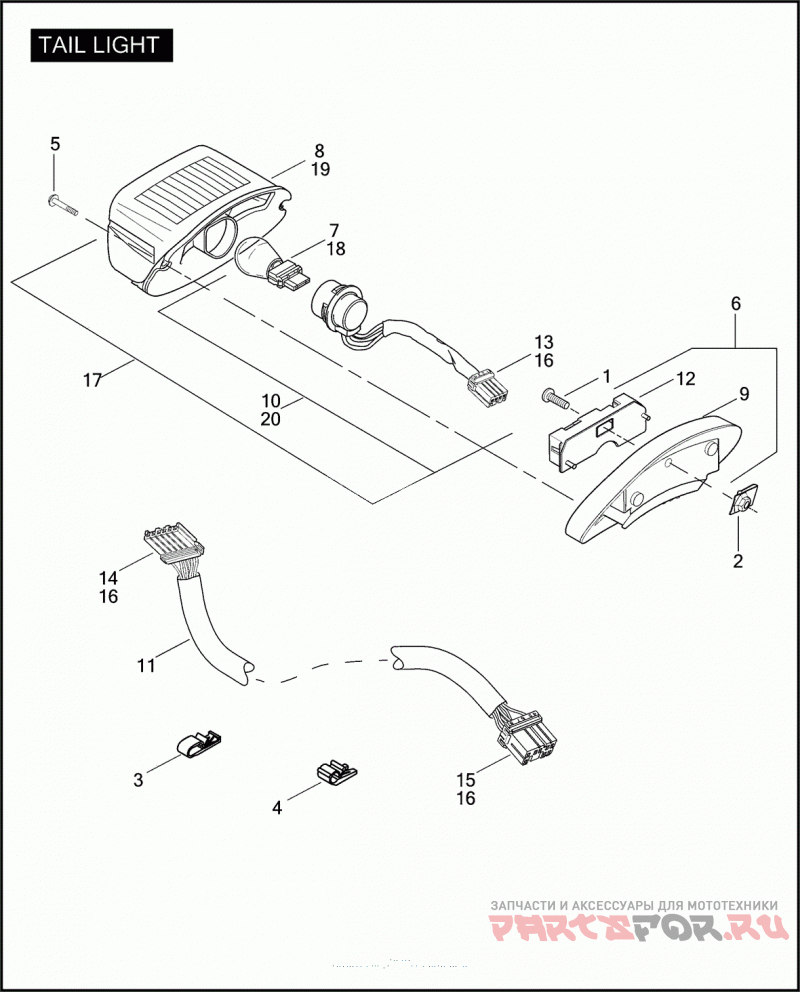

TAIL LIGHT

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
7964
J-NUT
3
10183
CLIP T-STUD
4
10184
CLIP T-STUD
5
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
6
68066-99A
TAIL LIGHT BASE ASSEMBLY W/ 68296-99A & 68830-99A
7
68167-04
BULB TAIL LIGHT, WEDGE MOUNT
8
68245-03
LENS TAIL LAMP, W/ 68026-99
9
68296-99A
TAIL LIGHT BASE (CHROME)
10
68370-03A
BULB SOCKET ASSEMBLY TAIL LIGHT, W/ 68167-04, 73154-96BK & 73191-96
11
68772-99
HARNESS REAR LIGHTS, W/ 73156-96BK, 73158-96BK & 73191-96
12
68830-99A
CIRCUIT BOARD & COVER
13
73154-96BK
SOCKET HOUSING 4-PLACE
14
73156-96BK
SOCKET HOUSING 6-PLACE
15
73158-96BK
SOCKET HOUSING 8-PLACE
16
73191-96
CONTACT SOCKET 16-20 GAUGE (DOMESTIC, HDI)
17
68142-04
LIGHT ASSEMBLY TAIL LIGHT, W/ 68558-03 & 69187-03A (HDI)
18
68167-04
BULB TAIL LIGHT, WEDGE MOUNT (HDI)
19
68558-03
LENS TAIL LIGHT, W/ 68026-99 (HDI)
20
69187-03A
BULB SOCKET ASSEMBLY TAIL LIGHT, W/ 68167-88, 73154-96BK & 73191-96 (HDI)
