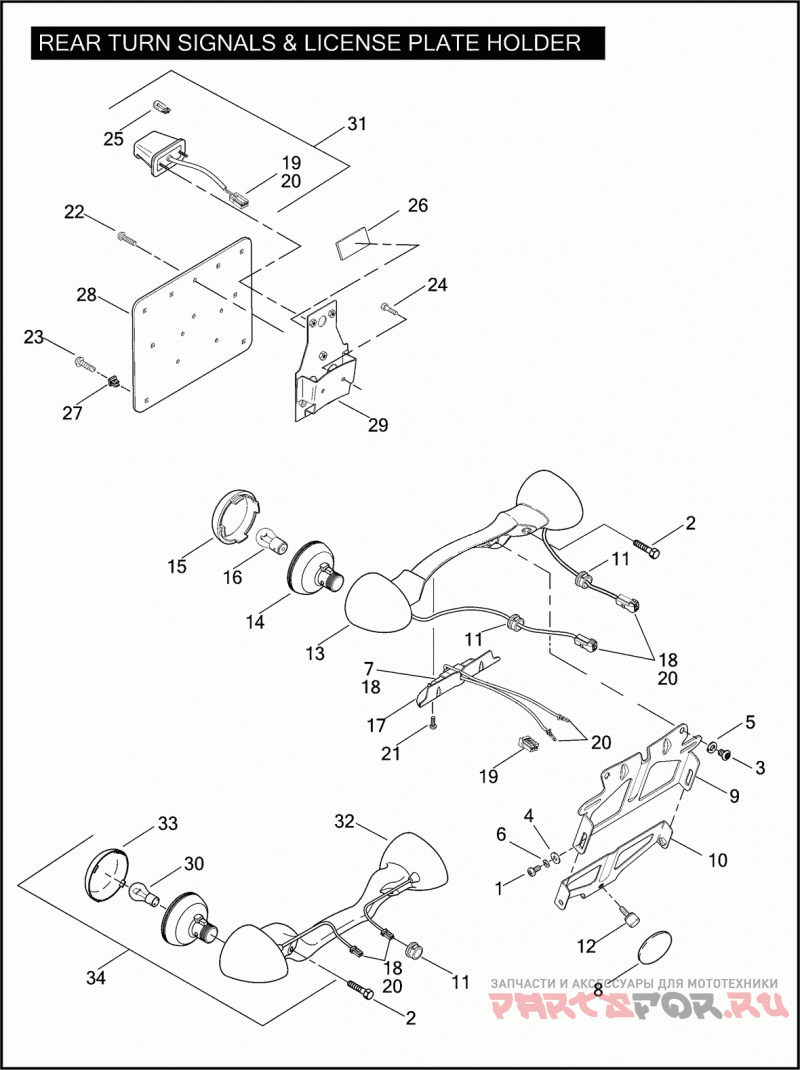

REAR TURN SIGNALS & LICENSE PLATE HOLDER

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
2660
SCREW NO. 10-24 X 3/8 PAN HD.
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
3652
SCREW 1/4-20 X 3/8 BUTTON HD. (GRADE 8)
4
6716
WASHER NO. 10 X 1/2 X 3/64
5
7036
WASHER 1/4 X 31/64 X 1/16
6
7069
LOCKWASHER NO. 10
7
52441-95
BULB BACKLITE
8
59581-05
Крышка
9
60089-05
BRACKET LICENSE PLATE TOP
10
60090-05
BRACKET LICENSE PLATE BOTTOM
11
67266-94
Втулка
12
67845-05
BUMPER RUBBER
13
68629-05
BRACKET TURN SIGNAL BAR
14
68905-00
SOCKET ASSEMBLY
15
69325-02
LENS TURN SIGNAL
16
69330-02
BULB TURN SIGNAL
17
69353-05
LIGHT ASSEMBLY
18
73152-96BK
SOCKET HOUSING 2-WAY (BLACK)
19
73153-96BK
SOCKET HOUSING 3-WAY (BLACK)
20
73191-96
SOCKET CONTACT
21
2482
SCREW, 6-32 X 5/16 socket button hd. (stainless)
22
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
23
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
24
3574
SCREW 1/4-20 X 3/4 FLANGE
25
53436-97
BULB WEDGE (HDI)
26
59259-90
REFLECTOR RED (HDI)
27
59292-94
NUT PLASTIC (HDI)
28
60026-97
PLATE LICENSE BACK (HDI)
29
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
30
68163-84
BULB TURN SIGNAL (HDI)
31
68180-99
LAMP ASSEMBLY LICENSE PLATE ILLUMINATION, W/ 53436-97, 73153-96BK & 73191-96 (HDI)
32
68508-04
BRACKET REAR TURN SIGNAL BAR (HDI)
33
68973-00
LENS REAR TURN SIGNAL (HDI)
34
68997-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68973-00, 73152-96BK, 73191-96 & SOCKET ASSEMBLIES (HDI)
