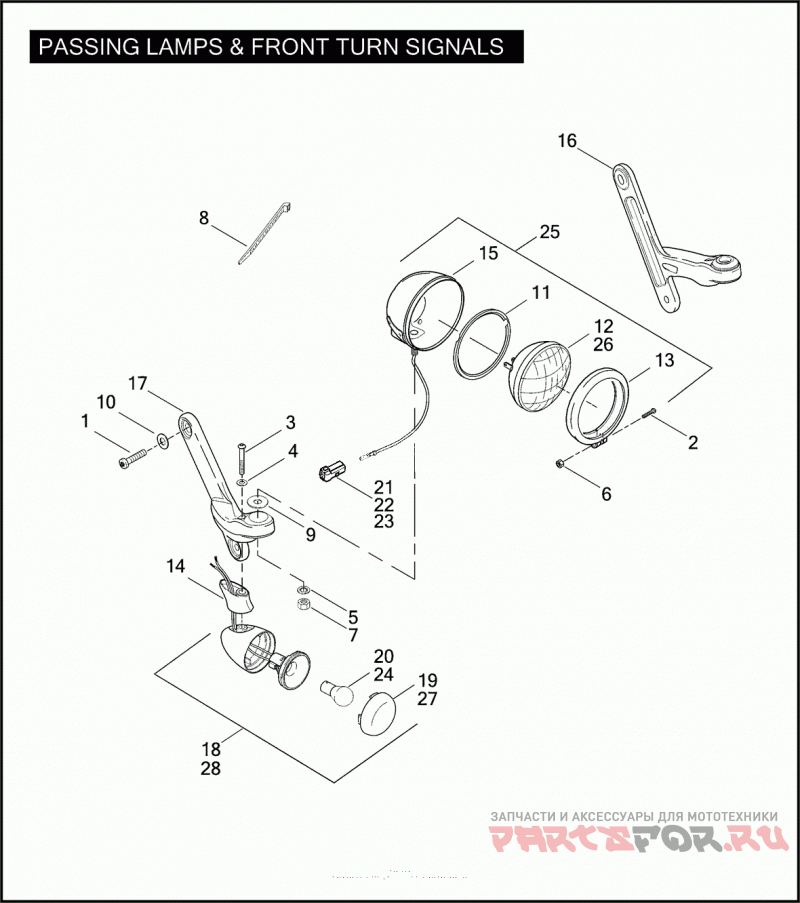

PASSING LAMPS & FRONT TURN SIGNALS

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
3337
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD., SELF-TAPPING
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
4296
SCREW 5/16-18 X 2-1/4 SOCKET BUTTON HD.
4
7041
LOCKWASHER 5/16
5
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
8
10065
CABLE STRAP
9
40901-05
ISOLATOR RUBBER
10
57920-04
Шайба
11
68331-02
RING PASSING LAMP
12
68351-05
LAMP PASSING (CLEAR)
13
68725-62A
BEZEL RING PASSING LAMP ASSEMBLY
14
68821-00
STAND OFF
15
68822-04
HOUSING PASSING LAMP ASSEMBLY
16
68836-04A
BRACKET LEFT
17
68837-04A
BRACKET RIGHT
18
69218-04
TURN SIGNAL ASSEMBLY FRONT, W/ 69325-02 & 69331-02
19
69325-02
LENS TURN SIGNAL
20
69331-02
BULB TURN SIGNAL (AMBER)
21
73152-96WE
SOCKET HOUSING 2-WAY
22
73156-96BK
SOCKET HOUSING 6-WAY
23
73191-96
TERMINAL SOCKET
24
68163-84
BULB TURN SIGNAL (HDI)
25
68846-98C
FOGLAMP ASSEMBLY W/ 3514, 7606, 68331-02, 68725-62A & 68847-98A (2) (HDI)
26
68847-98A
FOGLAMP BULB (HDI)
27
68973-00
LENS (HDI)
28
69231-04
TURN SIGNAL ASSEMBLY FRONT (AMBER), W/ 68163-84 & 68973-00 (HDI)
