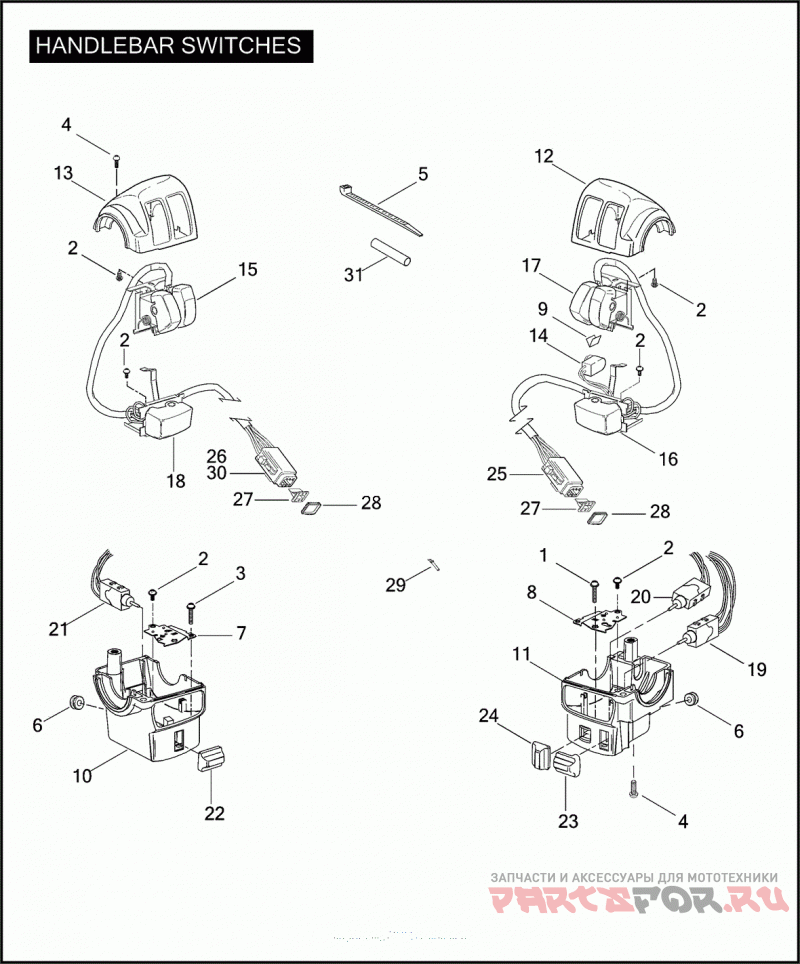

HANDLEBAR SWITCHES

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
2559
SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
2960
SCREW NO. 6-32 X 5/8 PAN HD.
4
4292
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
5
10006
STRAP CABLE
6
11402
GROMMET 3/16 INCH I.D.
7
70372-96
BRACKET SWITCH, LOWER LEFT
8
70375-96
BRACKET SWITCH, LOWER RIGHT
9
71587-04
V-CLIP
10
71611-96A
HOUSING LOWER LEFT
11
71612-96
HOUSING LOWER RIGHT
12
71614-96
HOUSING UPPER RIGHT
13
71615-96
HOUSING UPPER LEFT
14
71621-08
SWITCH KIT STOP LAMP, W/ 10181 & 72266-94
15
71682-06A
SWITCH KIT HEADLAMP HIGH/LOW AND HORN, W/ 10181 & 72266-94
16
71683-06A
SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
17
71684-06A
SWITCH KIT ENGINE START/OFF/RUN, W/ 10181 & 72266-94
18
71685-06A
SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
19
71787-08
SWITCH KIT MODE SELECT, W/ 10181 & 72266-94
20
71788-08
SWITCH ASSEMBLY CRUISE CONTROL, SET/RESUME, W/ 10181 & 72266-94
21
71810-08
SWITCH KIT VOLUME, W/ 10181 & 72266-94
22
71821-98
KNOB AUDIO
23
71822-98
KNOB FUNCTION
24
71825-96A
KNOB CRUISE CONTROL, SET/RESUME
25
72119-94BK
HOUSING SOCKET, 12-WAY (BLACK)
26
72139-94GY
SOCKET HOUSING 12-WAY (GRAY)
27
72159-94
LOCK SECONDARY, SOCKET HOUSING, 12-WAY
28
72179-94
SEAL FRONT, SOCKET HOUSING, 12-WAY
29
72191-94
TERMINAL SOCKET, FORMED
30
72195-94
PLUG SEAL
31
72266-94
TUBE HEAT SHRINK, DUAL WALL, 0.3 X 2 INCH (BLACK)
