FOOTBOARDS для мотоциклов Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005) (2005)

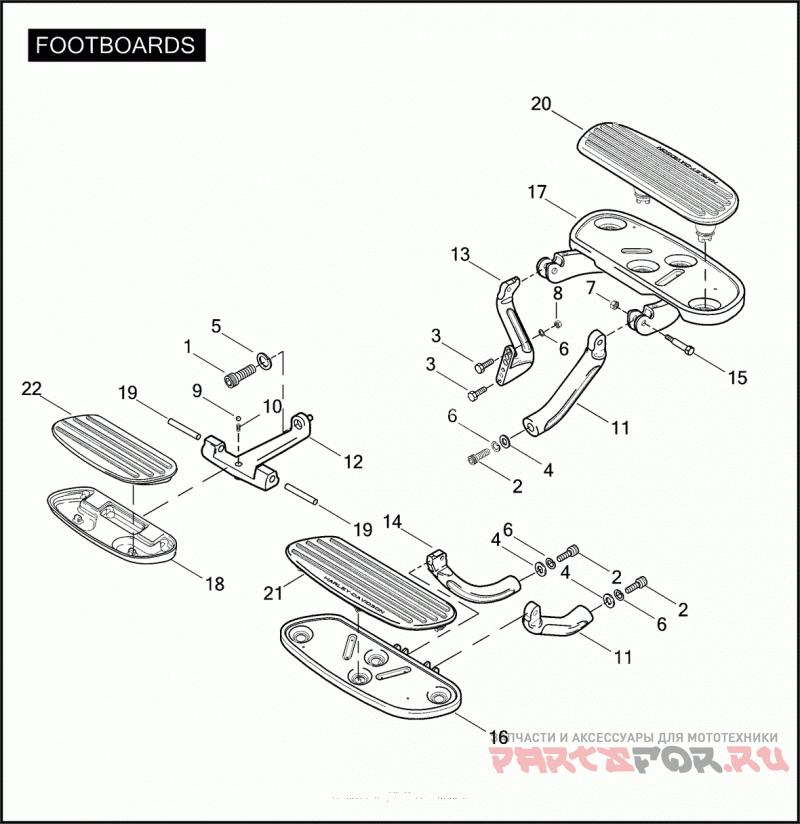

FOOTBOARDS

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

oem код

название

цена

861A

SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)

3599

SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)

4017

BOLT 5/16-18 X 1 HEX HD. (GRADE 5)

6738

WASHER 17/32 X 7/8 X 7/64

7038

LOCKWASHER 3/8

7041

LOCKWASHER 5/16

7716

LOCKNUT 1/4-20 X 7/16 FLANGE

7748W

NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)

8861

Шарик

33085-74

Пружина

47370-04

BRACKET SUPPORT FOOTBOARD, FRONT

47373-04

SUPPORT FOOTBOARD, PASSENGER

50570-04

BRACKET SUPPORT, FOOTBOARD, REAR LEFT

50571-04

BRACKET SUPPORT FOOTBOARD, REAR RIGHT

50635-82A

BOLT FOOTBOARD HINGE

50683-04

BOTTOM ASSEMBLY RIGHT WITH HINGE

50688-04

BOTTOM ASSEMBLY LEFT WITH HINGE

50700-04

FOOTBOARD PASSENGER, LEFT

50701-04

FOOTBOARD PASSENGER, RIGHT (NOT ILLUSTRATED)

50938-04

PIVOT PIN

51055-04

INSERT ASSEMBLY LEFT

51057-04

INSERT ASSEMBLY RIGHT

51059-04

INSERT ASSEMBLY PASSENGER LEFT (NOT ILLUSTRATED)

51085-04

INSERT ASSEMBLY PASSENGER RIGHT
