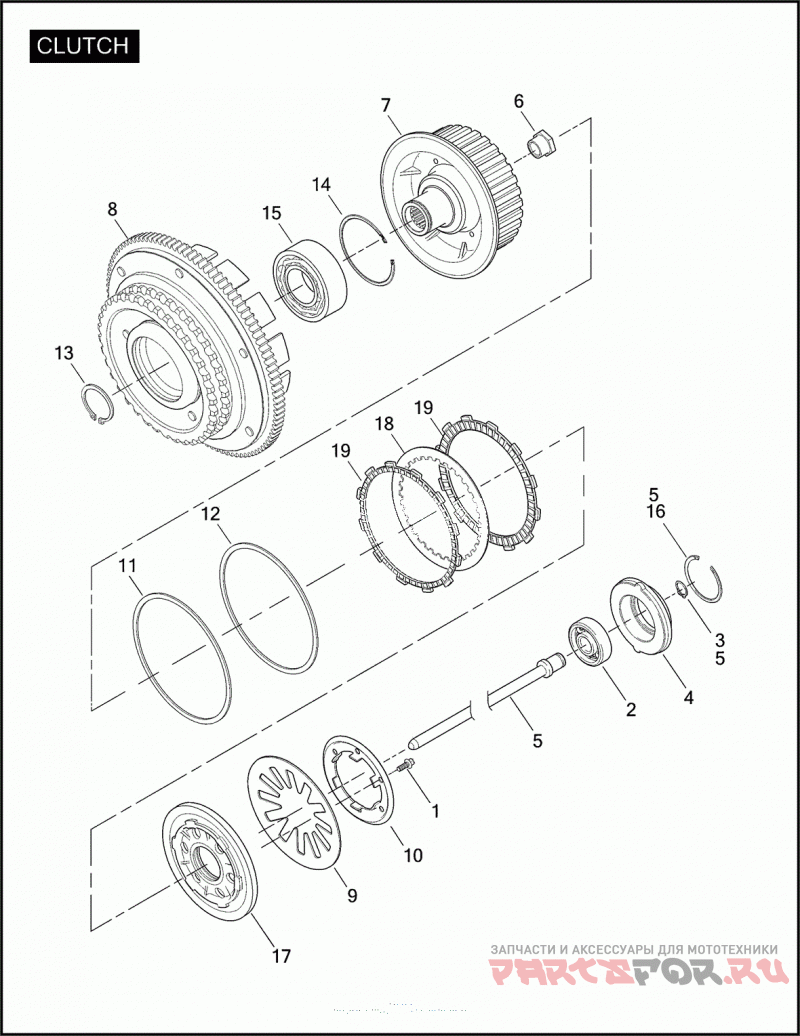

Сцепление

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
2980
Деталь SCREW M6 X 1 X 16MM HEX FLANGE HD.
2
8885
Подшипник
3
11143
Деталь RING RETAINING, EXTERNAL
4
36731-91
Деталь PLATE RELEASE
5
36818-03
Деталь PUSH ROD KIT HYDRAULIC CLUTCH, W/ 11143, 37909-90 & PUSH ROD
6
37496-90A
Деталь NUT, mainshaft
7
37550-98
Деталь HUB ASSEMBLY CLUTCH WITH THRUST WASHER & SPRING WASHER
8
37707-98A
Деталь CLUTCH ASSEMBLY OUTER, W/ 37905-00 & 37906-90
8
37806-03
Деталь CLUTCH ASSEMBLY COMPLETE (INCLUDES ALL PARTS EXCEPT 11143 & PUSH ROD)
9
37807-03
Деталь SPRING CLUTCH (PINK)
10
37872-00
Деталь SEAT CLUTCH SPRING
11
37883-98
Деталь SEAT DAMPER SPRING
12
37884-98
Деталь SPRING DAMPER
13
37904-90
Деталь RING RETAINING, EXTERNAL
14
37905-00
Деталь RING RETAINING, INTERNAL
15
37906-90
Деталь BEARING BALL, DOUBLE ROW
16
37909-90
Деталь RING RETAINING, INTERNAL
17
37912-00
Деталь PRESSURE-PLATE CLUTCH
18
37913-98
Деталь PLATE CLUTCH (STEEL)
19
37932-98
Деталь FRICTION-PLATE KIT CLUTCH (INCLUDES ALL 9 FRICTION PLATES)
