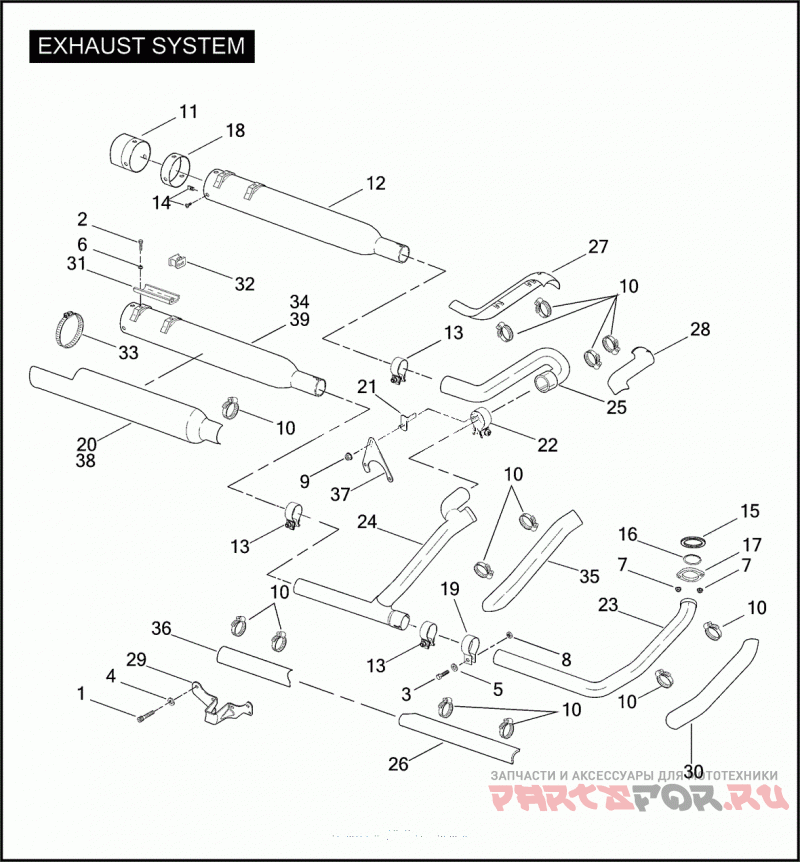

Глушитель

Harley Davidson FLHTCSE2 1PKE CVO ELECTRA GLIDE (2005)

Harley Davidson
#oem кодцена
1
3249
SCREW 5/16-18 X 1-3/16 SOCKET HD. (GRADE 8)
2
3929
SCREW 5/16-18 X 1/2 HEX HD.
3
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
4
6016
WASHER 11/32 X 11/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7041
LOCKWASHER 5/16
7
7593
NUT 5/16-24 FLANGE
8
7742
LOCKNUT 1/4-20 X 7/32 X 7/16
9
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
10
9955
CLAMP SHIELD
11
65063-04
END CAP
12
65254-00A
MUFFLER (CHROME) (DOMESTIC)
13
65296-95A
CLAMP RING
14
65315-96
END CAP HARDWARE KIT
15
65324-83B
GASKET EXHAUST PORT
16
65325-83A
RETAINING RING EXHAUST GASKET
17
65328-83A
CLAMP exhaust port
18
65332-00
RING RETENTION
19
65519-52C
CLAMP PIPE TO BRACKET
20
65614-00
SHIELD MUFFLER, RIGHT (USE 65829-00)
20
65639-00
SHIELD MUFFLER, LEFT (USE 65829-00)
20
65829-00
KIT, MUFFLER SHIELDS W/ 9955, 65614-00, 65639-00 & 65737-00 (NOT SHOWN)
20
65738-05
SHIELD MUFFLER, RIGHT (CALIFORNIA)
20
65739-05
SHIELD MUFFLER, LEFT (CALIFORNIA)
21
65619-98
BRACKET TAB EXHAUST MOUNT AT STARTER
22
65620-98A
CLAMP & BRACKET EXHAUST MOUNT AT STARTER
23
65621-99B
EXHAUST PIPE RIGHT, FRONT
24
65626-98C
EXHAUST PIPE RIGHT, REAR
25
65627-99A
EXHAUST PIPE LEFT
26
65634-98A
SHIELD RIGHT EXHAUST PIPE, FRONT
27
65636-99
SHIELD LEFT EXHAUST PIPE, REAR
28
65647-98
SHIELD LEFT EXHAUST PIPE, FRONT
29
65678-85D
BRACKET REAR EXHAUST PIPE
30
65694-05A
SHIELD FRONT EXHAUST PIPE
31
65723-85
MOUNTING BRACKET
32
65724-85A
MOUNT RUBBER
33
65737-00
CLAMP WORM DRIVE
34
65936-03
MUFFLER CATALYTIC (CHROME) (CALIFORNIA)
35
65951-98A
HEAT SHIELD REAR EXHAUST PIPE
36
65952-98A
HEAT SHIELD EXHAUST PIPE, RIGHT REAR LOWER
37
65988-98
SUPPORT BRACKET EXHAUST MOUNT AT STARTER
38
65742-05
SHIELD MUFFLER RIGHT (HDI)
38
65743-05
SHIELD MUFFLER LEFT (HDI)
39
65863-04
MUFFLER ASSEMBLY RIGHT, CATALYTIC (CHROME) (HDI)
39
65949-04
MUFFLER ASSEMBLY LEFT, CATALYTIC (CHROME) (HDI)
