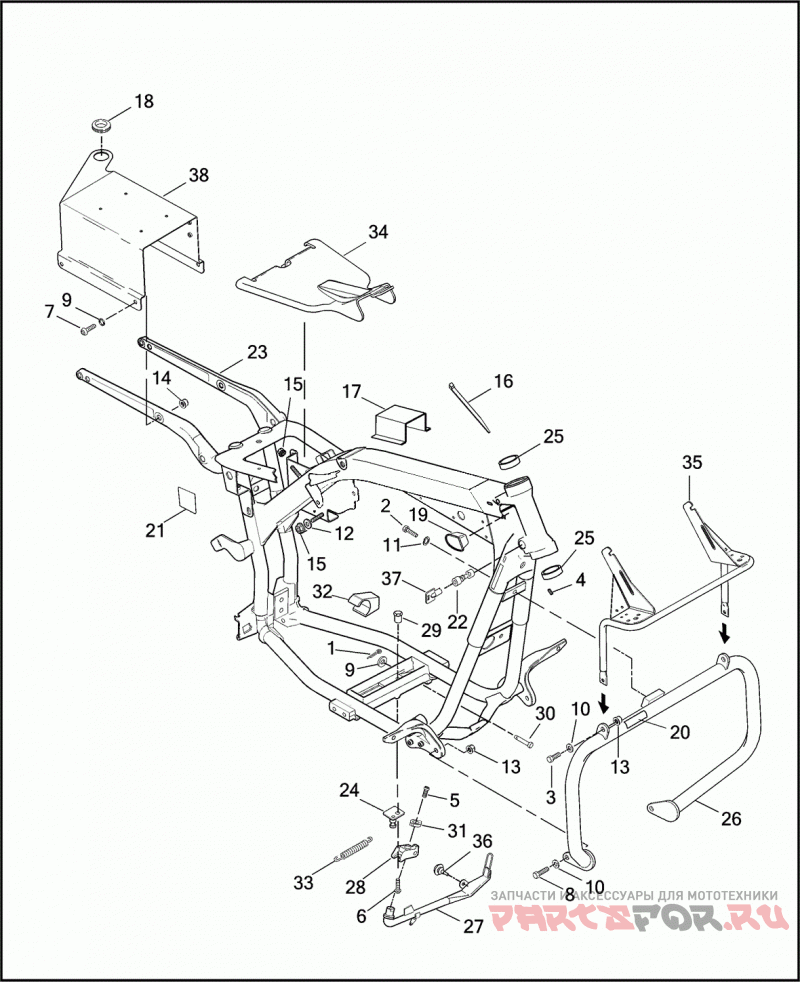

FRAME & JIFFY STAND

Harley Davidson FXDP 1GKV DYNA DEFENDER (2001)

Harley Davidson
#oem кодцена
1
554A
Шплинт
2
2851
BOLT 3/8-16 X 7/8 HEX HD. (GRADE 5)
3
2879W
BOLT 3/8-16 X 1 HEX HD. (GRADE 5)
4
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
5
3487
BOLT 5/16-24 X 5/8 HEX HD., W/LOCKPATCH
6
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
7
4098
SCREW 3/8-16 X 1-1/ 4 SOCKET BUTTON HD. (GRADE 8)
8
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
9
6379W
WASHER 3/8 X 5/8 X 3/64
10
6701
WASHER 3/8 X 13/16 X 1/16
11
7038
LOCKWASHER 3/8
12
7127
LOCKWASHER 5/16 INTERNAL TOOTH
13
7601
LOCKNUT 3/8-16 FLANGE
14
7601
LOCKNUT 3/8-16 FLANGE
15
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
16
10006
CABLE STRAP
16
10039
CABLE STRAP
16
10073
CABLE STRAP
17
10186
CLIP WIRE SADDLE
18
11503
Уплотнитель резиновый
19
11457
PLUG STEERING HEAD
20
14148-86
Лейбл
21
14273-96
IGNITION LABEL HOLE COVER
22
45680-90
FORK LOCK (SPECIFY KEY CODE)
23
47456-99A
FRAME 28 DEGREE RAKE
24
47318-98
Фиксатор
25
48315-60
BEARING CUP STEERING HEAD
26
49009-01A
ENGINE GUARD ASSEMBLY
27
49710-94B
LEG JIFFY STAND, LONG
28
49720-90
PIVOT BLOCK
29
49723-98
THREADED SPACER
30
50003-89B
Штифт
31
50053-90
CATCH
32
50054-01
Амортизатор ударов
33
50057-91
Пружина
34
52575-01
COVER SEAT PLASTIC
35
58021-01
BRACKET MOUNTING WINDSHIELD/LAMP
36
62123-66A
Амортизатор ударов
38
76162-01
BRACKET MOUNTING RADIO
