ELECTRONIC IGNITION SYSTEM для мотоциклов Harley Davidson FXDS-CONV GGLP Dyna Glide Convertible (1993) (1993)

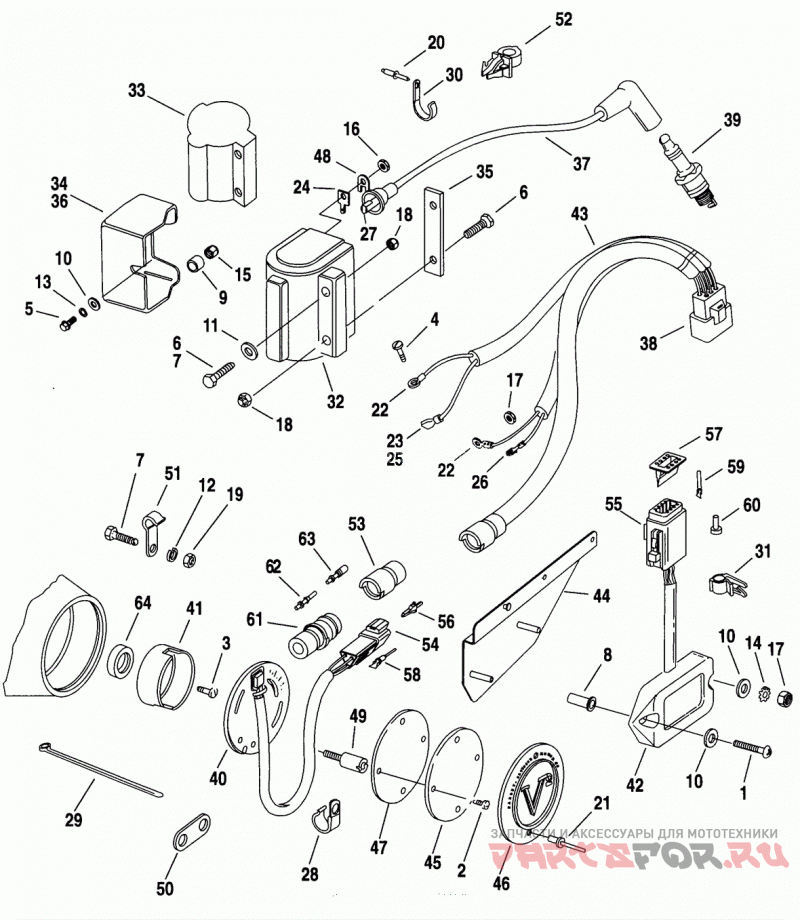

ELECTRONIC IGNITION SYSTEM

Harley Davidson FXDS-CONV GGLP Dyna Glide Convertible (1993)

oem код

название

цена

1601

SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)

2611C

BOLT, No. 10-32 X 3/4 hex. washer hd. (Grade 5 steel)

4091

BOLT, No. 10-24 X 1/2 hex. washer hd. (self-tapping)

3473

BOLT, No. 10-32 X 1/2 hex. washer hd. Grade 2 steel)

4741A

SCREW, 1/4-20 X 1 hex socket hd (w/lockpatch)

6058

Проставка

6716

WASHER, No. 10 X 1/2 X 3/64

7069

LOCKWASHER, No. 10

7626W

LOCKNUT, 3/16-32 (nylon) (Grade 6)

7634

NUT, No. 10-32 X 5/16 hex. (brass)

8699

RIVET, timer cover

9857

TERMINAL, ring type (2-FLT, FXR)

9863

TERMINAL, female spade type

9907

TERMINAL, female spade type

CLIP, sensor wire

CABLE STRAP

Катушка зажигания

COVER, coil (chrome)

NUT PLATE

SPARK PLUG CABLE FRONT CYLINDER

31983-71C

SPARK PLUG CABLE REAR CYLINDER

31998-91A

INSULATOR, receptacle housing

32404-90

SENSOR ASSEMBLY w/o receptacle

32402-83

Ротор

32405-91B

IGNITION MODULE

70339-91B

WIRING HARNESS IGNITION MODULE

COVER inner

TIMER COVER

GASKET, timer cover

SCREW, timer plate

RECEPTACLE - three-way

74521-77A

PLUG, three-way - sensor

74536-77A

PIN, single socket

74539-77A

SOCKET, single pin

83162-51

Сальник
