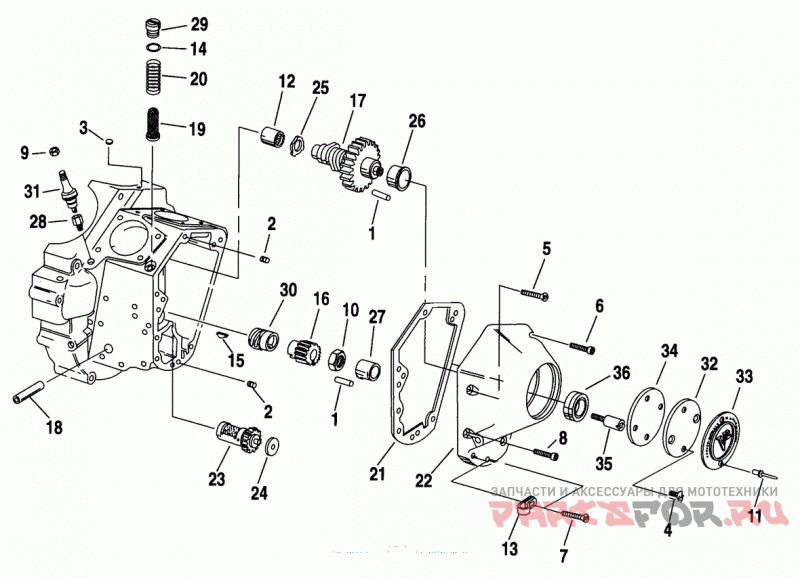

CRANKCASE - GEAR SIDE

Harley Davidson FXDS-CONV GGLP Dyna Glide Convertible (1993)

Harley Davidson
#oem кодцена
2
358
Палец
3
653
Деталь PLUG, crankcase
4
1601
Деталь SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)
5
3480A
Деталь SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)
6
4813A
Деталь SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)
7
4718A
Деталь SCREW, 1/4-20 X 1-1/2 knurled socket hd. w/ washer (w/lockpatch)
8
4740A
Деталь SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch)
9
7629
Деталь NUT, #10-32 X 3/16 X 3/8 hex.
10
7916A
Деталь JAM NUT, 5/8-18 (locking)
11
8699
Деталь RIVET, ignition cover
12
9058A
Деталь NEEDLE BEARING crankcase cam cover
13
10046
Деталь CLAMP, ignition wire
14
11105
Уплотнительное кольцо
15
11219
Деталь T-KEY
16
24040-93
Деталь PINION GEAR, 1.4850-53 pd. (orange)
16
24041-93
Деталь PINION GEAR, 1.4846-49 pd. (white)
16
24042-93
Деталь PINION GEAR, 1.4842-45 pd. (yellow)
16
24043-93
Деталь PINION GEAR, 1.4838-41 pd. (red)
16
24044-93
Деталь PINION GEAR, 1.4834-37 pd. (blue)
16
24045-93
Деталь PINION GEAR, 1.4830-33 pd. (green)
16
24046-93
Деталь PINION GEAR, 1.4826-29 pd. (black)
17
24581-93
Деталь SET OF CAM & PINION GEARS (matched) (Cal. only)
17
24586-93
Деталь SET OF CAM & PINION GEARS (matched)
18
24641-36
Деталь BUSHING, oil pump shaft
19
24981-70
Деталь OIL SCREEN, crankcase
20
24982-70
Деталь SPRING, oil screen
21
25225-93B
Деталь GASKET, gear cover
22
25256-93A
Деталь GEAR COVER, (chrome)
23
25310-82A
Деталь BREATHER VALVE GEAR
24
25320-82
Деталь THRUST WASHER, brthr valve - 0.130in. thk.
24
25321-82
Деталь THRUST WASHER, brthr valve - 0.135in. thk.
24
25322-82
Деталь THRUST WASHER, brthr valve - 0.140in. thk.
24
25323-82
Деталь THRUST WASHER, brthr valve - 0.145in. thk.
24
25325-82
Деталь THRUST WASHER, brthr valve - 0.150in. thk.
24
25326-82
Деталь THRUST WASHER, brthr valve - 0.155in. thk.
24
25327-82
Деталь THRUST WASHER, brthr valve - 0.160in. thk.
24
25328-82
Деталь THRUST WASHER, brthr valve - 0.165in. thk.
25
25550-57A
Деталь THRUST WASHER, cam gear
26
25581-70
Деталь BUSHING, gear cover
27
25582-93
Деталь BUSHING, gear cover pinion shaft
29
26263-80
Деталь PLUG, oil screen
30
26354-93
Деталь DRIVE GEAR, oil pump
31
26561-84
Датчик давления масла
32
32504-80A
Деталь COVER inner
33
32524-83
Деталь TIMER COVER
34
32591-80
Деталь GASKET, ignition cover
35
32606-82
Винт
36
83162-51
Деталь OIL SEAL, bearing
