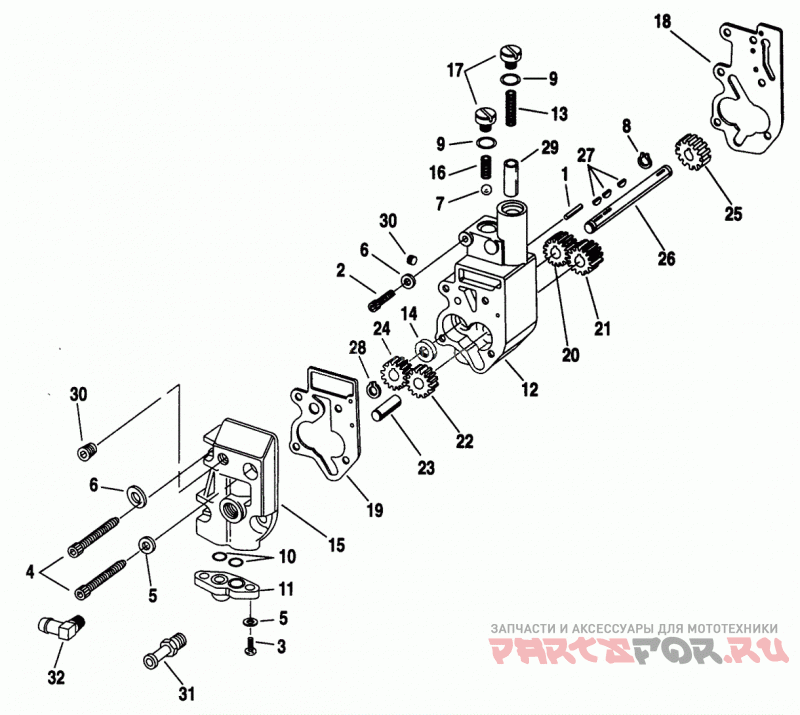

Масляный насос

Harley Davidson FXDS-CONV GGLP Dyna Glide Convertible (1993)

Harley Davidson
#oem кодцена
1
239
PIN, valve stop
2
891
SCREW, 1/4-20 X 1-3/4 socket hd. (Grade 8 steel)
3
927A
SCREW, 1/4-20 X 3/4 button hd. (Grade 8 steel)
4
4742A
SCREW, 1/4-20 X 2-1/4 knurled socket hd. (w/lockpatch)
5
6099
WASHER, 1/4 X 7/16 X 1/16
6
6239
WASHER, 1/4 X 1/2 X 3/32
7
8873
BALL, check valve - 3/8in. dia.
8
11002
RETAINING RING, oil pump
9
11105
O-RING, check valve cover screw
10
11241
Уплотнительное кольцо
11
26030-92
END CAP (black wrinkle)
12
26050-92
OIL PUMP (blk wrkl)
12
26053-92
Масляный насос
13
26225-92
BODY, oil pump
13
26226-92
BODY, oil pump (blk wrkl)
14
26207-83
SPRING, relief valve
15
26227-58
Сальник
16
26267-92
COVER, oil pump (black wrinkle)
17
26262-80
SPRING, check valve
18
26263-80
COVER SCREW, check & relief valves
19
26273-92A
GASKET, body (paper)
21
26315-68A
DRIVE GEAR
22
26317-68A
IDLER GEAR
23
26326-62A
DRIVE IDLER GEAR
24
26327-68
Вал
25
26328-74
DRIVE GEAR
26
26345-73
DRIVE GEAR, 24 T
27
26346-70
DRIVE SHAFT
28
26348-15
KEY, drive shaft
29
26348-36
RETAINING RING, drive shaft
30
26400-82B
RELIEF VALVE, oil pump
31
45830-48
Заглушка
33
63554-90
FITTING 90 degree elbow
