Редуктор для лодочных моторов Suzuki Marine DF250/DF300 AP (2015)

Москва и регионы России

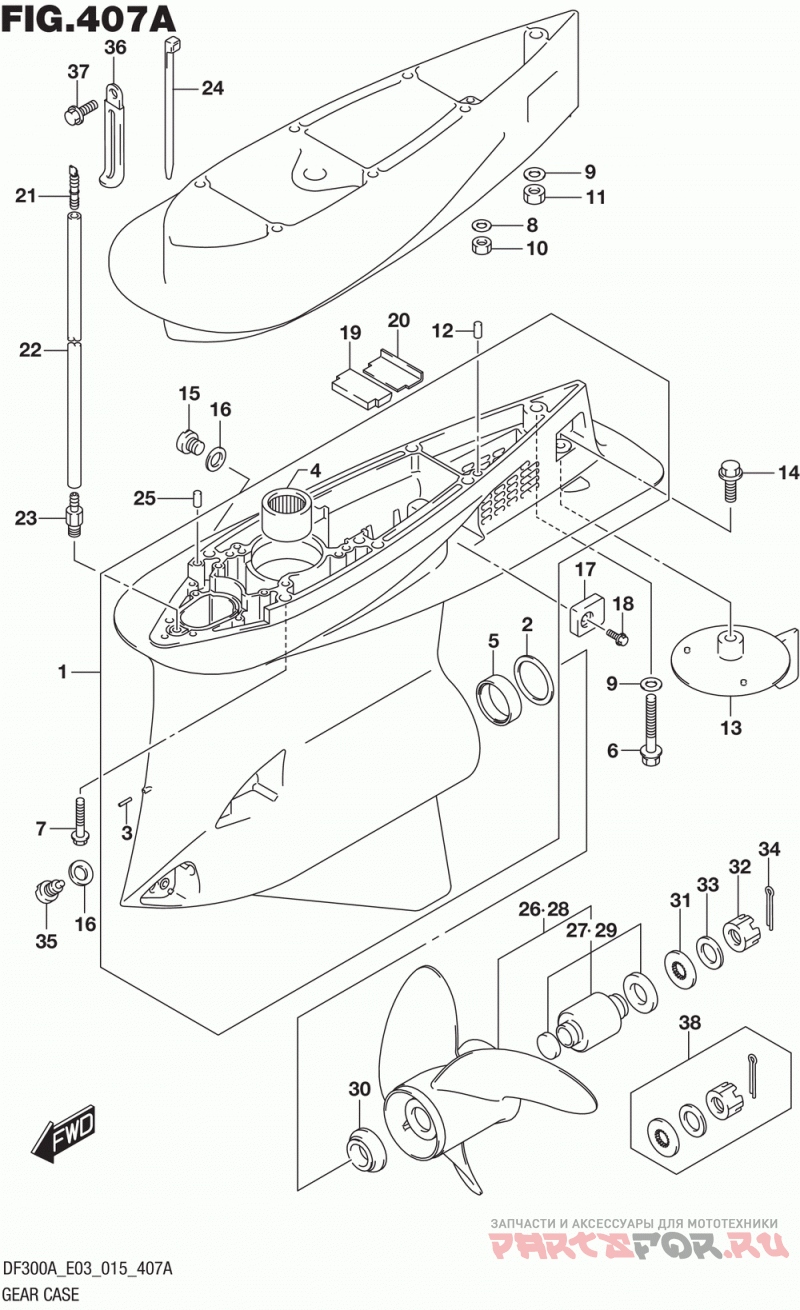

Редуктор

Suzuki Marine DF250/DF300 AP

Редуктор

#

oem код

название

цена

1-1

55110-93L00-0EP

Case, Gear Black

Case, Gear Black

1-2

55110-93L00-Y5S

Case Comp, Gear

Case Comp, Gear

2

Washer, Forward

Washer, Forward

3

4

Bearing, 35x56x3

Bearing, 35x56x3

5

Bearing, 80x100x

Bearing, 80x100x

6

Bolt L:70(sus) (w/transom(x))

Bolt L:70(sus) (w/transom(x))

7

Bolt, 10x55 (w/transom(x))

Bolt, 10x55 (w/transom(x))

8

Washer, 10.5x19x (w/transom(xx))

Washer, 10.5x19x (w/transom(xx))

9

Шайба

Шайба

10

Nut (w/transom(xx))

Nut (w/transom(xx))

11

Nut (w/transom(xx))

Nut (w/transom(xx))

12

Штифт

Штифт

13-1

55125-93L00-0EP

Tab, Trim

Tab, Trim

13-2

55125-93L00-Y5S

Tab, Trim

Tab, Trim

14

Bolt, 8x22

Bolt, 8x22

15

Штепсель, Дренажный

Штепсель, Дренажный

16

Gasket, Drain Pl

Gasket, Drain Pl

17

Anode, Protectio

Anode, Protectio

18

Bolt, 6 X 16

Bolt, 6 X 16

19

Rubber, Exhaust

Rubber, Exhaust

20

Plate, Exhaust S

Plate, Exhaust S

21

Union, Speedomet

Union, Speedomet

22

09355-40805-00B

Hose (l:2000->1300)

Hose (l:2000->1300)

23

Ниппель

Ниппель

24

Зажим

Зажим

25

Штифт

Штифт

26-2

990C0-00800-185

Ssprop Dfv63x16 (optw/regular Rotation)

Ssprop Dfv63x16 (optw/regular Rotation)

26-3

990C0-00800-20P

Ssprop Dfv63x16 (optw/regular Rotation)

Ssprop Dfv63x16 (optw/regular Rotation)

26-4

990C0-00800-215

Ssprop Dfv63x16 (optw/regular Rotation)

Ssprop Dfv63x16 (optw/regular Rotation)

26-8

990C0-00800-275

Ssprop Dfv63x16 (optw/regular Rotation)

Ssprop Dfv63x16 (optw/regular Rotation)

26-11

4b15.25d20p Ss (opt)

4b15.25d20p Ss (opt)

26-12

4b15.25d22p Ss (opt)

4b15.25d22p Ss (opt)

26-13

4b15.25d24p Ss (opt)

4b15.25d24p Ss (opt)

26-14

4b15.25d26p Ss (opt)

4b15.25d26p Ss (opt)

26-16

990C0-0080L-20P

Sspropcrv63x16x (opt)

Sspropcrv63x16x (opt)

26-17

990C0-0080L-215

Sspropcrv63x16x (opt)

Sspropcrv63x16x (opt)

26-22

4b15.25d20p Ss (opt)

4b15.25d20p Ss (opt)

26-23

4b15.25d22p Ss (opt)

4b15.25d22p Ss (opt)

26-24

4b15.25d24p Ss (opt)

4b15.25d24p Ss (opt)

26-25

4b15.25d26p Ss (opt)

4b15.25d26p Ss (opt)

27

Bush Set, Prop (opt)

Bush Set, Prop (opt)

28-2

990C0-00830-19P

Ssprop 3x15.25x (optw/regular Rotation)

Ssprop 3x15.25x (optw/regular Rotation)

28-5

990C0-00830-25P

Ssprop 3x14.5x2 (optw/regular Rotation)

Ssprop 3x14.5x2 (optw/regular Rotation)

28-9

990C0-0083L-21P

Ssprpcr 3x15x21 (optw/counter Rotation)

Ssprpcr 3x15x21 (optw/counter Rotation)

28-10

990C0-0083L-23P

Ssprpcr 3x14.75 (opt)

Ssprpcr 3x14.75 (opt)

29

Bush Set, Prop

Bush Set, Prop

30

Stopper, Prop Bu

Stopper, Prop Bu

31

Spacer, Nut(t:6.

Spacer, Nut(t:6.

32

Nut 18mm

Nut 18mm

33

Шайба

Шайба

34

Cotter Pin, Prop

Cotter Pin, Prop

35

Штепсель, Дренажный

Штепсель, Дренажный

36

Зажим

Зажим

37

Болт

Болт

38

Prop Hdwr V-6 M (opt)

Prop Hdwr V-6 M (opt)

39

Kit, Gear Case S (optnot Illustrated)

Kit, Gear Case S (optnot Illustrated)
