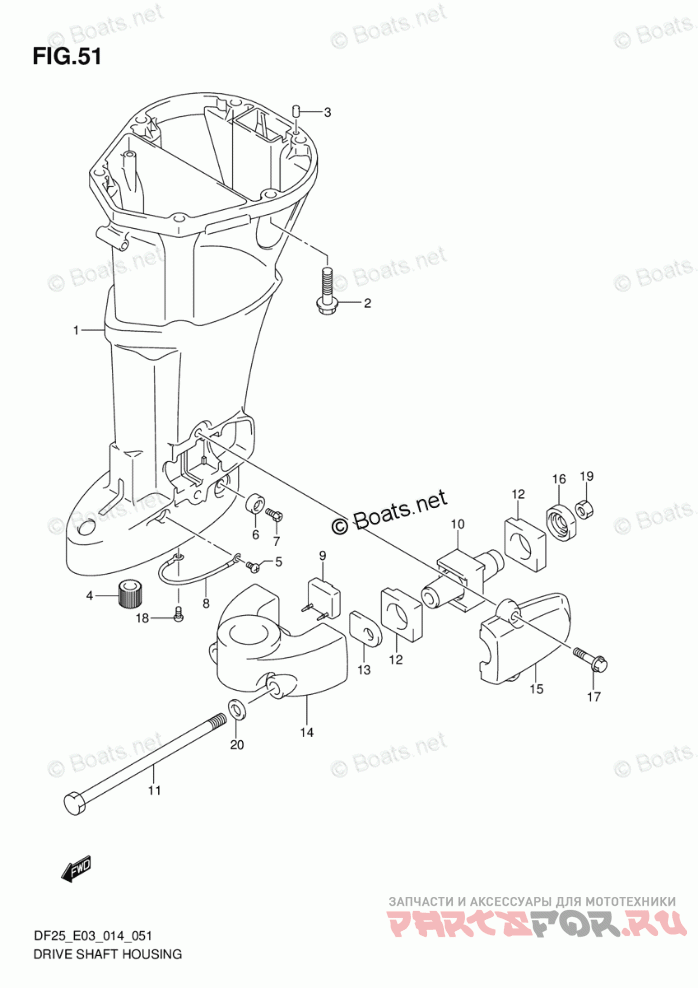

Drive Shaft Housing (DF25 E03)

Suzuki Marine DF 25QL

Suzuki Marine
#oem кодцена
1-2
52111-95J10-0EP
Деталь HOUSING, DRIVE SHAFT (L) (BLACK) *{W/TRANSOM(L)}*
1-1
52111-95J00-0EP
Деталь HOUSING, DRIVE SHAFT (S) (BLACK) *{W/TRANSOM(S)}*
2
09116-10143
Деталь BOLT (10X40)
3
09202-06023
Деталь PIN (6X10)
4
57130-96300
Деталь BUSH, DRIVE SHAFT *{W/TRANSOM(L)}*
5
09125-06063
Деталь SCREW (6X10)
6
55321-87J00
Деталь ANODE, PROTECTION
7
09103-06281
Деталь BOLT (6X14)
8
36894-87D00
Деталь LEAD, MOUNT BRACKET TO HOUSIN
9
54151-95J00
Деталь MOUNT, LOWER THRUST
10
54160-95J00
Деталь MOUNT, LOWER
11
54166-95J02
Деталь BOLT, LOWER MOUNT
12
54167-95J00
Деталь MOUNT, LOWER SIDE
13
54170-95J00
Деталь CUSHION, LOWER SIDE
14
54211-95J00-0EP
Деталь BRACKET, LOWER MOUNT (BLACK)
15
54221-95J00-0EP
Деталь COVER, LOWER MOUNT (BLACK)
16
54240-95J00
Деталь MOUNT, LOWER THRUST REV
17
29116-93J10
Деталь BOLT, LOWER MOUNT COVER (8X35
18
09125-06063
Деталь SCREW (6X10)
19
09159-12014
Деталь NUT
20
09160-12110
Деталь WASHER (12.5X22X3)
