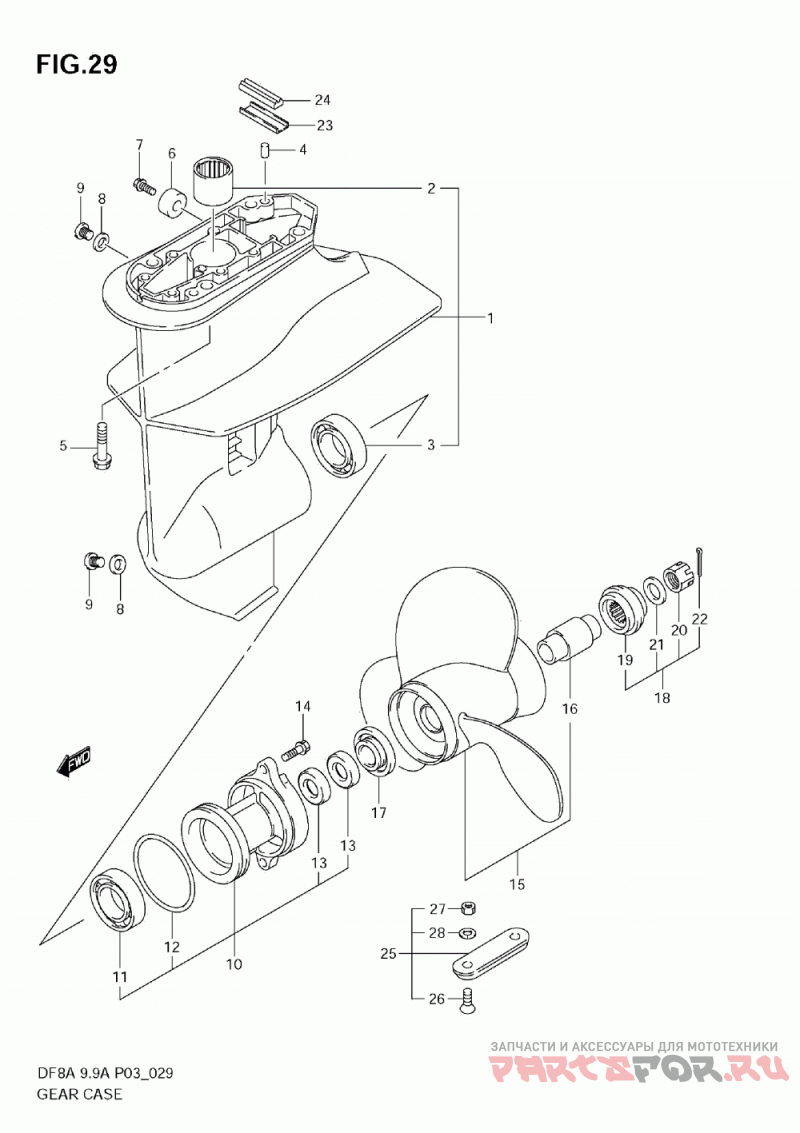

Редуктор

Suzuki Marine DF8AR

Suzuki Marine
#oem кодцена
1
55100-99J10-0EP
CASE, GEAR
4
09202-06023
PIN, KNOCK (6X10)
5
09116-08122
BOLT, GEAR CASE (8X30)
6
55321-87J00
ANODE, PROTECTION
7
09103-06281
Болт (6х14)
8
59178-97J00
GASKET, DRAIN PLUG
9
09248-08001
PLUG, DRAIN (8X7.5)
10
56120-99J20-0EP
HOUSING, PROPELLER SHAFT
10
56120-99J10-0EP
HOUSING, PROPELLER SHAFT
14
29116-93J00
Болт (6X20)
15
58100-93743-019
PROPELLER, 3X9-1-4X11 (M1101)
15
58100-93733-019
PROPELLER, 3X9-1-4X10 (M1001)
15
58100-93773-019
PROPELLER, 3X9-1-4X10 (M1011)
15
58100-94J00-019
PROPELLER, 3X9-1-4X9 (M901)
15
58100-93763-019
PROPELLER, 3X9-1-4X9 (M911)
15
58100-93703-019
PROPELLER, 3X9-1-4X7 (M701)
15
58100-91D00-019
PROPELLER, 3X9-1-4X8 (M811)
17
57632-93902
STOPPER, PROPELLER BUSH
18
57630-99J00
NUT KIT, PROPELLER
23
55331-99J00
CORE, EXHAUST SEAL
24
55332-99J00
RUBBER, EXHAUST SEAL
25
55300-95500
ZINC ASSY, PROTECTION
29
17917-87L00
CONNECTOR, FLUSH WATER
30
55321-87J10
ANODE (MAGNESIUM)
