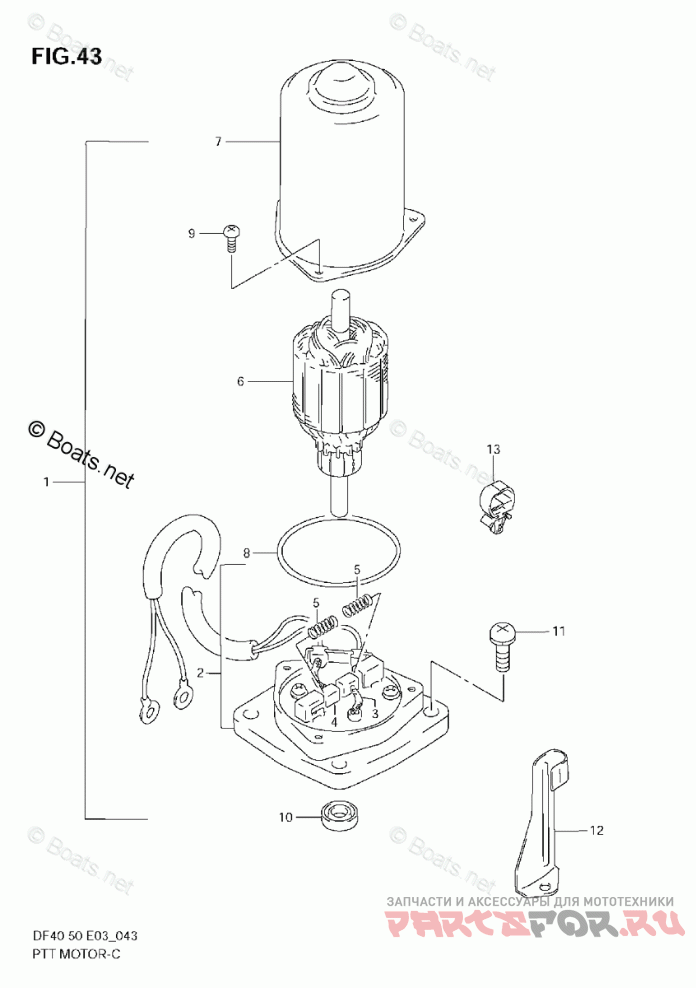

PTT Motor (Type:T Model:99,00)
Suzuki Marine DF 40TLK10
| # | oem код | название | цена |
|---|---|---|---|
1 | 38100-87J00-0EP MOTOR ASSY, PTT (BLACK) | MOTOR ASSY, PTT (BLACK) | |
2 | 31173-87J00 BRUSH HOLDER | BRUSH HOLDER | |
3 | 31133-97E00 BRUSH | BRUSH | |
4 | 31136-87J00 BREAKER | BREAKER | |
5 | 31135-97E00 SPRING | SPRING | |
6 | 31311-87J00 ARMATURE | ARMATURE | |
7 | 31110-97E00-0EP YOKE ASSY (BLACK) | YOKE ASSY (BLACK) | |
8 | 31123-97E00 O RING | O RING | |
9 | 09136-05041 SCREW (5X20) | SCREW (5X20) | |
10 | 33799-97E00 SEAL, OIL | SEAL, OIL | |
11 | 48862-97E00 SCREW, MOTOR | SCREW, MOTOR | |
12 | 38111-97E00 HOLDER, PTT CABLE | HOLDER, PTT CABLE | |
13 | 09403-14315 CLAMP | CLAMP | |
14 | SPECIAL-NOTE REFER TO FIG.44(F-13) FOR MODEL:01~10 | REFER TO FIG.44(F-13) FOR MODEL:01~10 |
