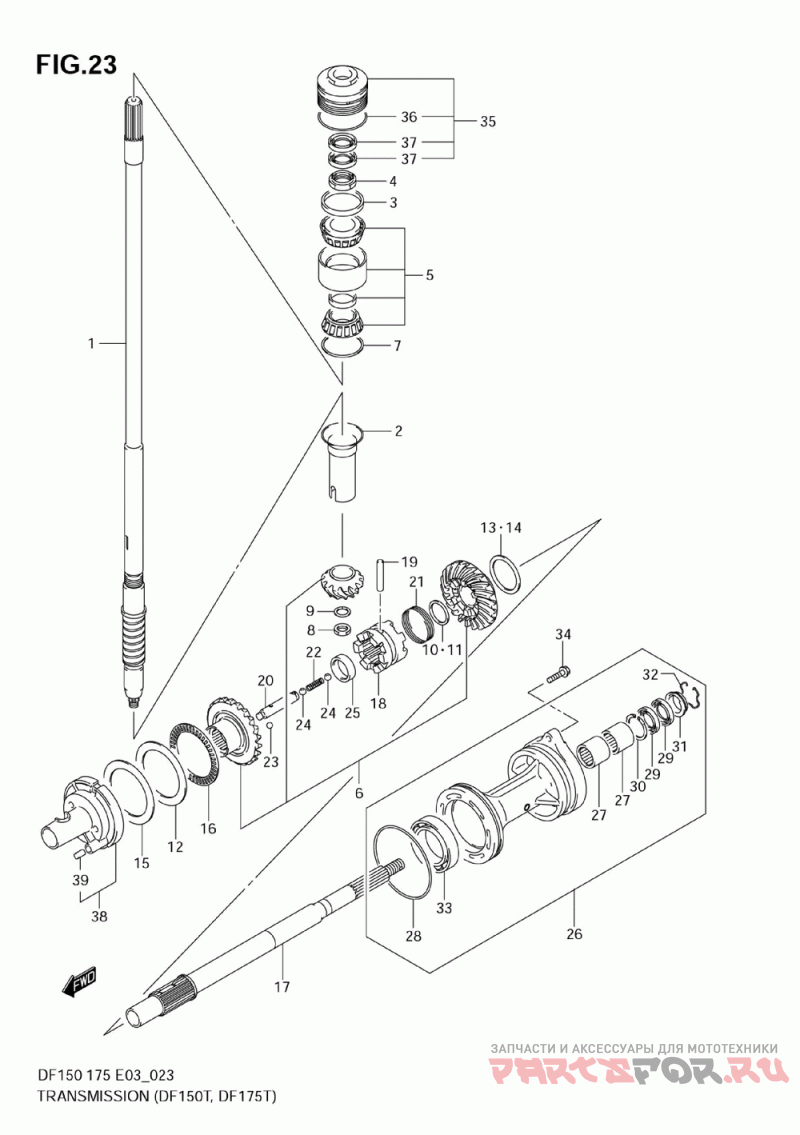

Трансмиссия
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 57110-96J40 Деталь Shaft, Drive(l) ( ) | Деталь Shaft, Drive(l) ( ) | |
1-2 | 57110-96J30 Деталь Shaft, Drive (x) ( ) | Деталь Shaft, Drive (x) ( ) | |
2 | 57133-93J00 Деталь Collar, Drive Sh ( ) | Деталь Collar, Drive Sh ( ) | |
3 | 57134-93J00 Деталь Spacer, Drive Sf ( ) | Деталь Spacer, Drive Sf ( ) | |
4 | 09159-28003 Деталь Nut, Drive Sft B ( ) | Деталь Nut, Drive Sft B ( ) | |
5 | 09269-32001 Деталь Bearing, Drive S ( (32x66x49) ) | Деталь Bearing, Drive S ( (32x66x49) ) | |
6 | 57300-96810 Деталь Pinion / Gear S ( ) | Деталь Pinion / Gear S ( ) | |
7-1 | 09181-60004 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-2 | 09181-60005 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-3 | 09181-60006 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-4 | 09181-60007 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-5 | 09181-60008 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-6 | 09181-60009 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-7 | 09181-60010 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-8 | 09181-60011 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-9 | 09181-60012 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
7-10 | 09181-60013 Деталь Shim, Drive Shaf ( ) | Деталь Shim, Drive Shaf ( ) | |
8 | 09140-16021 Деталь Nut, Pinion ( ) | Деталь Nut, Pinion ( ) | |
9 | 08221-16256 Деталь Washer, Pinion Nut ( ) | Деталь Washer, Pinion Nut ( ) | |
10 | 57500-87861 Деталь Shim Set, Revers ( ) | Деталь Shim Set, Revers ( ) | |
11-1 | 08211-30382 Деталь .washer (30x38x1.5) ( ) | Деталь .washer (30x38x1.5) ( ) | |
11-2 | 09160-30036 Деталь .washer (30x38x1.7) ( ) | Деталь .washer (30x38x1.7) ( ) | |
11-3 | 09160-30037 Деталь Washer (30x38x1.9) ( ) | Деталь Washer (30x38x1.9) ( ) | |
11-4 | 09160-30038 Деталь .washer (30x38x2.1) ( ) | Деталь .washer (30x38x2.1) ( ) | |
11-5 | 08211-30384 Деталь .washer (30x38x2.2) ( Refer To Fig.24(d- 8) For Df150z, Df175z ) | Деталь .washer (30x38x2.2) ( Refer To Fig.24(d- 8) For Df150z, Df175z ) | |
11-6 | 09160-30039 Деталь .washer (30x38x2.3) ( ) | Деталь .washer (30x38x2.3) ( ) | |
11-7 | 09160-30041 Деталь .washer (30x38x2.4) ( ) | Деталь .washer (30x38x2.4) ( ) | |
11-8 | 08211-30385 Деталь .washer (30x38x2.5) ( ) | Деталь .washer (30x38x2.5) ( ) | |
11-9 | 09160-30042 Деталь .washer (30x38x2.6) ( ) | Деталь .washer (30x38x2.6) ( ) | |
11-10 | 09160-30043 Деталь .washer (30x38x2.7) ( ) | Деталь .washer (30x38x2.7) ( ) | |
11-11 | 09160-30044 Деталь .washer (30x38x2.8) ( ) | Деталь .washer (30x38x2.8) ( ) | |
12 | 09160-75002 Деталь Washer, Thrust F (fwd Gear ) | Деталь Washer, Thrust F (fwd Gear ) | |
13 | 57500-87852 Деталь Shim Set, Revers ( ) | Деталь Shim Set, Revers ( ) | |
14-1 | 09181-50013 Деталь ( ) | Деталь ( ) | |
14-2 | 09181-50012 Деталь Shim, 50x62x1.1 ( ) | Деталь Shim, 50x62x1.1 ( ) | |
14-3 | 09181-50005 Деталь Shim, 50x62x1.2 ( ) | Деталь Shim, 50x62x1.2 ( ) | |
14-4 | 09181-50006 Деталь Shim, 50x62x1.3 ( ) | Деталь Shim, 50x62x1.3 ( ) | |
14-5 | 09181-50007 Деталь Shim, 50x62x1.4 ( ) | Деталь Shim, 50x62x1.4 ( ) | |
14-6 | 09181-50008 Деталь Shim, 50x62x1.5 ( ) | Деталь Shim, 50x62x1.5 ( ) | |
14-7 | 09181-50009 Деталь Shim, 50x62x1.6 ( ) | Деталь Shim, 50x62x1.6 ( ) | |
14-8 | 09181-50010 Деталь ( ) | Деталь ( ) | |
15-1 | 09181-75018 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-2 | 09181-75019 Деталь Shim (75x100x0.55) (fwd Gear ) | Деталь Shim (75x100x0.55) (fwd Gear ) | |
15-3 | 09181-75012 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-4 | 09181-75013 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-5 | 09181-75008 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-6 | 09181-75014 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-7 | 09181-75009 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-8 | 09181-75015 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-9 | 09181-75010 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-10 | 09181-75016 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
15-11 | 09181-75011 Деталь Shim, Forward Ge (fwd Gear ) | Деталь Shim, Forward Ge (fwd Gear ) | |
16 | 09269-75002 Деталь Bearing, Thrust ( ) | Деталь Bearing, Thrust ( ) | |
17 | 57610-93J00 Деталь Shaft Comp, Prop ( ) | Деталь Shaft Comp, Prop ( ) | |
18 | 57621-93J10 Деталь Shifter, Clutch ( ) | Деталь Shifter, Clutch ( ) | |
19 | 09202-08007 Деталь Pin ( ) | Деталь Pin ( ) | |
20 | 57631-93J00 Деталь Pin, Connector ( ) | Деталь Pin, Connector ( ) | |
21 | 09440-52003 Деталь Spring, Clutch D ( ) | Деталь Spring, Clutch D ( ) | |
22 | 09440-09040 Деталь Spring, Detent ( ) | Деталь Spring, Detent ( ) | |
23 | 06111-07004 Деталь Ball, Detent No.1 ( ) | Деталь Ball, Detent No.1 ( ) | |
24 | 06111-11004 Деталь Ball ( ) | Деталь Ball ( ) | |
25 | 09180-25082 Деталь Stopper ( ) | Деталь Stopper ( ) | |
26 | 56120-93J02-0EP Деталь Housing Comp, Pr ( ) | Деталь Housing Comp, Pr ( ) | |
27 | 09263-30023 Деталь .bearing ( ) | Деталь .bearing ( ) | |
28 | 09280-00040 Деталь O-ring, Prop(id: ( ) | Деталь O-ring, Prop(id: ( ) | |
29 | 09282-30006 Деталь Oil Seal 30x45x ( ) | Деталь Oil Seal 30x45x ( ) | |
30 | 09381-40003 Деталь .circlip ( ) | Деталь .circlip ( ) | |
31 | 56123-93J00 Деталь Protector, Oil S ( ) | Деталь Protector, Oil S ( ) | |
32 | 09387-45001 Деталь Set Ring (sus) ( ) | Деталь Set Ring (sus) ( ) | |
33 | 08113-60100 Деталь B1 50x80x16 Bea ( ) | Деталь B1 50x80x16 Bea ( ) | |
34 | 29116-93J10 Деталь Bolt (<-09116-08114 (8x35) ) | Деталь Bolt (<-09116-08114 (8x35) ) | |
35 | 56130-93J00 Деталь Housing Comp, Dr ( ) | Деталь Housing Comp, Dr ( ) | |
36 | 09280-66004 Деталь O-ring(id:65.4, ( ) | Деталь O-ring(id:65.4, ( ) | |
37 | 09282-24004 Деталь .oil Seal ( ) | Деталь .oil Seal ( ) | |
38 | 56140-93J00 Деталь Housing Comp, Fw ( ) | Деталь Housing Comp, Fw ( ) | |
39 | 04221-08129 Деталь .pin, Shift Cam Housing ( ) | Деталь .pin, Shift Cam Housing ( ) |
