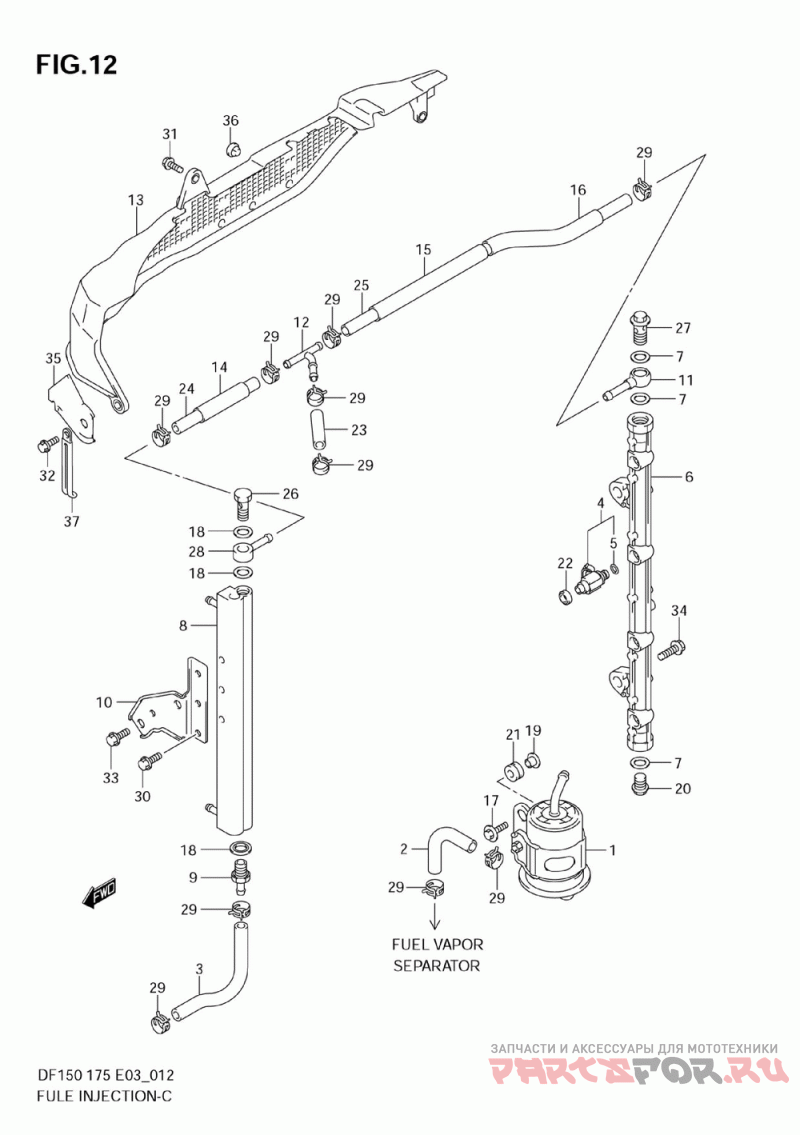

Топливная форсунка
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 15440-96J00 Filter Comp, Fue ( ) | Filter Comp, Fue ( ) | |
2 | 15681-96J20 Hose, Fuel(separ ( ) | Hose, Fuel(separ ( ) | |
3 | 15681-96J10 Hose, Fuel(coole ( ) | Hose, Fuel(coole ( ) | |
4 | 15710-96J00 Injector Assy, F ( ) | Injector Assy, F ( ) | |
5 | 15717-16G00 .o Ring ( ) | .o Ring ( ) | |
6 | 15751-96J00 Pipe, Delivery ( ) | Pipe, Delivery ( ) | |
7 | 15762-93J00 Gasket, Delivery ( ) | Gasket, Delivery ( ) | |
8 | 15770-96J00 Cooler Comp, Fue ( ) | Cooler Comp, Fue ( ) | |
9 | 15773-90J00 Union, Fuel Hose ( ) | Union, Fuel Hose ( ) | |
10 | 15790-96J00 Bracket Comp, Fu ( ) | Bracket Comp, Fu ( ) | |
11 | 15830-77EA0 Joint, Fuel Main ( ) | Joint, Fuel Main ( ) | |
12 | 15830-99E00 Union, 3 Way ( ) | Union, 3 Way ( ) | |
13 | 15851-96J00 Guard Comp, Fuel ( ) | Guard Comp, Fuel ( ) | |
14 | 18498-99E20 Protector, Fuel (l:450->70 ) | Protector, Fuel (l:450->70 ) | |
15 | 18498-93J00 Protector, Fuel (l:340->220 ) | Protector, Fuel (l:340->220 ) | |
17 | 09116-06202 Bolt (w/washer) ( ) | Bolt (w/washer) ( ) | |
18 | 09168-12013 Gasket ( ) | Gasket ( ) | |
19 | 09169-06062 Washer ( ) | Washer ( ) | |
20 | 09247-14041 Plug, Delivery P ( ) | Plug, Delivery P ( ) | |
21 | 09320-08501 Cushion ( ) | Cushion ( ) | |
22 | 09320-08062 Cushion ( ) | Cushion ( ) | |
23 | 09356-75137-600 Hose (separator To Filter) (l:600->50 ) | Hose (separator To Filter) (l:600->50 ) | |
26 | 09360-12008 Union ( ) | Union ( ) | |
27 | 09360-14009 Bolt, Delivery Pipe Union ( ) | Bolt, Delivery Pipe Union ( ) | |
28 | 09363-08004 Union, Fuel Filt ( ) | Union, Fuel Filt ( ) | |
29 | 09401-11425 Clip ( ) | Clip ( ) | |
30 | 01550-06127 Bolt ( ) | Bolt ( ) | |
32 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
33 | 01550-08167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
34 | 01550-08257 ..bolt, Upper ( ) | ..bolt, Upper ( ) | |
36 | 09321-08005 Cushion, Fuel Hose Guard ( ) | Cushion, Fuel Hose Guard ( ) | |
37 | 29404-93J20 Clamp (<-09404-06433 ) | Clamp (<-09404-06433 ) |
