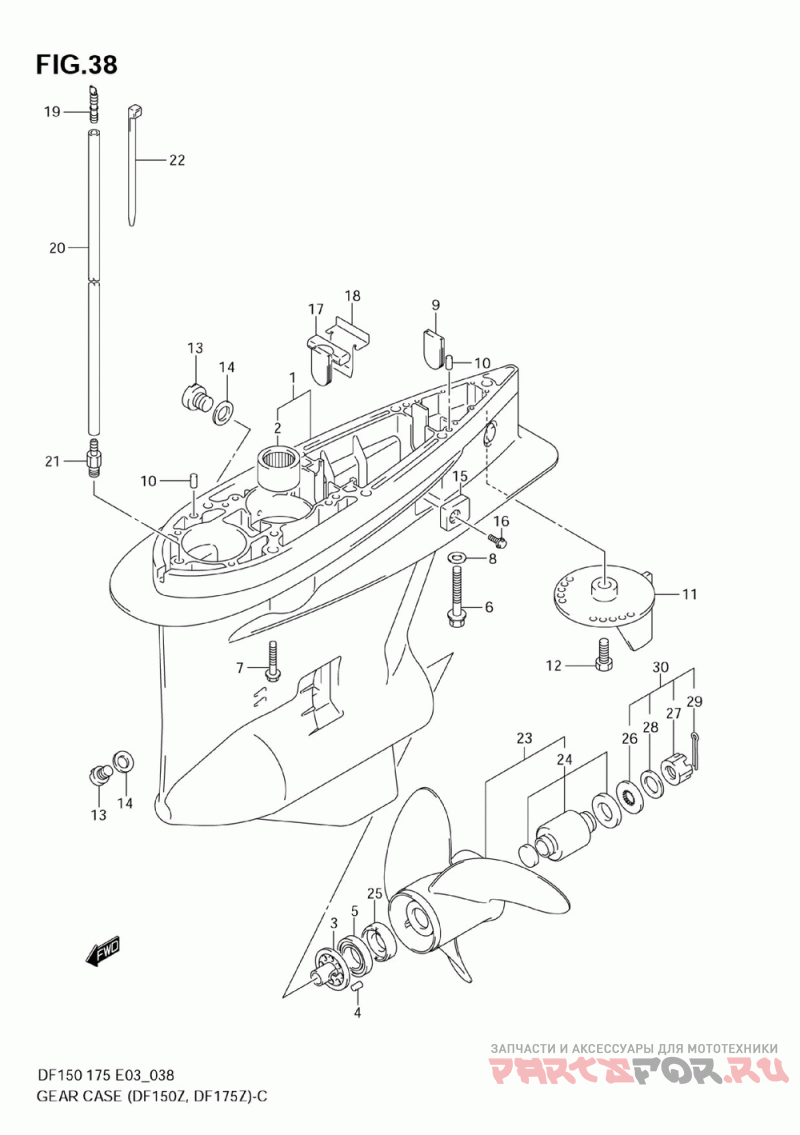

Редуктор (df150z,df175z)
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 55110-93J30-0EP Case Comp, Gear ( ) | Case Comp, Gear ( ) | |
2 | 09263-32017 .bearing, Pinion ( ) | .bearing, Pinion ( ) | |
3 | 56145-93J00 Housing, Shift C ( ) | Housing, Shift C ( ) | |
4 | 04221-08129 .pin, Shift Cam Housing ( ) | .pin, Shift Cam Housing ( ) | |
5 | 09265-50002 .bearing, Fwd Thrust ( (50x60x21.75) ) | .bearing, Fwd Thrust ( (50x60x21.75) ) | |
6 | 09100-12052 Bolt L:70(sus) ( ) | Bolt L:70(sus) ( ) | |
7 | 09116-10150 Bolt, 10x55 ( ) | Bolt, 10x55 ( ) | |
8 | 09160-12066 .washer (12.5x22x2.5) ( ) | .washer (12.5x22x2.5) ( ) | |
9 | 17566-87D11 Grommet ( ) | Grommet ( ) | |
10 | 09202-08006 Pin ( ) | Pin ( ) | |
11 | 55125-98J00-0EP Tab, Trim ( ) | Tab, Trim ( ) | |
12 | 09116-08137 Bolt, 8x22 (<-09116-08121 ) | Bolt, 8x22 (<-09116-08121 ) | |
13 | 55128-93J00 Plug, Drain ( ) | Plug, Drain ( ) | |
14 | 09168-10034 Gasket, Drain Pl ( (9.5x16.5x2) ) | Gasket, Drain Pl ( (9.5x16.5x2) ) | |
15 | 55320-95311 Zinc Set, Protec ( ) | Zinc Set, Protec ( ) | |
16 | 09116-06094 Bolt, 6x15 ( ) | Bolt, 6x15 ( ) | |
17 | 55332-87D11 Rubber, Exhaust ( ) | Rubber, Exhaust ( ) | |
18 | 55333-87D10 Plate, Exhaust S ( ) | Plate, Exhaust S ( ) | |
19 | 55127-87D00 Union, Speedomet ( ) | Union, Speedomet ( ) | |
20 | 09355-40805-00B Hose (l:2000->1700 ) | Hose (l:2000->1700 ) | |
21 | 09362-09008 Nipple ( ) | Nipple ( ) | |
22 | 09407-10404 .clamp ( ) | .clamp ( ) | |
23-1 | 99105-0080L-185 Sspropcrv63x16x (not For Us Market Counter Rotation ) | Sspropcrv63x16x (not For Us Market Counter Rotation ) | |
23-2 | 99105-0080L-20P Sspropcrv63x16x (not For Us Market Counter Rotation ) | Sspropcrv63x16x (not For Us Market Counter Rotation ) | |
23-3 | 99105-0080L-215 Sspropcrv63x16x (not For Us Market Counter Rotation ) | Sspropcrv63x16x (not For Us Market Counter Rotation ) | |
23-4 | 99105-0080L-23P Sspropcrv63x16x (not For Us Market Counter Rotation ) | Sspropcrv63x16x (not For Us Market Counter Rotation ) | |
23-5 | 99105-0080L-17P Sspropcrdfv63x1 (not For Us Market Counter Rotation ) | Sspropcrdfv63x1 (not For Us Market Counter Rotation ) | |
23-6 | 99105-0080L-245 Sspropcrv63x16x (not For Us Market Counter Rotation ) | Sspropcrv63x16x (not For Us Market Counter Rotation ) | |
24 | 58105-93J00 Bush Set, Propel ( ) | Bush Set, Propel ( ) | |
25 | 57632-93J10 Stopper, Propell ( ) | Stopper, Propell ( ) | |
26 | 57633-87D30 Spacer, Nut(t:6. ( ) | Spacer, Nut(t:6. ( ) | |
27 | 09141-18005 Nut ( ) | Nut ( ) | |
28 | 09160-18028 Washer (18.5x31x1.0) ( ) | Washer (18.5x31x1.0) ( ) | |
29 | 09204-03003 Cotter Pin (l:25) ( ) | Cotter Pin (l:25) ( ) | |
30 | 57630-92E00 Prop Hdwr V-6 M (opt ) | Prop Hdwr V-6 M (opt ) | |
31 | 25700-93J00 Lu Sealkit Df V (opt Not Shown ) | Lu Sealkit Df V (opt Not Shown ) |
