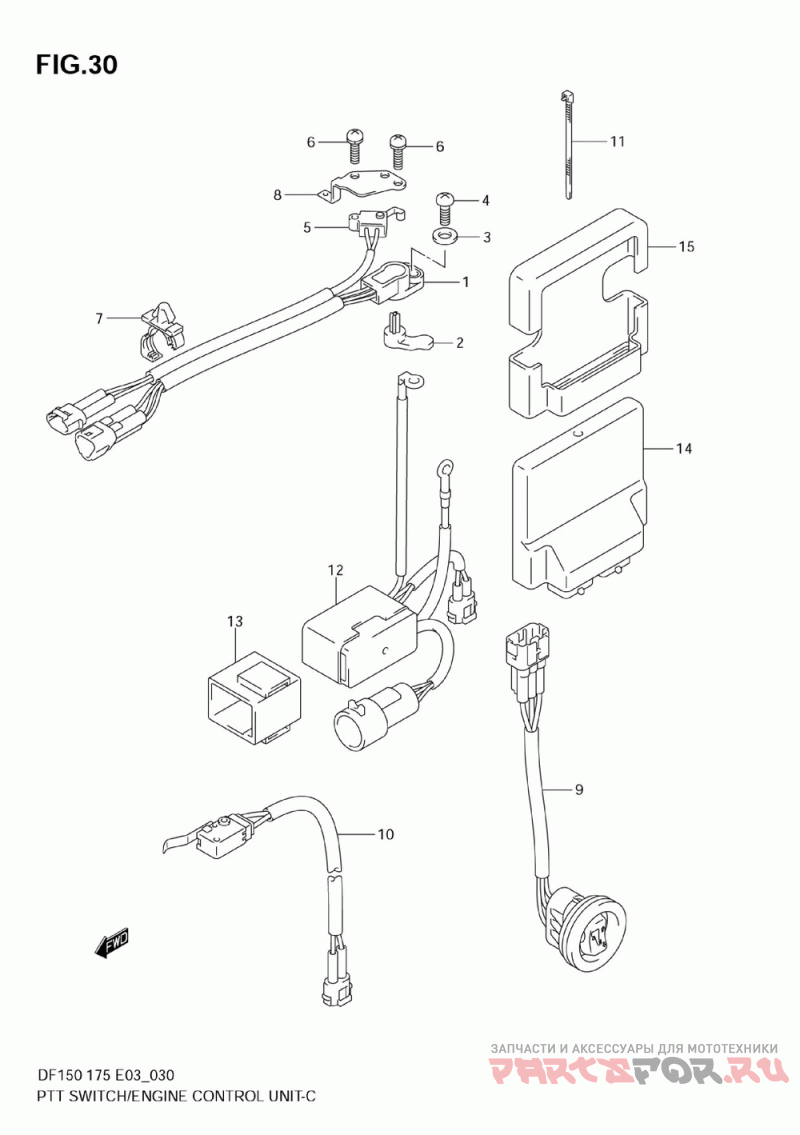

Переключатель и модуль контроля двигателя
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 13580-93J01 Sensor Assy, Shi ( ) | Sensor Assy, Shi ( ) | |
2 | 37729-93J00 Lever, Shift Sen ( ) | Lever, Shift Sen ( ) | |
3 | 09160-05029 .washer ( (5.5x10x0.8) ) | .washer ( (5.5x10x0.8) ) | |
4 | 02112-35167 Screw, Shift Position Sensor ( ) | Screw, Shift Position Sensor ( ) | |
5 | 37721-93J00 Switch Assy, Neu ( ) | Switch Assy, Neu ( ) | |
6 | 09137-04004 Screw, 4x16 ( ) | Screw, 4x16 ( ) | |
7 | 09403-12412 Clamp, Sw Lead W ( ) | Clamp, Sw Lead W ( ) | |
8 | 37725-96J00 Bracket, Switch ( ) | Bracket, Switch ( ) | |
9 | 37850-99E03 Switch Assy, Ptt ( ) | Switch Assy, Ptt ( ) | |
10 | 37722-93J11 Switch Assy, Til ( ) | Switch Assy, Til ( ) | |
11 | 09407-14407 .clamp, Harness (l:140) ( ) | .clamp, Harness (l:140) ( ) | |
12 | 38410-93J10 Relay Assy, Ptt ( ) | Relay Assy, Ptt ( ) | |
13 | 38415-93J00 Holder, Ptt Rela ( ) | Holder, Ptt Rela ( ) | |
14-1 | 33920-96J90 Unit, Engine Con (df150 ) | Unit, Engine Con (df150 ) | |
15 | 33925-93J00 Cushion, Engine ( ) | Cushion, Engine ( ) |
