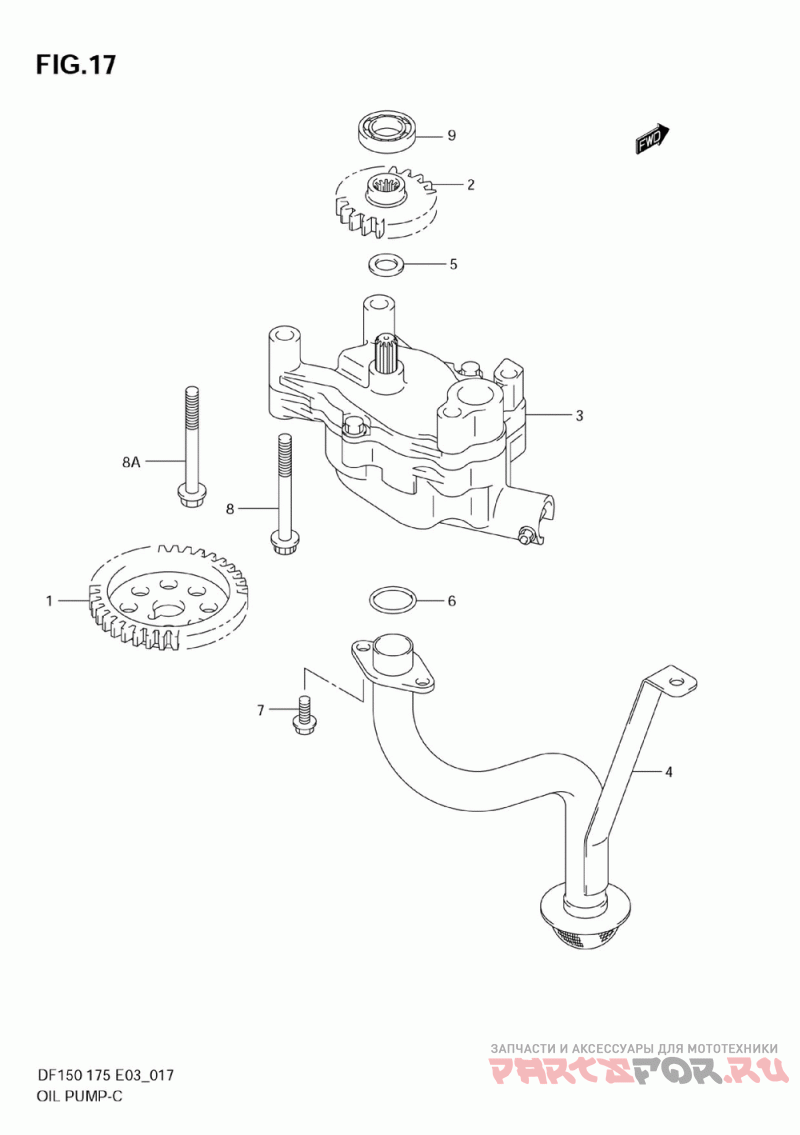

Масляный насос
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 12632-96J00 Gear, Oil Pump D ( ) | Gear, Oil Pump D ( ) | |
2 | 16113-96J00 Gear, Oil Pump D ( ) | Gear, Oil Pump D ( ) | |
3 | 16400-96J00 Pump Assy, Oil ( ) | Pump Assy, Oil ( ) | |
4-1 | 16520-96J00 Strainer Comp, O (->16520-96j01 Used With 16910-96j0 ) | Strainer Comp, O (->16520-96j01 Used With 16910-96j0 ) | |
4-2 | 16520-96J01 Strainer, Oil Pu (df150t:882207~ Df175z:880305~ ) | Strainer, Oil Pu (df150t:882207~ Df175z:880305~ ) | |
5 | 09181-12167 Washer, Oil Pump Driven Gear ( (12x20x1) ) | Washer, Oil Pump Driven Gear ( (12x20x1) ) | |
6 | 09280-22020 O Ring (d:2.4, Id:21.8) ( (id:21.8, Dd:2.4) ) | O Ring (d:2.4, Id:21.8) ( (id:21.8, Dd:2.4) ) | |
7 | 01550-0616A Bolt ( ) | Bolt ( ) | |
8 | 07120-0870A Bolt (df150t:~781593 Df175z:~780358 ) | Bolt (df150t:~781593 Df175z:~780358 ) | |
9 | 08110-60020 .bearing ( ) | .bearing ( ) |
