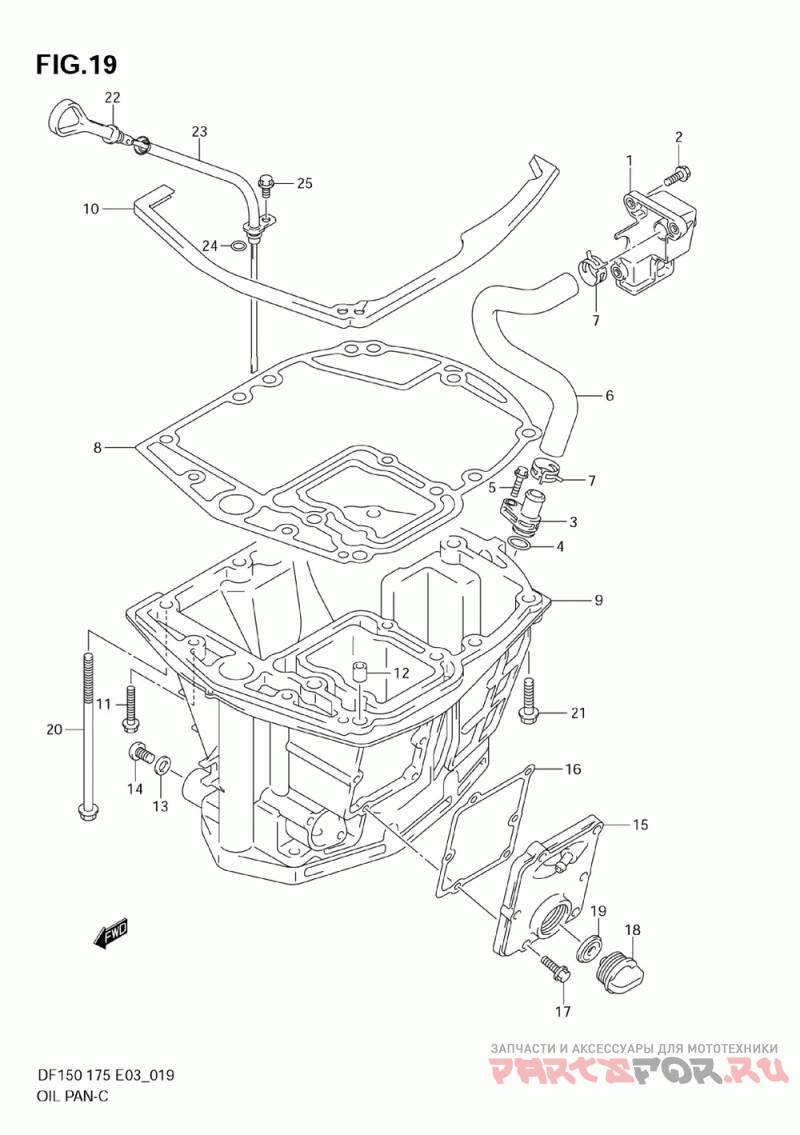

Маслянный поддон
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 11430-96J00 Деталь Pipe Comp, Exhau ( ) | Деталь Pipe Comp, Exhau ( ) | |
2-1 | 01550-06207 Деталь Bolt ( ) | Деталь Bolt ( ) | |
2-2 | 29116-93J00 Деталь Bolt (model:07~09 <-09116-06106 ) | Деталь Bolt (model:07~09 <-09116-06106 ) | |
3 | 11540-96J01 Деталь Pipe Comp, Exhau ( ) | Деталь Pipe Comp, Exhau ( ) | |
4 | 09280-16005 Деталь O Ring (d:2.4, Id:15.8) ( ) | Деталь O Ring (d:2.4, Id:15.8) ( ) | |
6 | 11543-96J00 Деталь Hose, Exhaust ( ) | Деталь Hose, Exhaust ( ) | |
7 | 09401-22407 Деталь Clip ( ) | Деталь Clip ( ) | |
8 | 11489-96J01 Деталь Gasket, Oil Pan ( ) | Деталь Gasket, Oil Pan ( ) | |
9 | 11501-96J01-0EP Деталь Pan, Oil(black) ( ) | Деталь Pan, Oil(black) ( ) | |
10 | 11544-96J00 Деталь Seal, Oil Pan Up ( ) | Деталь Seal, Oil Pan Up ( ) | |
11 | 09116-08128 Деталь Bolt, 8x40 ( ) | Деталь Bolt, 8x40 ( ) | |
12 | 09202-08006 Деталь Pin ( ) | Деталь Pin ( ) | |
13 | 09168-12012 Деталь Gasket ( (12.5x20x2.5) ) | Деталь Gasket ( (12.5x20x2.5) ) | |
14 | 09248-12009 Деталь Plug, Oil Drain ( ) | Деталь Plug, Oil Drain ( ) | |
15 | 11550-96J00-0EP Деталь Cover Comp, Wtr ( ) | Деталь Cover Comp, Wtr ( ) | |
16 | 11552-96J00 Деталь Gasket, Oil Pan ( ) | Деталь Gasket, Oil Pan ( ) | |
17 | 29103-93J10 Деталь Bolt (<-09103-06093 ) | Деталь Bolt (<-09103-06093 ) | |
18 | 17913-93J00 Деталь Plug, Water ( ) | Деталь Plug, Water ( ) | |
19 | 17914-93J00 Деталь Gasket, Water Pl ( ) | Деталь Gasket, Water Pl ( ) | |
20 | 09116-10138 Деталь Bolt, Eng Set No ( ) | Деталь Bolt, Eng Set No ( ) | |
21 | 09116-10139 Деталь Bolt, Drive Shaf ( ) | Деталь Bolt, Drive Shaf ( ) | |
22-1 | 16910-96J00 Деталь Gauge Comp, Oil (->16910-96j01 ) | Деталь Gauge Comp, Oil (->16910-96j01 ) | |
22-2 | 16910-96J01 Деталь Gauge Comp, Oil (df150t:882207~ Df175z:880305~ ) | Деталь Gauge Comp, Oil (df150t:882207~ Df175z:880305~ ) | |
23 | 16930-96J00 Деталь Guide Comp, Oil ( ) | Деталь Guide Comp, Oil ( ) | |
24 | 09280-09008 Деталь O Ring (id:8.8, Dd:2.1) ( ) | Деталь O Ring (id:8.8, Dd:2.1) ( ) | |
25 | 01550-06127 Деталь Bolt ( ) | Деталь Bolt ( ) |
