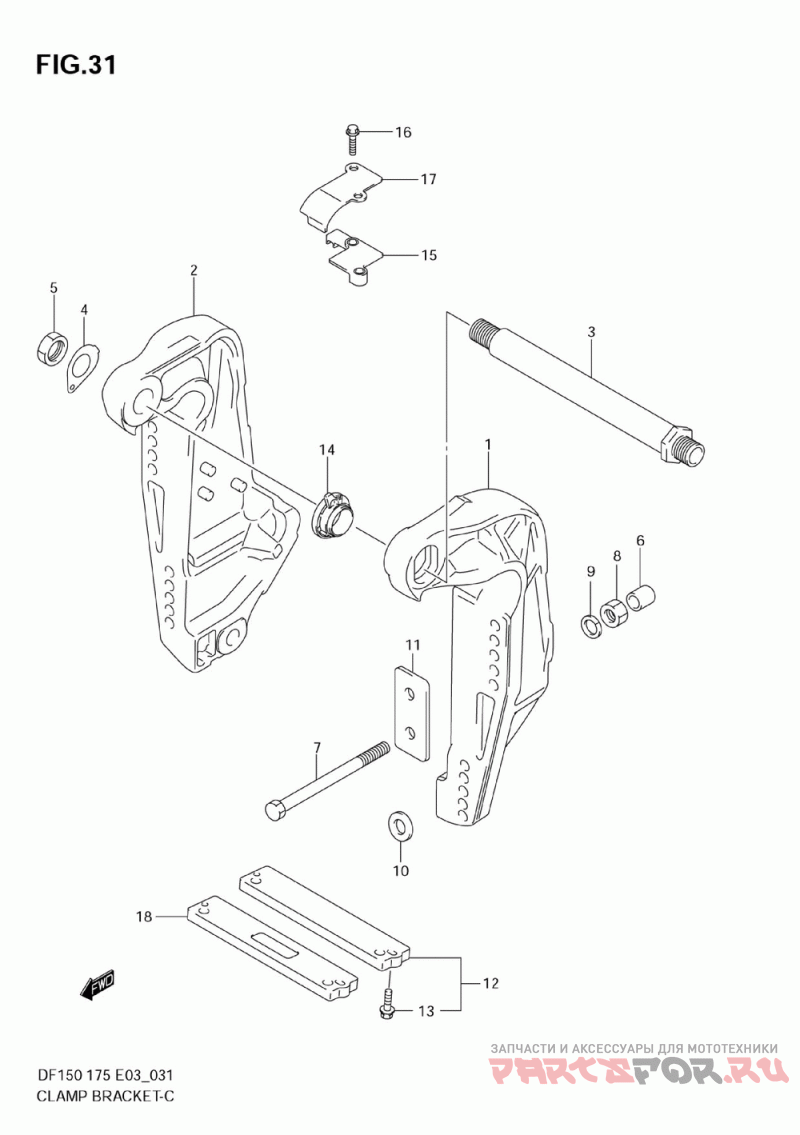

Кронштейн транца
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 41111-96J00-0EP Bracket, Clamp S ( ) | Bracket, Clamp S ( ) | |
1-2 | 41111-96J10-0EP Bracket, Clamp S (df150t:882207~ Df175z:880305~ ) | Bracket, Clamp S (df150t:882207~ Df175z:880305~ ) | |
2-1 | 41121-96J00-0EP Bracket, Clamp P ( ) | Bracket, Clamp P ( ) | |
2-2 | 41121-96J10-0EP Bracket, Clamp P (df150t:882207~ Df175z:880305~ ) | Bracket, Clamp P (df150t:882207~ Df175z:880305~ ) | |
3 | 41130-92J00 Shaft Comp, Clam ( ) | Shaft Comp, Clam ( ) | |
4 | 41135-92J00 Washer, Clamp B ( ) | Washer, Clamp B ( ) | |
5 | 09159-22006 Nut ( ) | Nut ( ) | |
6 | 41153-93J00 Cap ( ) | Cap ( ) | |
7-1 | 09100-12086 Bolt, Transom ( ) | Bolt, Transom ( ) | |
7-2 | 09100-12085 Bolt, 115mm Long (opt ) | Bolt, 115mm Long (opt ) | |
7-3 | 09100-12092 Bolt, Transom (opt ) | Bolt, Transom (opt ) | |
8 | 09159-12062 Nut ( ) | Nut ( ) | |
9 | 09160-13016 Washer, Transom ( (13.2x26x3) ) | Washer, Transom ( (13.2x26x3) ) | |
10 | 09160-13017 Washer, Transom ( (13.2x45x5) ) | Washer, Transom ( (13.2x45x5) ) | |
11 | 41155-93J01 Plate, Transom ( ) | Plate, Transom ( ) | |
12 | 55320-94900 Anode Set ( ) | Anode Set ( ) | |
13 | 09116-06121 .bolt (6x25) ( ) | .bolt (6x25) ( ) | |
14 | 48140-93J00 Cam Assy, Tilt L ( ) | Cam Assy, Tilt L ( ) | |
15 | 48144-93J00 Holder, Tilt Lim ( ) | Holder, Tilt Lim ( ) | |
16 | 09103-06278 Bolt (6x25) ( (6x25) ) | Bolt (6x25) ( (6x25) ) | |
17 | 48145-93J00 Cover, Tilt Limi ( ) | Cover, Tilt Limi ( ) | |
18 | 55321-94910 Magniesium Anod (opt ) | Magniesium Anod (opt ) |
