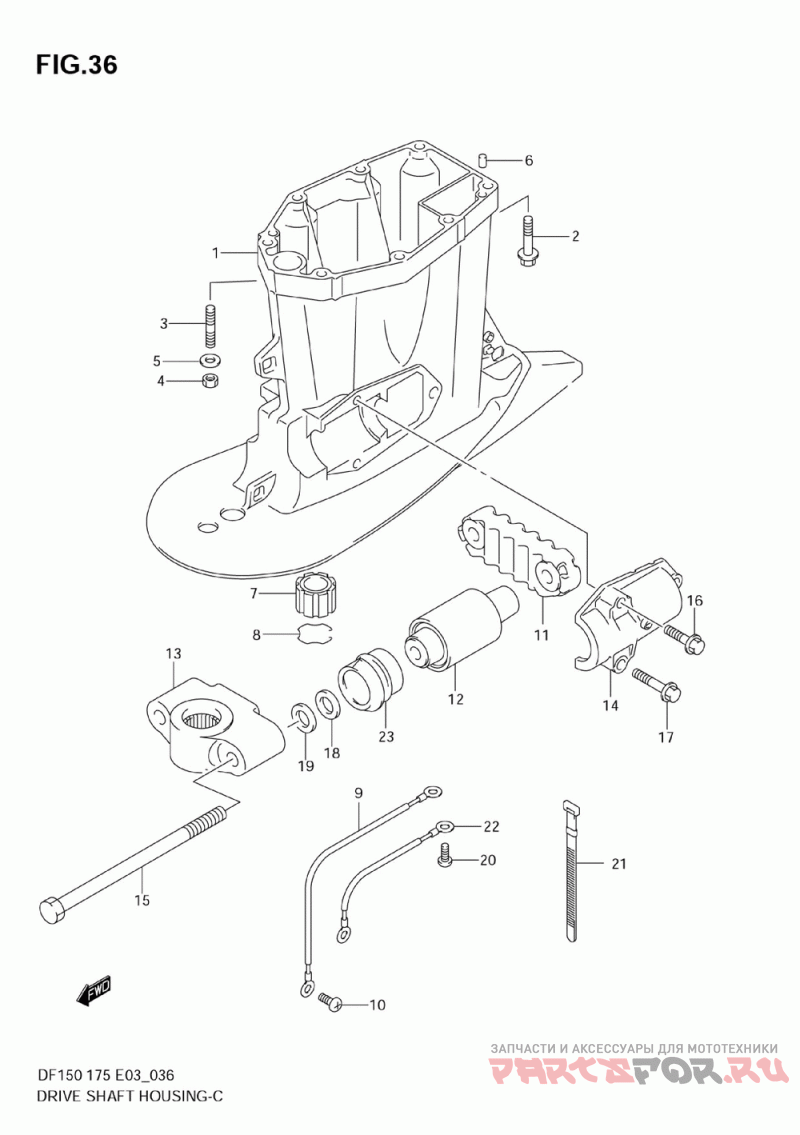

Корпус ведущего вала (нога)
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 52111-96J00-0EP Деталь Housing, Drive S ( ) | Деталь Housing, Drive S ( ) | |
1-2 | 52111-96J10-0EP Деталь Housing, Drive S ( ) | Деталь Housing, Drive S ( ) | |
2-1 | 09116-10139 Деталь Bolt, Drive Shaf (type:l ) | Деталь Bolt, Drive Shaf (type:l ) | |
3 | 09108-10150 Деталь Bolt, Drive Shaft Hsg Stud (type:l ) | Деталь Bolt, Drive Shaft Hsg Stud (type:l ) | |
4 | 29141-93J20 Деталь Nut (type:l <-09140-10031 ) | Деталь Nut (type:l <-09140-10031 ) | |
5 | 09160-10141 Деталь Washer (10.5x19x2) (type:l (10.5x19x2) ) | Деталь Washer (10.5x19x2) (type:l (10.5x19x2) ) | |
6 | 09202-08006 Деталь Pin ( ) | Деталь Pin ( ) | |
7 | 57130-87D10 Деталь Bush, Drive Shaf (type:x ) | Деталь Bush, Drive Shaf (type:x ) | |
8 | 09387-38002 Деталь Ring, Drive Shaft Bush Snap (type:x ) | Деталь Ring, Drive Shaft Bush Snap (type:x ) | |
9 | 36895-87D10 Деталь Lead Swivel ( ) | Деталь Lead Swivel ( ) | |
10 | 09125-06063 Деталь Screw (6x10) ( (6x10) ) | Деталь Screw (6x10) ( (6x10) ) | |
11 | 54151-96J01 Деталь Mount, Lower Thr ( ) | Деталь Mount, Lower Thr ( ) | |
12 | 54160-96J01 Деталь Mount Comp, Lowe ( ) | Деталь Mount Comp, Lowe ( ) | |
13-2 | 54211-96J01 Деталь Bracket, Lower M (df150:681545~ Df175:681213~ ) | Деталь Bracket, Lower M (df150:681545~ Df175:681213~ ) | |
14 | 54221-96J00-0EP Деталь Cover, Lower Mou ( ) | Деталь Cover, Lower Mou ( ) | |
15 | 09100-14004 Деталь Bolt, Upper Moun ( ) | Деталь Bolt, Upper Moun ( ) | |
16 | 09116-10131 Деталь Bolt (10x35) ( ) | Деталь Bolt (10x35) ( ) | |
17 | 09116-10136 Деталь Bolt, Oil Pan No ( ) | Деталь Bolt, Oil Pan No ( ) | |
18 | 09160-16050 Деталь Washer, Lower Mo ( (16x32x3) ) | Деталь Washer, Lower Mo ( (16x32x3) ) | |
21 | 09407-10404 Деталь .clamp ( ) | Деталь .clamp ( ) | |
22 | 36894-87D00 Деталь Lead, Clamp To S ( ) | Деталь Lead, Clamp To S ( ) | |
23 | 54167-96J00 Деталь Mount, Lower Sid ( ) | Деталь Mount, Lower Sid ( ) |
